SPRO IP Turret Dome Camera With Colour Night (Built-In Mic)

Continue shopping

Go to Basket

SPRO IP Turret Dome Camera With Colour Night (Built-In Mic)

Name: SPRO IP Turret Dome Camera With Colour Night (Built-In Mic)
Brand: Spro
SKU: FDS007/231
Price: 80.64 GBP
Availability: InStock

Code: FDS007/231

from

£80.64

INC VAT

Code: FDS007/231

In stock

Resolution Colour

4MP, 6MP and 8MP resolution options

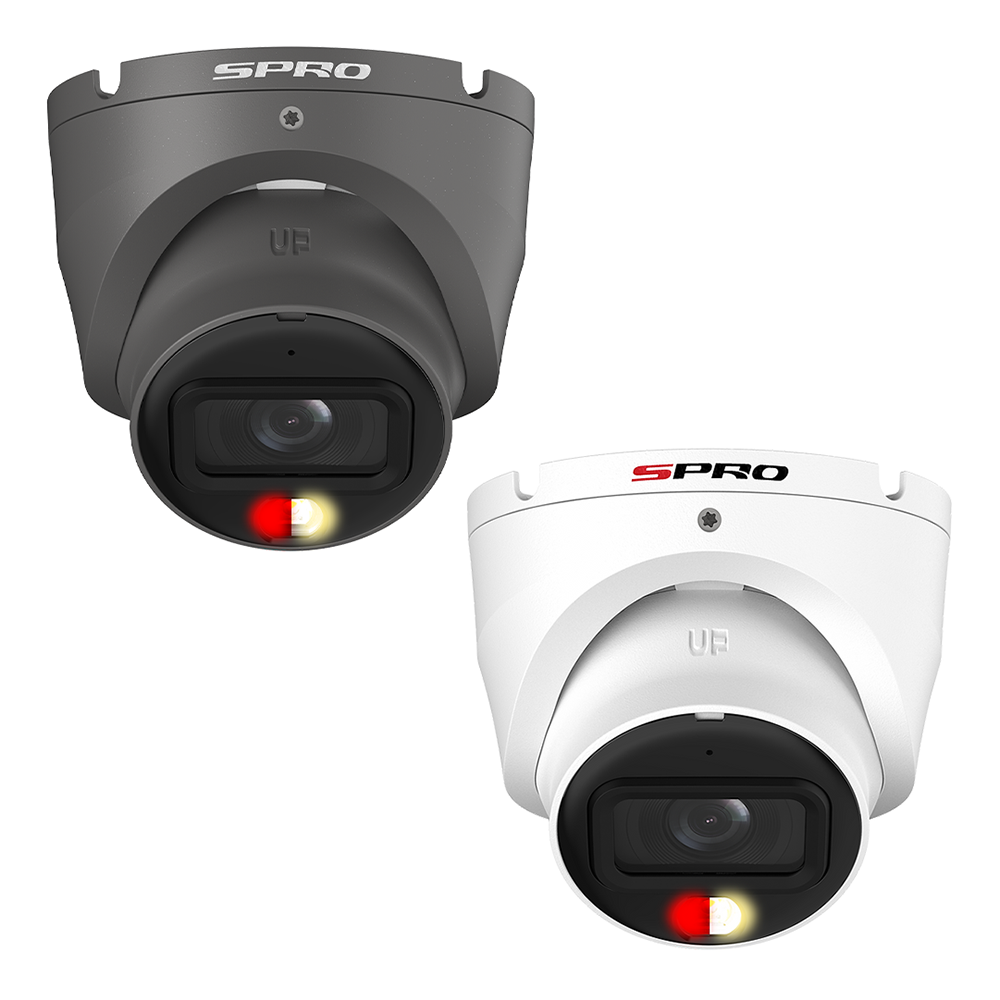

White & grey colour options
ColourNight 2.0 Smart Dual Illumination

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

The SPRO IP Turret Dome Camera With Colour Night and Built-In Microphone provides high-resolution IP surveillance with a choice of 4MP, 6MP or 8MP resolution and colour options available.

Designed around ColourNight 2.0 Smart Dual Illumination, the camera combines infrared and warm light to support clear monitoring in changing light conditions.

All variants use a 2.8mm fixed-focal F1.6 lens and feature integrated multi-core illumination with up to 30 metres of infrared and 30 metres of warm light coverage.

Smart Dual Light allows the camera to make use of infrared or warm illumination according to the configured monitoring requirements, helping provide useful detail after dark.

Resolution can be selected to suit the application, from 4MP at up to 2560 × 1440 through to the 8MP model, which provides up to 3840 × 2160 resolution. The 6MP and 8MP versions also support 2688 × 1520 at up to 25/30fps.

A built-in microphone enables audio capture without requiring a separate microphone. Human detection is supported across the range, while compatible smart NVRs can provide refined intelligent search, event extraction and event video merging.

H.265, H.264, Smart H.265+ and Smart H.264+ compression help manage bandwidth and storage requirements. Image processing functions include 3D noise reduction, BLC, HLC, ROI, privacy masking and Smart Illumination. Each camera uses a metal IP67-rated housing and supports both 12V DC and PoE (802.3af) power, making the range suitable for indoor and outdoor IP CCTV installations.

4MP, 6MP and 8MP resolution options
White & grey colour options
ColourNight 2.0 Smart Dual Illumination
2.8mm fixed-focal F1.6 lens
Up to 30m infrared illumination
Up to 30m warm light illumination
Built-in microphone for audio capture
Human detection with smart NVR search support
Smart H.265+ and Smart H.264+ compression
IP67 metal housing with 12V DC or PoE power

Specification	Details
Model	4MP: DHIPD40/28LRG-M-E / DHIPD40/28LRW-M-E; 6MP: DHIPD60/28LRW-M-E; 8MP: DHIPD80/28LRW-M-E
Megapixel Options	4MP; 6MP; 8MP
Colour Options	Grey; White
Image Sensor	4MP: 1/2.9" CMOS; 6MP: 1/2.7" CMOS; 8MP: 1/2.7" CMOS
Maximum Resolution	4MP: 2560 × 1440; 6MP: 3200 × 1800; 8MP: 3840 × 2160
Maximum Frame Rate	4MP: 2560 × 1440 at 25fps; 6MP: 3200 × 1800 at 20fps, 2688 × 1520 at 25/30fps; 8MP: 3840 × 2160 at 20fps, 2688 × 1520 at 25/30fps
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3s–1/100,000s
Minimum Illumination	4MP: 0.06 [email protected] Colour, 0.006 [email protected] B/W; 6MP: 0.007 [email protected] Colour, 0.0007 [email protected] B/W; 8MP: 0.008 [email protected] Colour, 0.0008 [email protected] B/W; all models: 0 lux with illuminator on
S/N Ratio	>56dB
IR Illumination Distance	Up to 30m (98.43ft)
Warm Light Distance	Up to 30m (98.43ft)
Illuminator	1 × Multi-core IR + warm light
Illuminator Control	Auto; Manual
Lens Type	Fixed-focal
Lens Mount	M12
Focal Length	2.8mm
Maximum Aperture	F1.6
Field Of View	4MP: H 94°, V 51°, D 110°; 6MP: H 110°, V 58°, D 132°; 8MP: H 110°, V 58°, D 132°
Close Focus Distance	4MP: 1.1m (3.61ft); 6MP: 1.1m (3.61ft); 8MP: 1.5m (4.92ft)
Pan Adjustment	0°–360°
Tilt Adjustment	0°–78°
Rotation Adjustment	0°–360°
Human Detection	Supported
Smart Search	Supports refined intelligent search, event extraction and event video merging with compatible smart NVR
Video Compression	H.265; H.264; H.264H; H.264B; MJPEG on sub stream
Smart Codec	Smart H.265+; Smart H.264+
Stream Capability	2 streams
Bit Rate Control	CBR; VBR
Video Bit Rate	4MP: H.264 32–4096kbps, H.265 12–4096kbps; 6MP/8MP: H.264 32–8192kbps, H.265 12–8192kbps
Day/Night	Auto (ICR); Colour; B/W
BLC	Yes
HLC	Yes
WDR	4MP: 120dB; 6MP: DWDR; 8MP: DWDR
Noise Reduction	3D NR
Motion Detection	On/Off, 4 rectangular areas
Region Of Interest	4 areas
Smart Illumination	Yes
Smart Dual Light	Yes
Mirror	Yes
Privacy Masking	4 areas
Built-In Microphone	Yes
Audio Compression	G.711a; G.711Mu; PCM; G.726
Network Port	RJ-45, 10/100 Base-T
Interoperability	ONVIF Profile S & Profile T; CGI
Management Software	Smart PSS Lite; DMSS
Mobile Client	iOS; Android
Power Supply	12V DC / PoE (802.3af)
Maximum Power Consumption	4MP: 3.7W at 12V DC / 4.7W PoE; 6MP: 4W at 12V DC / 5.3W PoE; 8MP: 4.5W at 12V DC / 5.8W PoE
Operating Temperature	4MP/6MP: -40°C to +60°C (-40°F to +140°F); 8MP: -40°C to +55°C (-40°F to +131°F)
Operating Humidity	≤95% RH, non-condensing
Protection	IP67
Casing Material	Metal
Dimensions	85.6mm × Φ94.0mm (3.37" × Φ3.7")
Net Weight	4MP: 0.25kg (0.55lb); 6MP: 0.34kg (0.75lb); 8MP: 0.35kg (0.77lb)
Certifications	CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

4MP Turret Dome Camera Datasheet	Click here to download
6MP Turret Dome Camera Datasheet	Click here to download
8MP Turret Dome Camera Datasheet	Click here to download
