SPRO CCTV 16 Channel 16MP NVR

Name: SPRO CCTV 16 Channel 16MP NVR
Brand: Spro
SKU: FDS007/204
Price: 603.12 GBP
Availability: InStock

Code: FDS007/213

from

£380.28

INC VAT

Code: FDS007/213

In stock

Capacity

DHIPNVR16-A7
Records and manages up to 16 IP camera channels
16 built-in PoE ports with a total PoE power budget of 130 W

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

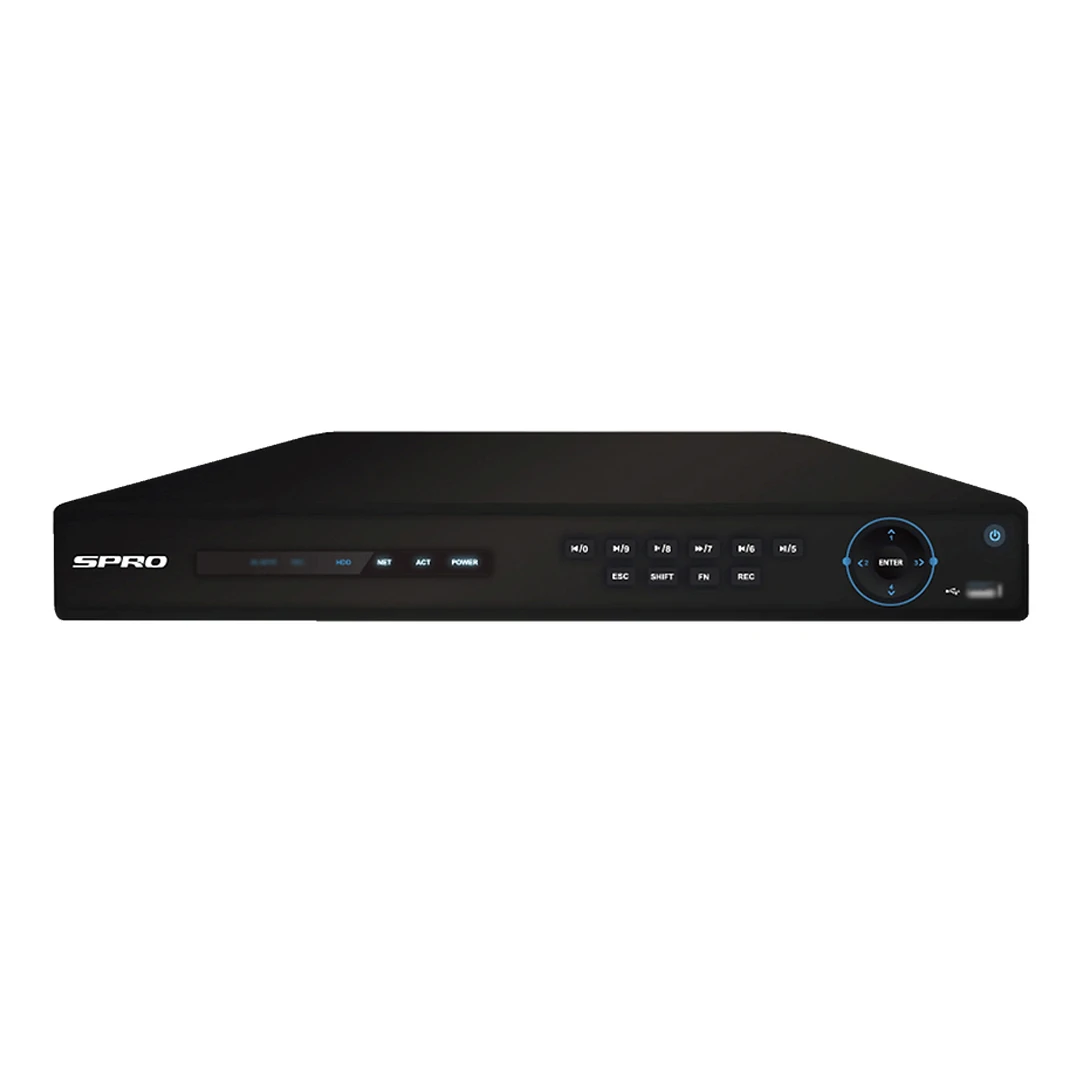

The SPRO DHIPNVR16-A7 16 Channel 4K IP NVR records and manages footage from up to 16 IP cameras. Sixteen built-in PoE ports provide network connections and power for compatible cameras, reducing the need for separate PoE switches in a straightforward CCTV installation.

The recorder supports live viewing and recording at resolutions up to 16 MP, with HDMI output up to 4K and a separate VGA output. Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG video compression options give flexibility when configuring footage quality and storage use. Two SATA ports support local hard drive storage, while recordings can be backed up over the network or to a USB device.

Built-in AI functions include face detection, face recognition, perimeter protection and SMD Plus. SMD Plus filters events involving people and motor vehicles to help reduce alerts caused by changes such as rain, leaves or lighting. The NVR also supports AI functions supplied by connected cameras, with capabilities depending on the camera and the number of channels in use.

Footage can be viewed locally, through a web interface or on iOS and Android devices. ONVIF support provides an option for connecting compatible third-party IP cameras. With 16-channel playback and a choice of general, event, tag and smart playback modes, the recorder is suited to commercial CCTV systems that need centralised recording and review.

DHIPNVR16-A7
Records and manages up to 16 IP camera channels
16 built-in PoE ports with a total PoE power budget of 130 W
Supports live viewing and recording at up to 16 MP
HDMI output supports resolutions up to 3840 × 2160
Built-in face detection, face recognition, perimeter protection and SMD Plus
Up to 256 Mbps incoming bandwidth with AI disabled
Two SATA ports for local storage
Supports ONVIF third-party camera access

Specification	Details
Model	DHIPNVR16-A7
Camera Channels	16
Main Processor	Industrial-grade processor
Operating System	Embedded Linux
Operating Interface	Web; local GUI
Supported Resolutions	16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF
Network Bandwidth	AI disabled: 256 Mbps incoming, recording and outgoing; AI enabled: 180 Mbps incoming, recording and outgoing
AI by Recorder	Face detection; face recognition; perimeter protection; SMD Plus
AI by Camera	Face detection; face recognition; perimeter protection; SMD Plus; stereo analysis; people counting; ANPR; heat map
Perimeter Protection	Recorder: 2 channels, 10 IVS rules per channel; camera: 8 channels
Face Detection	Recorder: 1 channel, up to 12 face images/s; camera: 8 channels
Face Recognition	Recorder: up to 8 channels using camera face detection, or 1 channel using recorder face detection; camera: 8 channels
Face Database	Up to 10 databases and 20,000 images; 2.5 GB total capacity
SMD Plus	Recorder: 4 channels; camera: 8 channels
ANPR by Camera	4 channels
Video Compression	Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression	G.711a; G.711u; PCM; G726
Video Outputs	1 HDMI; 1 VGA
HDMI Resolutions	3840 × 2160; 1920 × 1080; 1280 × 1024; 1280 × 720
VGA Resolutions	1920 × 1080; 1280 × 1024; 1280 × 720
Multi-channel Playback	Up to 16 channels
Recording Modes	General; motion detection; intelligent; alarm
Playback Modes	Instant; general; event; tag; smart
Backup Methods	USB device; network
Third-party Camera Access	ONVIF
Interoperability	ONVIF 22.06 Profiles T, S and G; CGI; SDK
Mobile Access	iOS; Android
HDD Interface	2 SATA ports, up to 16 TB; maximum HDD capacity varies with ambient temperature

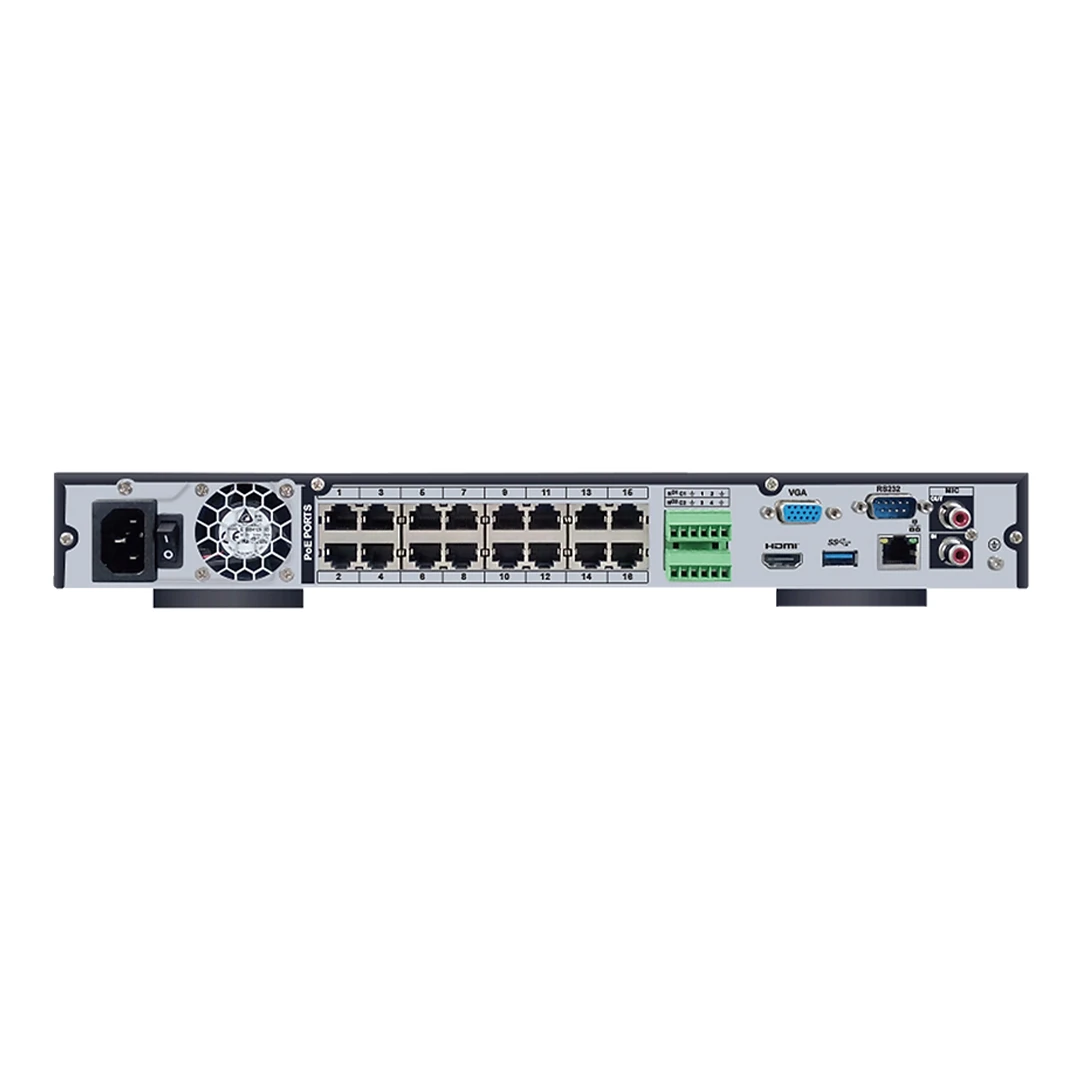

PoE Ports	16 × 10/100 Mbps, IEEE 802.3af/at
PoE Power Budget	130 W total; 25.5 W maximum per port
Network Port	1 × 10/100/1000 Mbps RJ-45 Ethernet
USB Ports	2 × USB 2.0, one front and one rear
Audio Input / Output	1 × RCA input; 1 × RCA output
Alarm Input / Output	4 inputs; 2 outputs
RS-232	1
Power Supply	100–240 V AC, 47–63 Hz
NVR Power Consumption	Less than 10 W without HDD
Operating Temperature	−10°C to +55°C (14°F to +131°F)
Storage Temperature	−20°C to +60°C (−4°F to +140°F)
Operating Humidity	10–93% RH
Dimensions	375.0 × 329.3 × 53.0 mm (14.76 × 12.96 × 2.09 in)
Net Weight	2.60 kg (5.73 lb)
Installation	Desktop

Datasheet

Click here to download

Overview

Features

Technical Data

Specification	Details
Model	DHIPNVR16-A7
Camera Channels	16
Main Processor	Industrial-grade processor
Operating System	Embedded Linux
Operating Interface	Web; local GUI
Supported Resolutions	16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF
Network Bandwidth	AI disabled: 256 Mbps incoming, recording and outgoing; AI enabled: 180 Mbps incoming, recording and outgoing
AI by Recorder	Face detection; face recognition; perimeter protection; SMD Plus
AI by Camera	Face detection; face recognition; perimeter protection; SMD Plus; stereo analysis; people counting; ANPR; heat map
Perimeter Protection	Recorder: 2 channels, 10 IVS rules per channel; camera: 8 channels
Face Detection	Recorder: 1 channel, up to 12 face images/s; camera: 8 channels
Face Recognition	Recorder: up to 8 channels using camera face detection, or 1 channel using recorder face detection; camera: 8 channels
Face Database	Up to 10 databases and 20,000 images; 2.5 GB total capacity
SMD Plus	Recorder: 4 channels; camera: 8 channels
ANPR by Camera	4 channels
Video Compression	Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression	G.711a; G.711u; PCM; G726
Video Outputs	1 HDMI; 1 VGA
HDMI Resolutions	3840 × 2160; 1920 × 1080; 1280 × 1024; 1280 × 720
VGA Resolutions	1920 × 1080; 1280 × 1024; 1280 × 720
Multi-channel Playback	Up to 16 channels
Recording Modes	General; motion detection; intelligent; alarm
Playback Modes	Instant; general; event; tag; smart
Backup Methods	USB device; network
Third-party Camera Access	ONVIF
Interoperability	ONVIF 22.06 Profiles T, S and G; CGI; SDK
Mobile Access	iOS; Android
HDD Interface	2 SATA ports, up to 16 TB; maximum HDD capacity varies with ambient temperature
PoE Ports	16 × 10/100 Mbps, IEEE 802.3af/at
PoE Power Budget	130 W total; 25.5 W maximum per port
Network Port	1 × 10/100/1000 Mbps RJ-45 Ethernet
USB Ports	2 × USB 2.0, one front and one rear
Audio Input / Output	1 × RCA input; 1 × RCA output
Alarm Input / Output	4 inputs; 2 outputs
RS-232	1
Power Supply	100–240 V AC, 47–63 Hz
NVR Power Consumption	Less than 10 W without HDD
Operating Temperature	−10°C to +55°C (14°F to +131°F)
Storage Temperature	−20°C to +60°C (−4°F to +140°F)
Operating Humidity	10–93% RH
Dimensions	375.0 × 329.3 × 53.0 mm (14.76 × 12.96 × 2.09 in)
Net Weight	2.60 kg (5.73 lb)
Installation	Desktop

Downloads & Resources

SPRO CCTV 16 Channel 16MP NVR

SPRO CCTV 4 Channel 12MP NVR

SPRO CCTV 8 Channel 12MP NVR

SPRO IP Turret Active Deterrence Lite With Colour Night (Built-In Mic & Speaker)

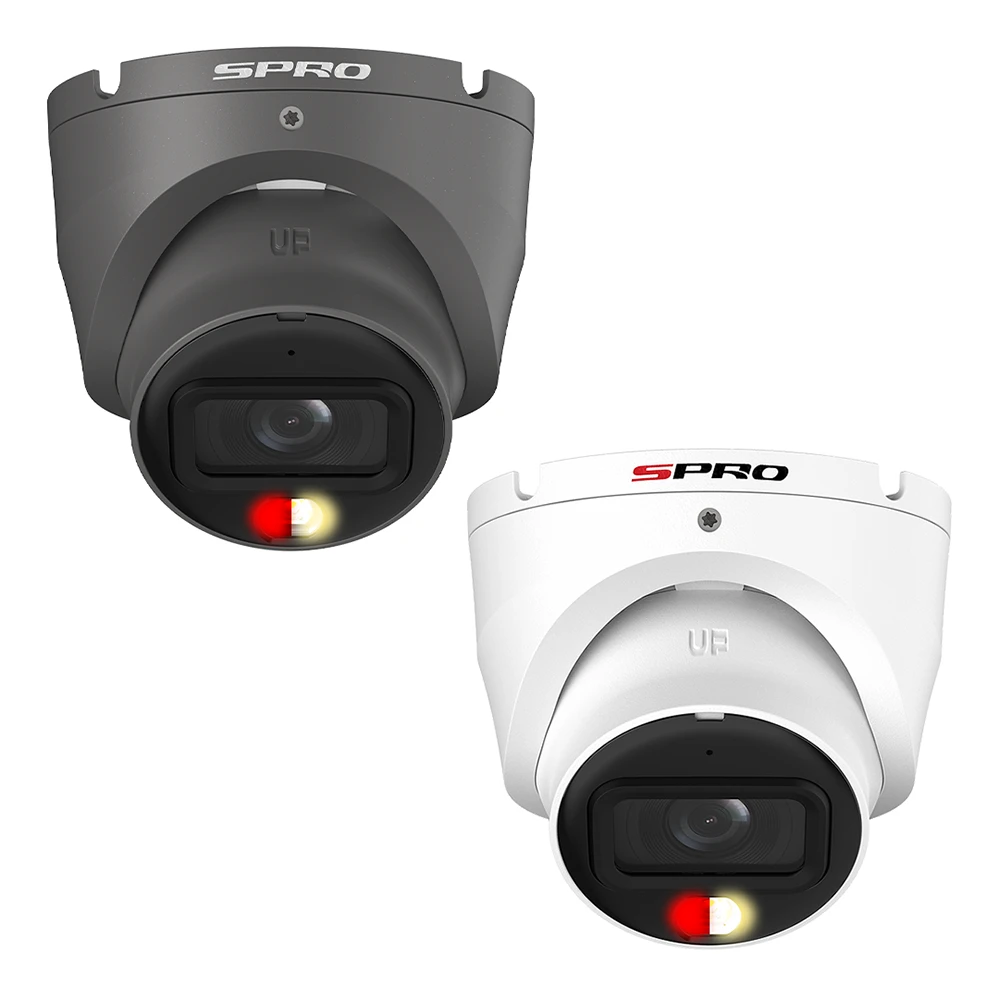

SPRO IP Turret Dome Camera With Colour Night (Built-In Mic)
