SPRO CCTV 8 Channel 12MP NVR

Name: SPRO CCTV 8 Channel 12MP NVR
Brand: Spro
SKU: FDS007/223
Price: 1308.7199999999998 GBP
Availability: InStock

Code: FDS007/229

from

£228.48

INC VAT

Code: FDS007/229

In stock

Capacity

DHIPNVR08-A5
8 channel IP video input with 8 built-in PoE ports
Supports recording resolutions up to 12MP

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

The SPRO DHIPNVR08-A5 is an 8 channel 12MP NVR designed for IP CCTV systems requiring high-resolution recording, integrated PoE connectivity and intelligent video analytics.

Eight built-in PoE ports allow compatible IP cameras to connect directly to the recorder, with each port supporting up to 25.5W and a total PoE power output of 72W.

Built-in AI capabilities include face detection and recognition, perimeter protection and SMD Plus. The recorder supports one channel of face detection and recognition using NVR-based AI, with capacity for up to 10 face databases containing 5,000 images. Camera-based AI functionality can also be used where supported.

Recording resolutions up to 12MP are supported, while HDMI output provides a maximum display resolution of 4K. When AI functions are disabled, decoding capability includes up to six 1080p channels at 25fps, with additional decoding options available for 4MP, 5MP, 8MP and 12MP video. Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG compression formats provide broad encoding support.

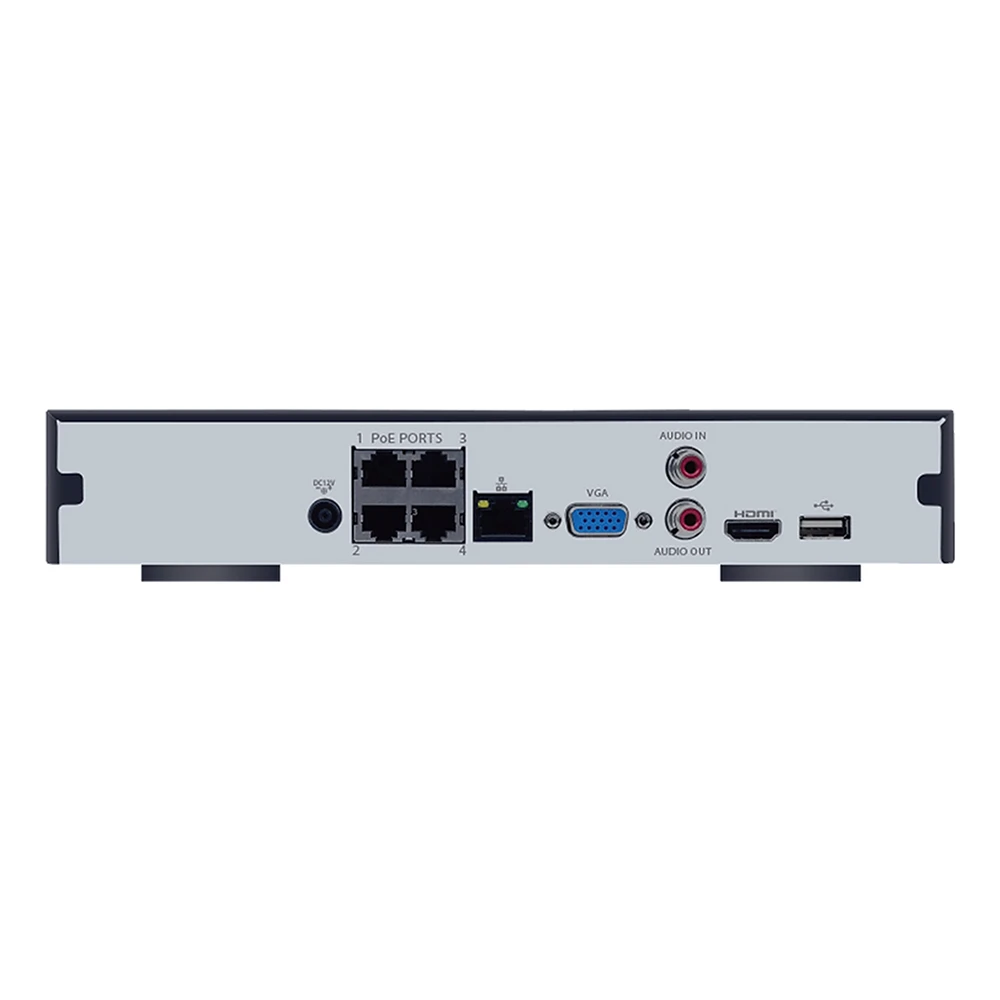

A single SATA interface accommodates an HDD of up to 10TB, while recording can be backed up through USB. HDMI and VGA outputs are provided alongside RCA audio input and output. Network connectivity includes a Gigabit RJ-45 port, with ONVIF Profile T, S and G interoperability supported for compatible third-party cameras.

DHIPNVR08-A5
8 channel IP video input with 8 built-in PoE ports
Supports recording resolutions up to 12MP
HDMI output with maximum 4K resolution
Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG compression
Face detection, face recognition, perimeter protection and SMD Plus AI
Up to 10 face databases with capacity for 5,000 images
Single SATA interface supporting an HDD up to 10TB
Up to 8-channel record playback
ONVIF Profile T, Profile S and Profile G interoperability

Specification	Details
Model	DHIPNVR08-A5
Main Processor	Industrial-grade embedded processor
Operating System	Embedded Linux
Operation Interface	Web; local GUI
IP Video Inputs	8 channels
PoE Ports	8 × PoE ports, 10/100 Mbps
Maximum Recording Resolution	12MP
Supported Resolutions	12MP; 8MP; 5MP; 4MP; 3MP; 2MP; 720p; D1
AI By Camera	Face detection; face recognition; perimeter protection; SMD Plus
AI By NVR	Face detection; face recognition; perimeter protection; SMD Plus
Perimeter Protection By NVR	1 channel
Perimeter Protection By Camera	4 channels
Face Attributes	Gender; age group (6); glasses; expressions (8); mouth mask; beard
Face Detection By NVR	1 channel at 1080P, up to 12 face images/second
Face Detection By Camera	5 channels
Face Database Capacity	Up to 10 face databases with 5,000 images
Face Recognition By NVR	1 channel at 1080P, up to 4 face images/second
Face Recognition By Camera	5 channels
SMD Plus By NVR	4 channels
SMD Plus By Camera	6 channels
Network Bandwidth, AI Off	Access: 144 Mbps; Storage: 144 Mbps; Forward: 72 Mbps
Network Bandwidth, AI On	Access: 72 Mbps; Storage: 72 Mbps; Forward: 36 Mbps
Decoding Capability, AI Disabled	1-channel 12MP@25fps; 1-channel 8MP@25fps; 2-channel 5MP@25fps; 3-channel 4MP@25fps; 6-channel 1080p@25fps
Decoding Capability, AI Enabled	1-channel 8MP@25fps; 1-channel 5MP@25fps; 2-channel 4MP@25fps; 4-channel 1080p@25fps
Video Outputs	1 × VGA; 1 × HDMI, simultaneous
HDMI Maximum Resolution	4K
Multi-Screen Display	1, 4, 8, 9 views
Third-Party Camera Access	ONVIF
Video Compression	Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression	PCM; G711A; G711U; G726
Network Protocols	HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; DDNS; Alarm Server; IP Search; P2P; Auto Registration
Mobile Phone Access	Android; iOS
Interoperability	ONVIF Profile T; Profile S; Profile G; CGI; SDK
Browser Support	Chrome; IE9 or later; Firefox
Multi-Channel Playback	Up to 8 channels
Record Modes	Manual record; alarm recordings; motion detection recordings; scheduled recordings
Storage	Local HDD and network
Backup	USB device
General Alarms	Motion detection; privacy masking; video loss; PIR alarm; IPC alarm
Anomaly Alarms	Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; cyber security exception
Intelligent Alarms	Face detection; face recognition; perimeter protection (intrusion and tripwire); IVS; SMD Plus
Alarm Linkage	Recording; snapshot; buzzer; log; preset; email; tour
HDD Interface	1 × SATA port
Maximum HDD Capacity	Up to 10TB
USB	1 × front USB 2.0; 1 × rear USB 2.0
Network Port	1 × RJ-45, 10/100/1000 Mbps
RCA Input	1
RCA Output	1
Power Supply	53V DC, 1.8A
NVR Power Consumption	≤10W without HDD
Total PoE Output Power	72W
Maximum PoE Output Per Port	25.5W
Net Weight	0.92kg (2.03lb)
Gross Weight	2.07kg (4.56lb)
Dimensions	260 × 232.7 × 47.6mm (10.24 × 9.16 × 1.87in) W × L × H
Operating Temperature	-10°C to +55°C (+14°F to +131°F)
Storage Temperature	0°C to 40°C (32°F to 104°F)
Operating Humidity	10%–93%
Storage Humidity	30%–85%
Operating Altitude	3,000m (9,842.52ft)
Installation	Desktop
Certifications	FCC: 47 CFR FCC Part 15, Subpart B, Class A; CE-EMC: EN 55032:2015 Class A, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55024:2010+A1:2015, EN 55035:2017, EN 50130-4:2011+A1:2014; CE-LVD: EN 62368-1:2014+A11:2017

Datasheet

Click here to download

Overview

Features

Technical Data

Specification	Details
Model	DHIPNVR08-A5
Main Processor	Industrial-grade embedded processor
Operating System	Embedded Linux
Operation Interface	Web; local GUI
IP Video Inputs	8 channels
PoE Ports	8 × PoE ports, 10/100 Mbps
Maximum Recording Resolution	12MP
Supported Resolutions	12MP; 8MP; 5MP; 4MP; 3MP; 2MP; 720p; D1
AI By Camera	Face detection; face recognition; perimeter protection; SMD Plus
AI By NVR	Face detection; face recognition; perimeter protection; SMD Plus
Perimeter Protection By NVR	1 channel
Perimeter Protection By Camera	4 channels
Face Attributes	Gender; age group (6); glasses; expressions (8); mouth mask; beard
Face Detection By NVR	1 channel at 1080P, up to 12 face images/second
Face Detection By Camera	5 channels
Face Database Capacity	Up to 10 face databases with 5,000 images
Face Recognition By NVR	1 channel at 1080P, up to 4 face images/second
Face Recognition By Camera	5 channels
SMD Plus By NVR	4 channels
SMD Plus By Camera	6 channels
Network Bandwidth, AI Off	Access: 144 Mbps; Storage: 144 Mbps; Forward: 72 Mbps
Network Bandwidth, AI On	Access: 72 Mbps; Storage: 72 Mbps; Forward: 36 Mbps
Decoding Capability, AI Disabled	1-channel 12MP@25fps; 1-channel 8MP@25fps; 2-channel 5MP@25fps; 3-channel 4MP@25fps; 6-channel 1080p@25fps
Decoding Capability, AI Enabled	1-channel 8MP@25fps; 1-channel 5MP@25fps; 2-channel 4MP@25fps; 4-channel 1080p@25fps
Video Outputs	1 × VGA; 1 × HDMI, simultaneous
HDMI Maximum Resolution	4K
Multi-Screen Display	1, 4, 8, 9 views
Third-Party Camera Access	ONVIF
Video Compression	Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression	PCM; G711A; G711U; G726
Network Protocols	HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; DDNS; Alarm Server; IP Search; P2P; Auto Registration
Mobile Phone Access	Android; iOS
Interoperability	ONVIF Profile T; Profile S; Profile G; CGI; SDK
Browser Support	Chrome; IE9 or later; Firefox
Multi-Channel Playback	Up to 8 channels
Record Modes	Manual record; alarm recordings; motion detection recordings; scheduled recordings
Storage	Local HDD and network
Backup	USB device
General Alarms	Motion detection; privacy masking; video loss; PIR alarm; IPC alarm
Anomaly Alarms	Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; cyber security exception
Intelligent Alarms	Face detection; face recognition; perimeter protection (intrusion and tripwire); IVS; SMD Plus
Alarm Linkage	Recording; snapshot; buzzer; log; preset; email; tour
HDD Interface	1 × SATA port
Maximum HDD Capacity	Up to 10TB
USB	1 × front USB 2.0; 1 × rear USB 2.0
Network Port	1 × RJ-45, 10/100/1000 Mbps
RCA Input	1
RCA Output	1
Power Supply	53V DC, 1.8A
NVR Power Consumption	≤10W without HDD
Total PoE Output Power	72W
Maximum PoE Output Per Port	25.5W
Net Weight	0.92kg (2.03lb)
Gross Weight	2.07kg (4.56lb)
Dimensions	260 × 232.7 × 47.6mm (10.24 × 9.16 × 1.87in) W × L × H
Operating Temperature	-10°C to +55°C (+14°F to +131°F)
Storage Temperature	0°C to 40°C (32°F to 104°F)
Operating Humidity	10%–93%
Storage Humidity	30%–85%
Operating Altitude	3,000m (9,842.52ft)
Installation	Desktop
Certifications	FCC: 47 CFR FCC Part 15, Subpart B, Class A; CE-EMC: EN 55032:2015 Class A, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55024:2010+A1:2015, EN 55035:2017, EN 50130-4:2011+A1:2014; CE-LVD: EN 62368-1:2014+A11:2017
