SPRO CCTV 4 Channel 12MP NVR

Name: SPRO CCTV 4 Channel 12MP NVR
Brand: Spro
SKU: FDS007/215
Price: 1224.72 GBP
Availability: InStock

Code: FDS007/221

from

£161.28

INC VAT

Code: FDS007/221

In stock

Capacity

DHIPNVR04-A5
Four IP camera channels with four built-in PoE ports
Supports recording at up to 12 MP

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

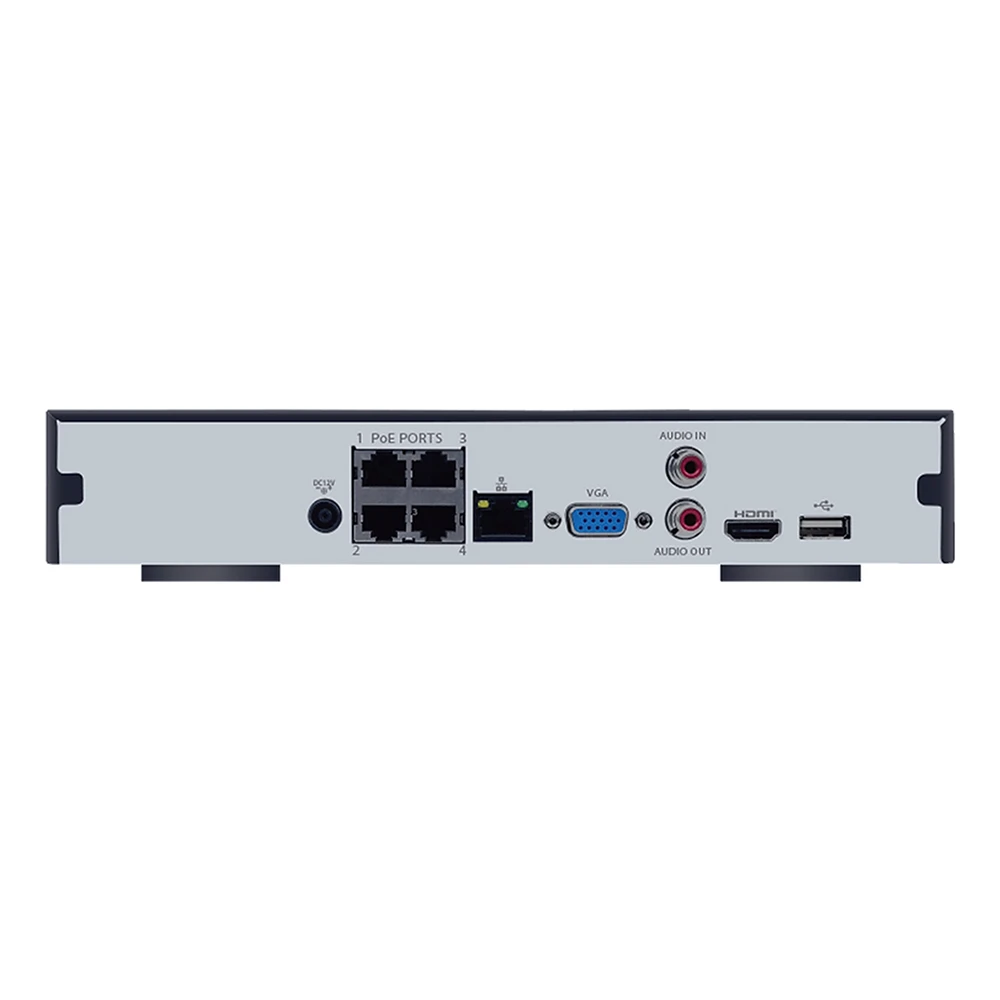

The SPRO CCTV 4 Channel 12MP NVR records footage from up to four IP cameras. Its four built-in PoE ports provide network connections and power for compatible cameras, making it a compact option for a small CCTV system.

The DHIPNVR04-A5 supports recording at resolutions up to 12 MP and offers simultaneous HDMI and VGA output. The HDMI port supports output up to 4K, while one- and four-camera display layouts make it easy to review the system locally. Video compression options include Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG.

Built-in AI functions include face detection, face recognition, perimeter protection and four-channel SMD Plus. The NVR also supports AI functions provided by connected cameras. These tools can help users identify and review relevant activity, with available functions depending on how the system is configured.

A single SATA port supports a local hard drive of up to 10 TB, subject to the operating temperature. Recordings can also be stored over the network and backed up to a USB device. Footage is accessible through the local interface, a web browser or an iOS or Android device.

DHIPNVR04-A5
Four IP camera channels with four built-in PoE ports
Supports recording at up to 12 MP
HDMI output supports up to 4K, with simultaneous VGA output
Built-in face detection, face recognition and perimeter protection
Four-channel SMD Plus by NVR
Supports compatible cameras through ONVIF
One SATA port supports an HDD of up to 10 TB
USB backup and up to four-channel playback
Viewing access through a local interface, web browser, iOS or Android device

Specification	Details
Model	DHIPNVR04-A5
Camera Channels	4
Main Processor	Industrial-grade embedded processor
Operating System	Embedded Linux
Operating Interface	Web; local GUI
Supported Resolutions	12 MP; 8 MP; 5 MP; 4 MP; 3 MP; 2 MP; 720p; D1
Network Bandwidth	80 Mbps access; 80 Mbps storage; 60 Mbps forwarding
AI by NVR	Face detection; face recognition; perimeter protection; SMD Plus
AI by Camera	Face detection; face recognition; perimeter protection; SMD Plus
Perimeter Protection	1 channel by NVR; 4 channels by camera
Face Detection	1 channel by NVR at 1080p, up to 12 face images/s; 4 channels by camera
Face Recognition	1 channel by NVR at 1080p, up to 4 face images/s; 4 channels by camera
Face Database Capacity	Up to 10 databases with 5,000 images
SMD Plus	4 channels by NVR; 4 channels by camera
Video Compression	Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression	PCM; G.711A; G.711U; G.726
Video Outputs	1 HDMI and 1 VGA, simultaneous
Maximum HDMI Output Resolution	4K
Display Layouts	1 or 4 views
Multi-channel Playback	Up to 4 channels
Recording Modes	Manual; alarm; motion detection; scheduled
Recording Storage	Local HDD; network
Backup	USB device
Third-party Camera Access	ONVIF
Interoperability	ONVIF Profiles T, S and G; CGI; SDK
Mobile Access	Android; iOS
HDD Interface	1 SATA port, up to 10 TB; maximum capacity varies with operating temperature
PoE Ports	4 × 10/100 Mbps
PoE Power Budget	72 W total; 25.5 W maximum per port
Network Port	1 × 10/100/1000 Mbps RJ-45
USB Ports	2 × USB 2.0, one front and one rear
RCA Input / Output	1 input; 1 output
Power Supply	53 V DC, 1.13 A
NVR Power Consumption	≤10 W without HDD
Operating Temperature	−10°C to +55°C (+14°F to +131°F)
Storage Temperature	0°C to 40°C (32°F to 104°F)
Operating Humidity	10–93%
Storage Humidity	30–85%
Operating Altitude	Up to 3,000 m (9,842.52 ft)
Dimensions	W 260 × L 232.7 × H 47.6 mm (10.24 × 9.16 × 1.87 in)
Net Weight	0.86 kg (1.90 lb)
Installation	Desktop

Datasheet

Click here to download
