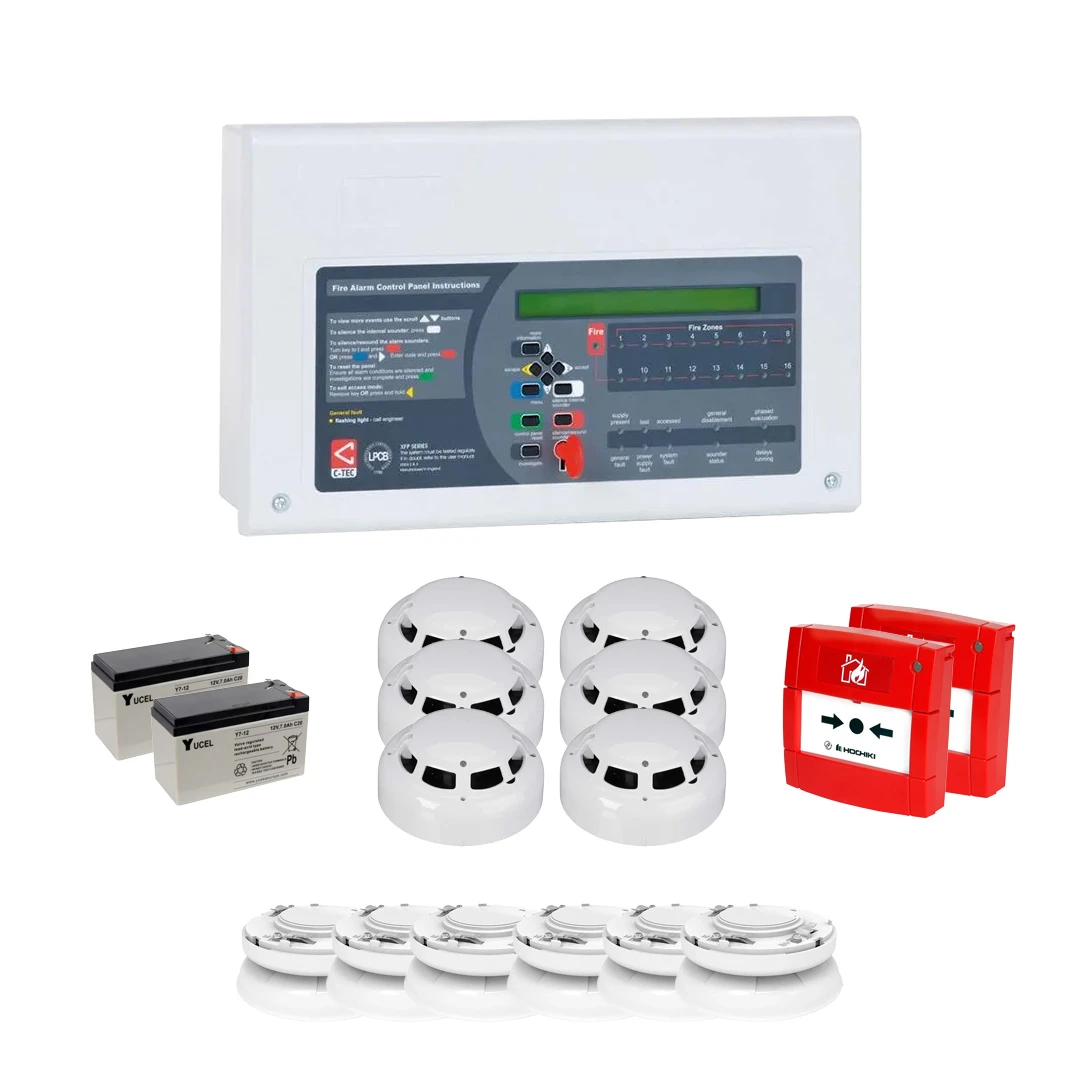

C-TEC Small Premises Addressable Fire Alarm Kit – 1 Loop, 16 Zone – Hochiki ESP

Name: C-TEC Small Premises Addressable Fire Alarm Kit – 1 Loop, 16 Zone – Hochiki ESP
Brand: C-tec
Price: 889.032 GBP
Availability: InStock

Code: FDS002/029

£889.03

INC VAT

Code: FDS002/029

Suitable for smaller properties
Save £ with kits
Ideal for commercial and multi-occupancy buildings

Add these extras to your kit

Please Select

Hochiki HCP-E (SCI) Addressable Manual Call Point(£34.32 inc vat)

Hochiki ALN-EN(WHT) | Addressable Optical Smoke Detector(£33.24 inc vat)

Hochiki ATJ-EN(WHT) Addressable Heat Detector(£33.24 inc vat)

Hochiki YBN-R/3(WHT) | ESP Protocol Addressable Mounting Base | White Body(£2.34 inc vat)

Hochiki YBO-BS(WHT) | ESP Protocol Addressable Base Sounder | White Body(£31.80 inc vat)

Hochiki YBO-BSB2(WHT)/WL | ESP Protocol Addressable Sounder VAD Base | White Body/White Lens(£58.56 inc vat)

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

This high-performance 16 Zone Addressable Fire Alarm Kit combines C-TEC’s XFP control panel with market-leading detection and alarm devices from Hochiki’s ESP protocol range, ideal for commercial and multi-occupancy buildings requiring robust, scalable protection.

The centrepiece of the kit is the C-TEC XFP Single Loop Addressable Panel, supporting up to 16 detection zones and certified to EN 54-2 and EN 54-4 by the LPCB.

Housed in a sleek plastic enclosure suitable for flush or surface mounting, the panel features combined keypad and keyswitch access to configuration Levels 2 and 3, ensuring secure operation during commissioning and maintenance.

All detectors and alarm devices in the kit are fully compatible with Hochiki's ESP addressable protocol, known for its reliability, noise immunity, and low power consumption.

16 Zone One Loop Addressable fire alarm kit contains:

C-TEC 16 Zone One Loop Addressable Fire Alarm Panel

Specification	Details
Approvals/Certifications	Certified to EN54-2 & 4 by the LPCB
Protocol/Compatibility	Hochiki ESP
Mains Supply	230V 50/60Hz
Mains Rated Current	350mA maximum
Internal Power Supply	27Vdc nominal
Total Output Current	1.4A @ 230Vac (Imax.A 210mA; Imin. 40mA)
Quiescent Current	50mA (loop unloaded)
Max Battery Size and Type	2 x 12V 3.2Ah VRLA connected in series
No. of Loop Drivers	1
Max. Loop Output Current	500mA (25V min; 34V max)
Max. Loop Length	1KM
Max. Addressable Devices per Loop	126
No. of Conventional Sounder Circuits	2 (Max. length per circuit is 500m)
EOL Resistor Value	6800Î© 5% Tol. 0/25W (blue, grey, red, gold)
Max. Sounder Output Current	400mA
Auxiliary Relays	3 x Programmable Relays; 1 x Fault Relay; Volt free single pole changeover; Max. switch current 1A; Max. switch voltage 30Vdc
Other Outputs	24V Aux. Power (19.5V min, 28V max); Protected by resettable fuse; Max. current 100mA
Auxiliary Inputs	2 x Programmable Inputs; Connect to 0V to trigger; Max. input voltage 27V (non-latching)
PC Connection	RS232 molex connector (via XFP507 upload/download kit); No printer connection
Indicators	2 line x 40 character backlit display; 16 Zonal LEDs and multiple status indicators
Connections	Fixed, max conductor size 1mmÂ²
Expansion Connections	2-wire RS485 via optional XFP761 network card; Max 8 mains or repeaters; Limit 1KM
Product Dimensions (mm)	380 W x 235 H x 96 D mm (flush mount hole: 367 W x 220 H x 75 D mm)
Construction & Finish	Plastic lid and base; RAL7035 textured
IP Rating	IP30
Weight	1.8kg (without batteries)
Operating Conditions/Temperature	-5ÂºC to +40ÂºC; Max relative humidity: 95%

C-TEC 16 Zone One Loop Addressable Fire Alarm Hochiki ESP Protocol Datasheet

Click here to download

Overview

Features

Technical Data

Downloads & Resources

C-TEC Small Premises Addressable Fire Alarm Kit – 1 Loop, 16 Zone – Hochiki ESP

£889.03

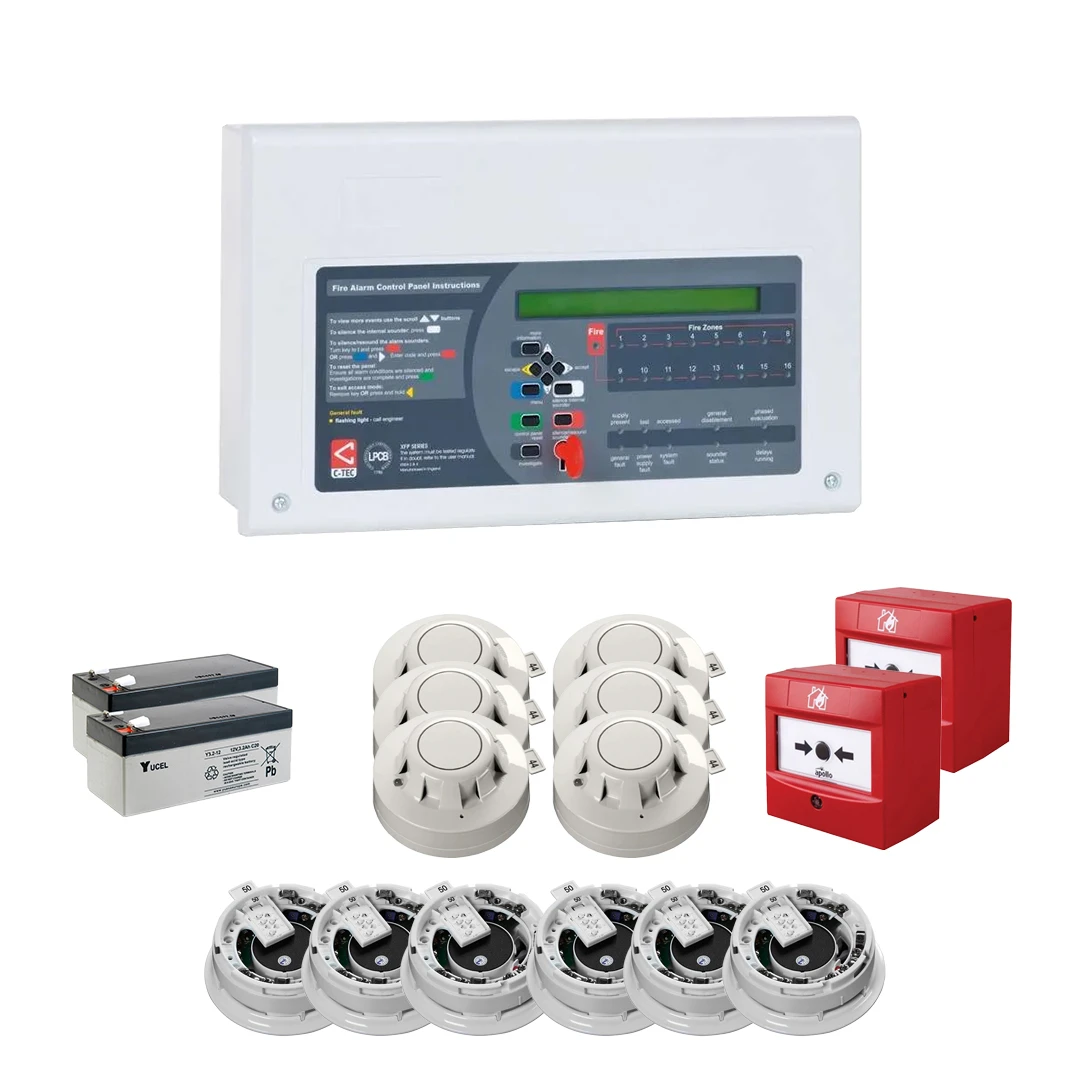

C-TEC Small Premises Addressable Fire Alarm Kit – 1 Loop, 16 Zone – Apollo XP95

£702.17

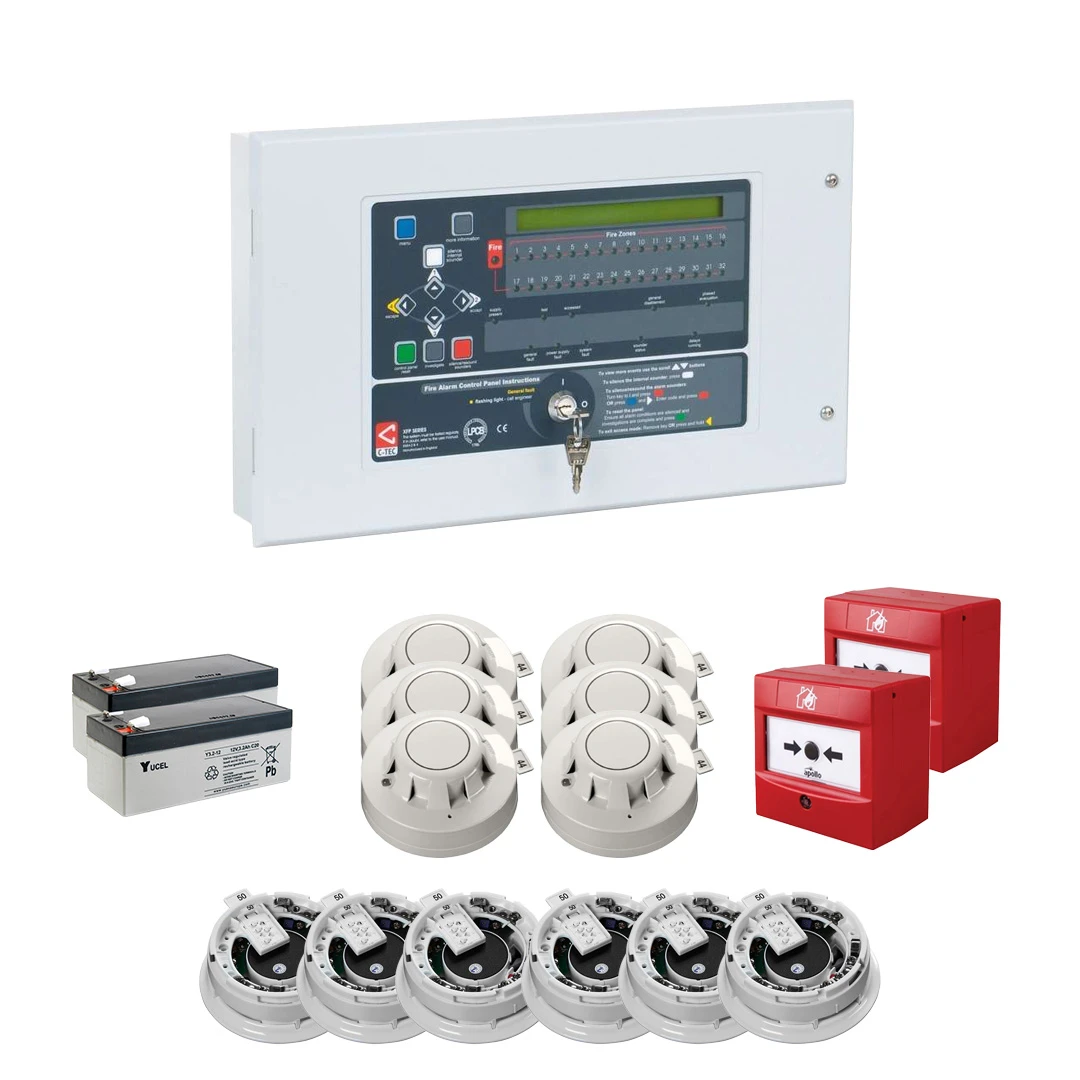

C-TEC Medium Premises Addressable Fire Alarm Kit – 1 Loop, 32 Zone – Apollo XP95

£824.33

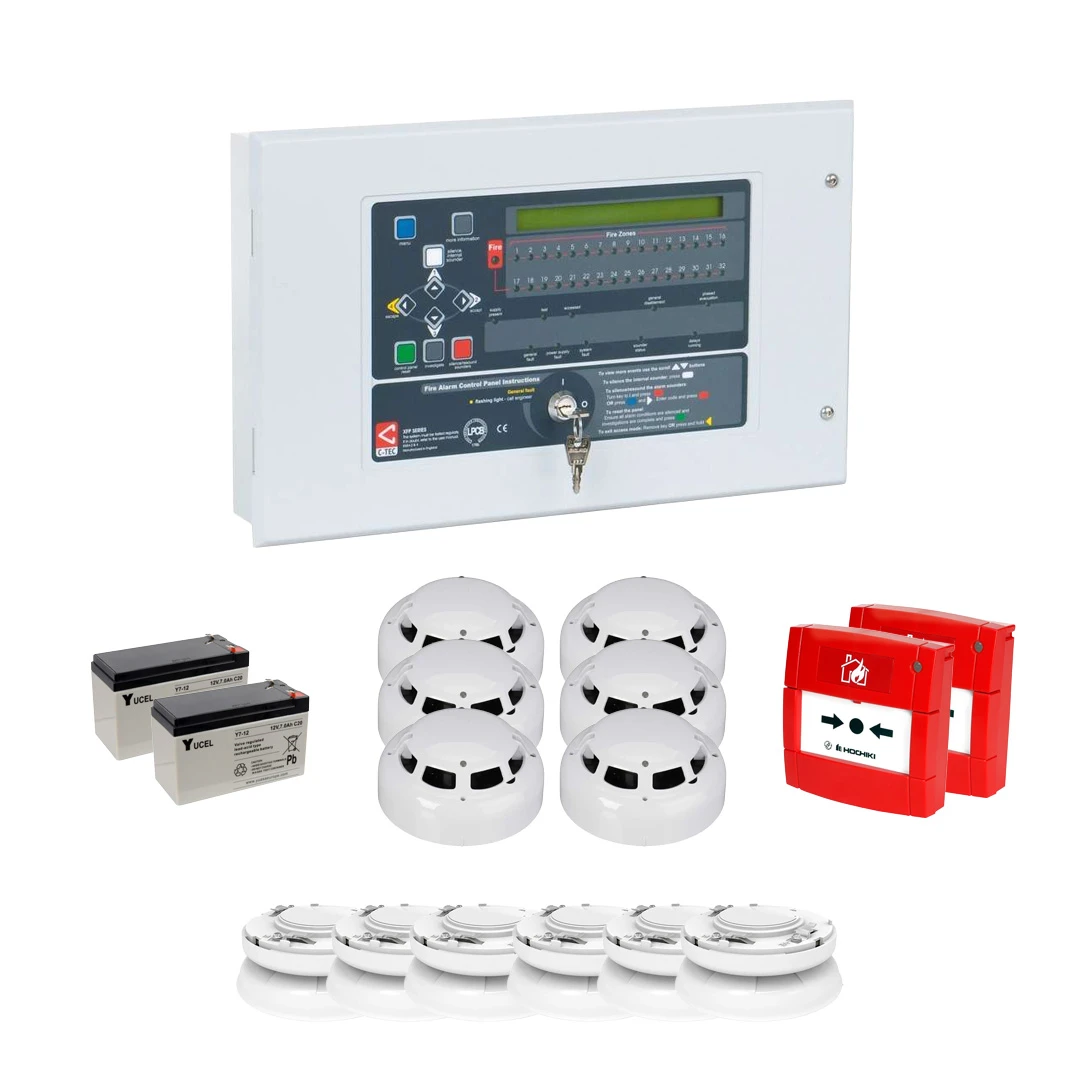

C-TEC Medium Premises Addressable Fire Alarm Kit – 1 Loop, 32 Zone – Hochiki ESP

£871.35

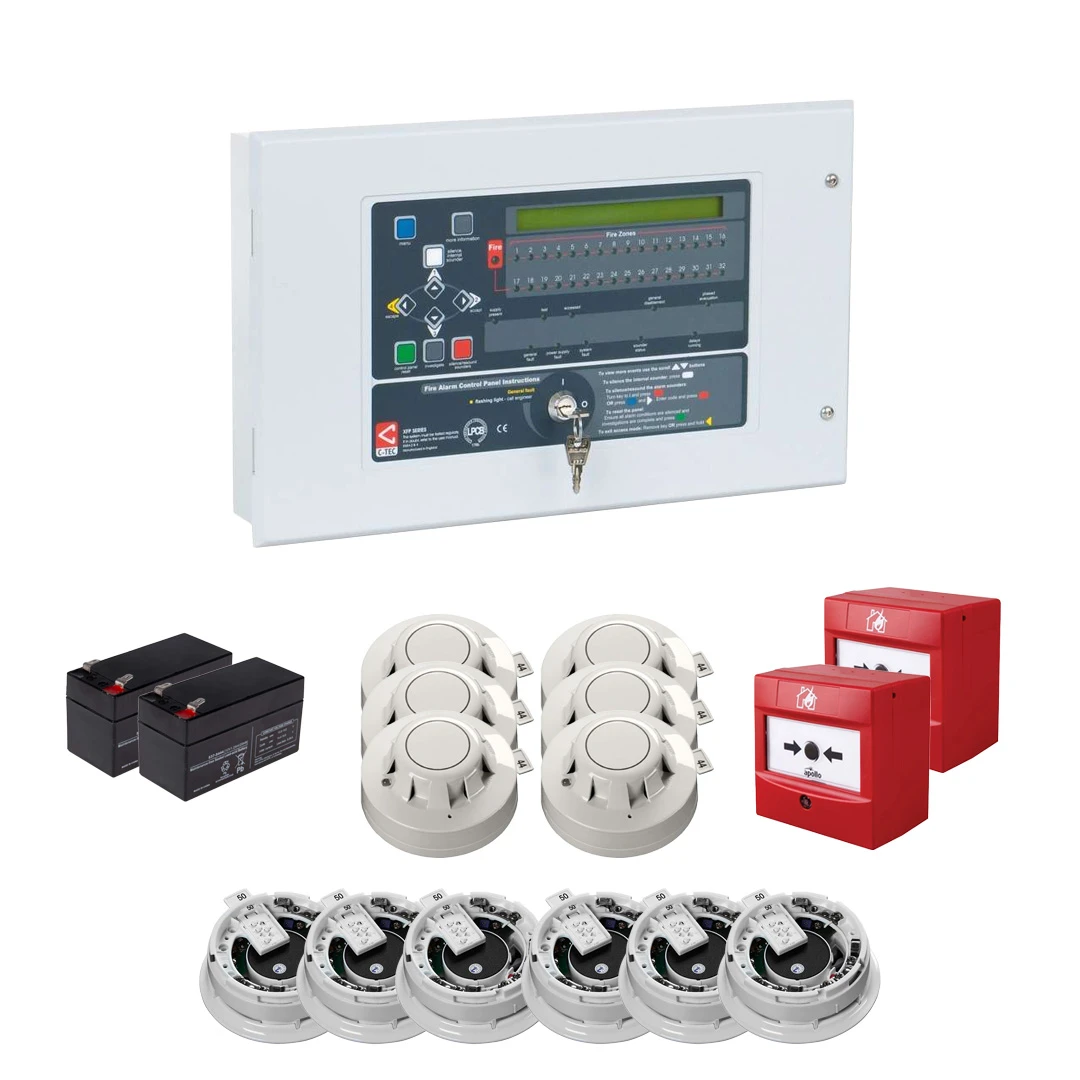

C-TEC Large Premises Addressable Fire Alarm Kit – 2 Loop, 32 Zone – Apollo XP95
