C-TEC Small Premises Addressable Fire Alarm Kit – 1 Loop, 16 Zone – Apollo XP95

Name: C-TEC Small Premises Addressable Fire Alarm Kit – 1 Loop, 16 Zone – Apollo XP95
Brand: C-tec
Price: 842.6039999999999 GBP
Availability: InStock

Code: FDS002/028

£842.60

INC VAT

Code: FDS002/028

Save £ with kits
Third-party certified to EN54-2/4
Exceptional value and reliability

Add these extras to your kit

Please Select

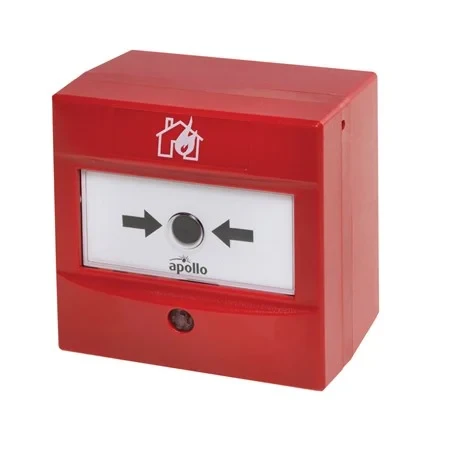

Apollo SA5900-908APO | Intelligent Addressable Manual Call Point(£33.42 inc vat)

Apollo 55000-600APO | XP95 Addressable Optical Smoke Detector(£31.56 inc vat)

Apollo 55000-400APO | XP95 Standard Addressable 55°C Heat Detector(£31.56 inc vat)

Apollo 55000-401APO | XP95 High Temp 90°C Addressable Heat Detector(£31.56 inc vat)

Apollo 45681-210APO Addressable Base with XPERT Card | XP95/Discovery(£2.34 inc vat)

Apollo 45681-276APO | XP95 Ancillary Base Sounder(£26.34 inc vat)

Apollo 45681-277APO | XP95 Integrated Base Sounder with Isolator(£32.34 inc vat)

Apollo 45681-330APO | XP95 Addressable Sounder Beacon Base | Red Flash(£53.88 inc vat)

FireSmart Fire Alarm Logbook(£4.74 inc vat)

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

This comprehensive 16 Zone One Loop Addressable Fire Alarm Kit combines the trusted performance of C-TEC’s XFP panel with Apollo XP95 detection devices, offering exceptional value and reliability for commercial fire safety installations.

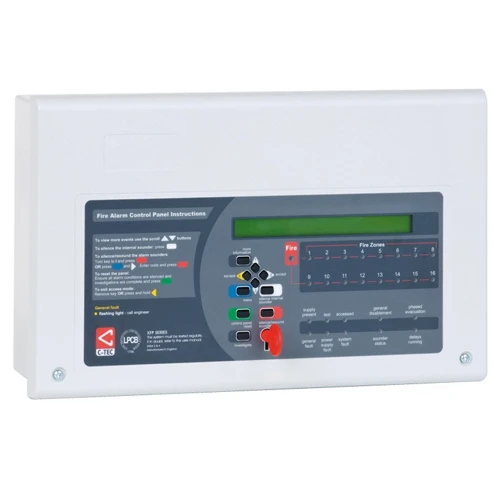

At the heart of the kit is the C-TEC XFP 1-loop addressable fire alarm panel, which supports up to 16 detection zones and is fully third-party certified to EN 54-2/4 by LPCB.

Ideal for a wide range of medium-sized applications, this panel provides advanced features such as a combined keypad/keyswitch for secure access to Levels 2 and 3, two programmable sounder circuits, two programmable inputs, a fault relay, and three programmable volt-free outputs.

Combined keypad / key switch entry to Access Levels 2 and 3
Third-party certified to EN54-2/4 by the Loss Prevention Certification Board (LPCB)
Two programmable conventional sounder circuits
Two programmable inputs
Fault output relay and three programmable relay outputs with voltage free changeover contacts
Compatible with Apollo XP95 and Discovery devices
Two Loop Option Also Available

Choose additional devices from the options box above to build your customised kit and speed up the ordering process.

Our C-TEC 16 Zone One Loop Addressable Fire Alarm Kit Contains:

Feature	Specification
Approvals/certifications	EN54-2 & 4 by the LPCB
Protocol/compatibility	Apollo XP95/Discovery
Mains supply	230V 50/60Hz
Mains rated current	350mA maximum
Internal power supply	27Vdc nominal
Total output current	1.4A @ 230Vac (Imax.A 210mA; Imin. 40mA)
Quiescent current	50mA (loop unloaded)
Battery size and type	2 x 12V 3.2Ah VRLA connected in series
No. of loop drivers	1
Max. loop output current	500mA (25V min; 34V max)
Max. loop length	1KM
Max. addressable devices per loop	126
Conventional sounder circuits	2 (Max. length per circuit is 500m)
EOL resistor value	6800Ω 5% Tol. 0/25W (blue, grey, red, gold)
Max. sounder output current	400mA
Auxiliary relays	3 x Programmable Relays, 1 x Fault Relay (active when no faults are present)
Max. switch current/voltage	1A / 30Vdc
Other outputs	24V Aux. Power (19.5V min, 28V max) Protected by a resettable fuse, Max. current 100mA
Auxiliary inputs	2 x Programmable Inputs. Connect to 0V to trigger, Max. input voltage 27V (non-latching)
PC connection	Via RS232 molex connector (supplied in XFP507 upload/download software kit)
Indicators	2 line x 40 character backlit display, 16 Zonal LEDs
Connections	Fixed, largest acceptable conductor size 1mm²
Expansion connections	2-wire RS485 non-redundant network/repeater connection available via optional XFP761 network card
Product dimensions	380 W x 235 H x D 96mm
Construction & finish	Plastic lid and base; RAL7035 textured
IP Rating	IP30
Weight	1.8kg (without batteries)
Operating conditions/temperature	-5ºC to +40ºC. Max relative humidity: 95%

C-TEC 16 Zone One Loop Addressable Fire Alarm Kit - Datasheet	Click here to download
C-TEC 16 Zone One Loop Addressable Fire Alarm Kit - Quick Start Guide	Click here to download
C-TEC 16 Zone One Loop Addressable Fire Alarm Kit - Install Manual	Click here to download
C-TEC 16 Zone One Loop Addressable Fire Alarm Kit - User Guide	Click here to download

Overview

Features

Technical Data

Feature	Specification
Approvals/certifications	EN54-2 & 4 by the LPCB
Protocol/compatibility	Apollo XP95/Discovery
Mains supply	230V 50/60Hz
Mains rated current	350mA maximum
Internal power supply	27Vdc nominal
Total output current	1.4A @ 230Vac (Imax.A 210mA; Imin. 40mA)
Quiescent current	50mA (loop unloaded)
Battery size and type	2 x 12V 3.2Ah VRLA connected in series
No. of loop drivers	1
Max. loop output current	500mA (25V min; 34V max)
Max. loop length	1KM
Max. addressable devices per loop	126
Conventional sounder circuits	2 (Max. length per circuit is 500m)
EOL resistor value	6800Ω 5% Tol. 0/25W (blue, grey, red, gold)
Max. sounder output current	400mA
Auxiliary relays	3 x Programmable Relays, 1 x Fault Relay (active when no faults are present)
Max. switch current/voltage	1A / 30Vdc
Other outputs	24V Aux. Power (19.5V min, 28V max) Protected by a resettable fuse, Max. current 100mA
Auxiliary inputs	2 x Programmable Inputs. Connect to 0V to trigger, Max. input voltage 27V (non-latching)
PC connection	Via RS232 molex connector (supplied in XFP507 upload/download software kit)
Indicators	2 line x 40 character backlit display, 16 Zonal LEDs
Connections	Fixed, largest acceptable conductor size 1mm²
Expansion connections	2-wire RS485 non-redundant network/repeater connection available via optional XFP761 network card
Product dimensions	380 W x 235 H x D 96mm
Construction & finish	Plastic lid and base; RAL7035 textured
IP Rating	IP30
Weight	1.8kg (without batteries)
Operating conditions/temperature	-5ºC to +40ºC. Max relative humidity: 95%
