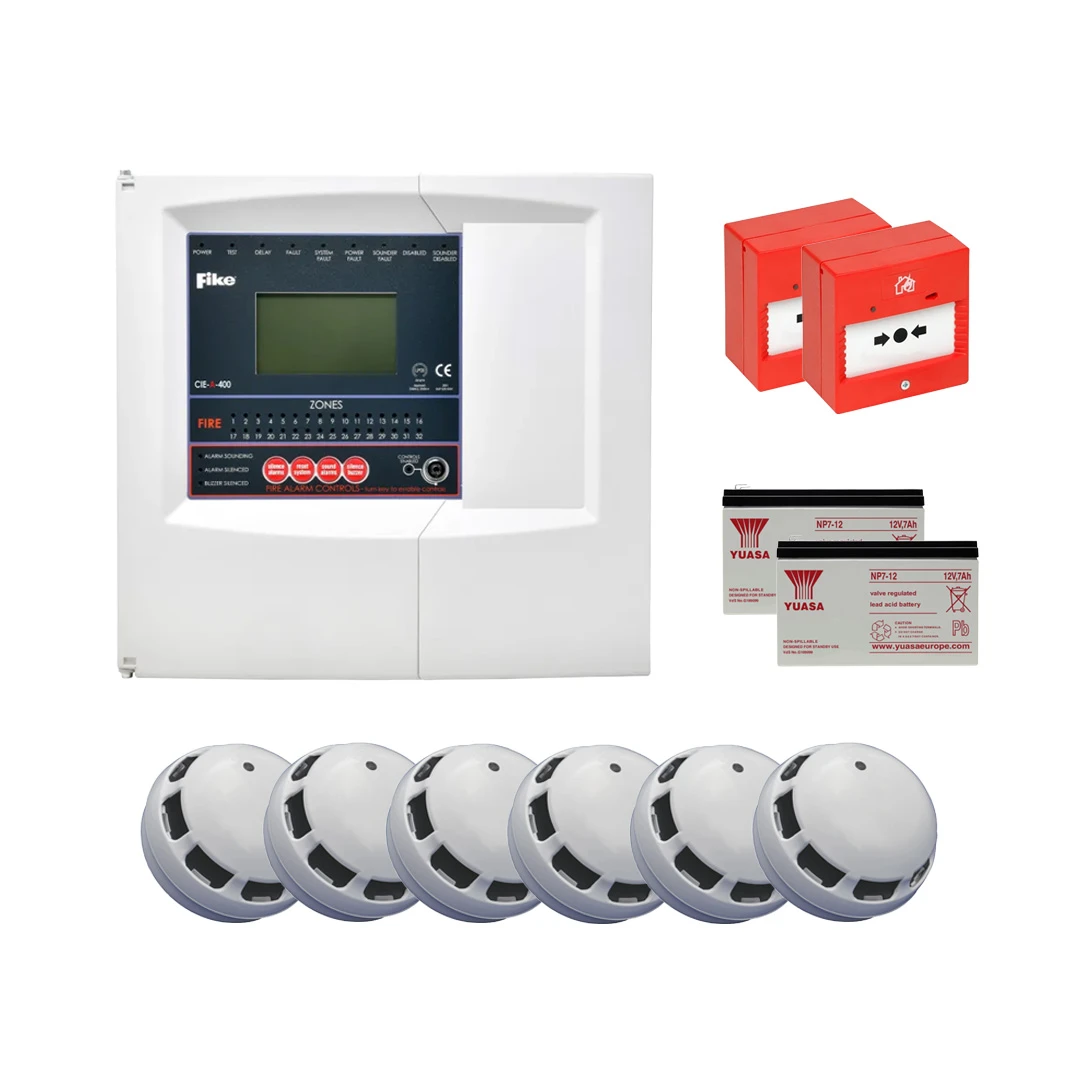

Fike 540-0001 | CIE-A-400 Single Loop Addressable Fire Alarm Kit

The Fike 540-0001 Single Loop Addressable Fire Alarm Kit is a complete, professional-grade solution designed for reliable fire detection and alarm management in medium-sized commercial buildings.

At the heart of this system is the advanced Fike CIE-A-400 Control Panel, which comes with a single loop card and can be easily expanded to a two-loop configuration, supporting up to 400 addressable devices per loop, with loop lengths up to 2 km.

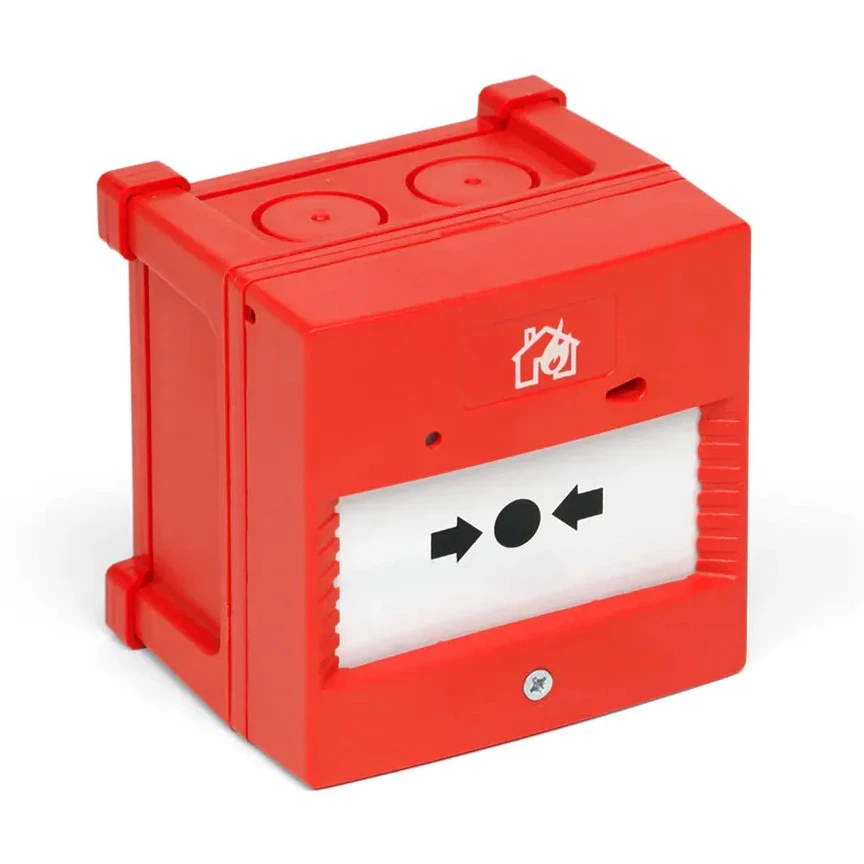

Included in the kit are high-quality detection and alarm devices from Fike’s Multipoint addressable range, fully utilising soft addressing technology.

This ensures rapid, reliable installation and efficient maintenance without the risk of duplicate addressing errors. Each device has built-in isolators, significantly simplifying fault finding and improving system resilience.

The panel provides comprehensive configuration options, including three alarm stages, zone-to-zone cause-and-effect, alarm confirmation, and adjustable delay timers.

With two programmable monitored input and output circuits, plus additional relay outputs, the system can be precisely customised to your site’s requirements.

The intuitive user interface, extensive 1000-event log, and advanced digital protocol ensure quick, effective responses and straightforward system management.

• Single loop control panel, expandable to two loops, supporting up to 400 devices per loop

• Soft addressing technology eliminates manual device addressing

• All devices include built-in isolators for simplified installation and maintenance

• Advanced configuration: zone-to-zone cause-and-effect, three alarm stages, and alarm delays

• Programmable inputs, outputs, and relay configurations for system customisation

• Compatible with existing Fike Multipoint addressable devices

• Peripheral bus connection supports integration of up to 8 repeater or network panels

• Surface mount enclosure supplied as standard (flush mounting cradle available separately)

• Dimensions Panel (W x H x D): 353mm x 333mm x 117mm

• Mains Supply Input: 230V AC Nominal

• Standby Battery Requirement: 2 x 7Ah 12V Sealed Lead Acid (2 x 12 Ah with extended battery box)

• Max Number of Loops: 2

• Loop Loading: 450 DLU (200 Devices Max)

• Number of Supported Zones: 32

• LCD Display: LCD Graphical Display

• Device Labels: 31 Character
