Code: FDS340/087
INC VAT
Code: FDS340/087

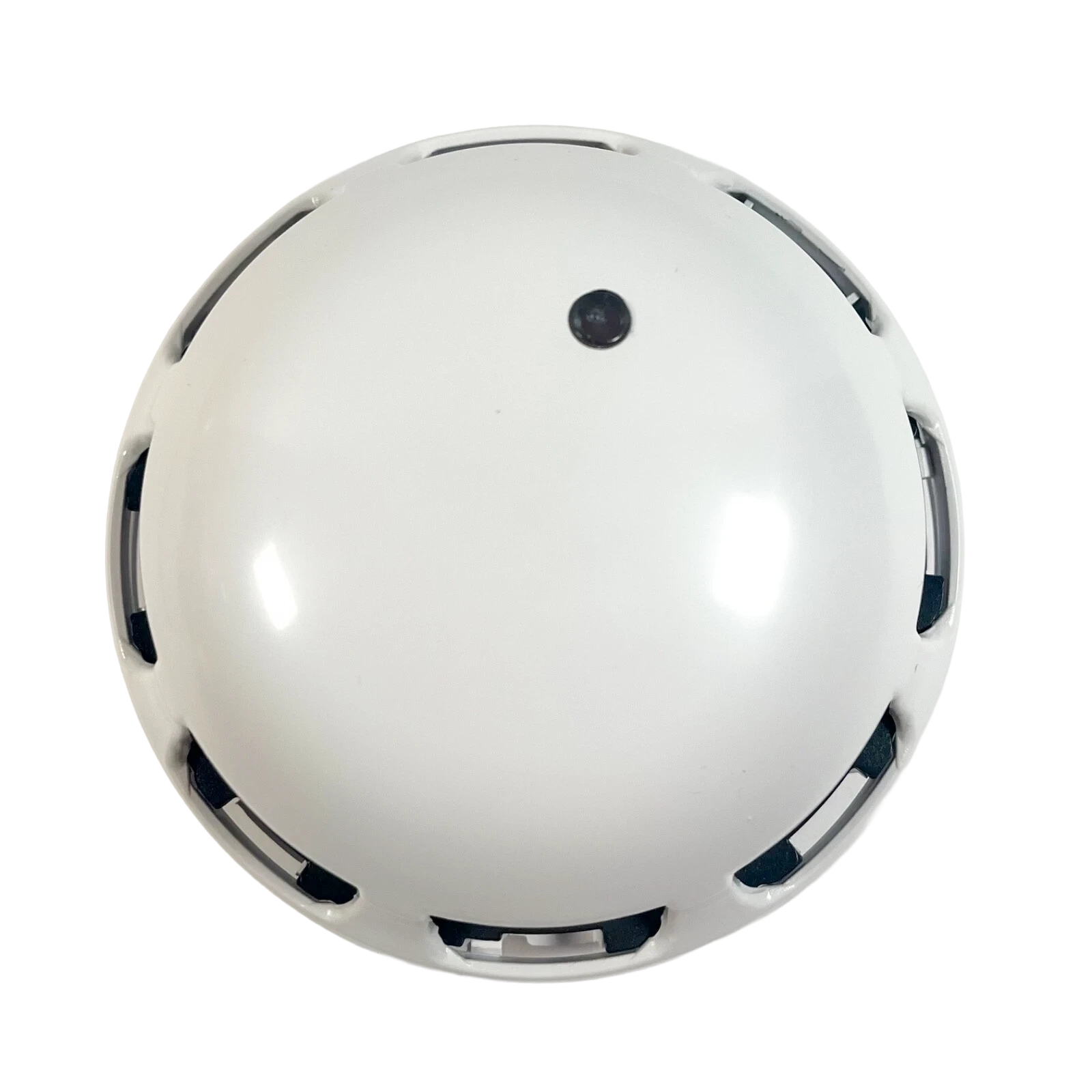

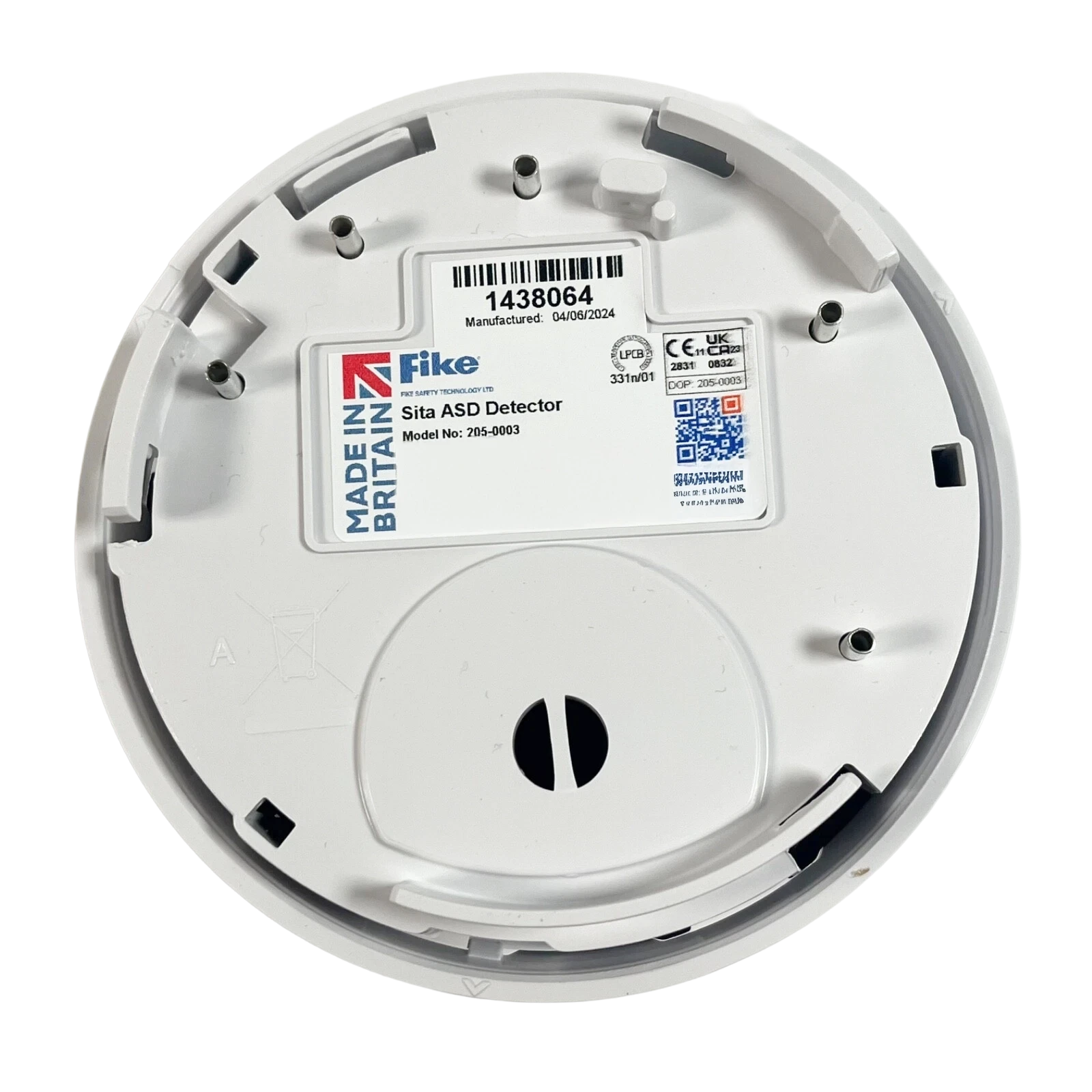

The Fike 205-0003 Sita ASD Detector is a versatile addressable device that combines advanced smoke and heat detection in a single unit.
It features a plug-in design and utilises a photoelectric sensing chamber to monitor smoke density, alongside a thermistor circuit for precise heat measurement.
This multifunction detector supports three smoke detection modes and three heat detection modes, allowing configuration to suit a wide range of applications and environments.
Smoke & Heat Options
Mode | Description |
---|---|
SM1 | Highly thermally enhanced optical detector. Used where ionization detectors are normally fitted, especially where there are high ceilings or a risk of free-burning fires. |
SM2 | Thermally enhanced optical. General-purpose smoke detector, to be used where optical detectors are normally fitted, where there is a risk of a smouldering fire, and for escape routes. |
SM3 | Thermally enhanced optical with smoke pulse rejection. Used where optical detectors are normally used in positions exposed to brief concentrations of water vapour or smoke (e.g. from a bathroom, kettle, etc.). |
HM1 | Rate of rise to 58°C. Used where a standard rate-of-rise detector would be fitted (e.g. not kitchens). |
HM2 | Low fixed temperature 58°C. Used where a standard fixed-temperature heat detector would normally be fitted (e.g. suitable for domestic kitchens, etc.). |
HM3 | High fixed temperature 90°C. Used where a high fixed-temperature heat detector would normally be fitted (e.g. suitable for boiler rooms, commercial kitchens, etc.). |
Multi mode detection
Self calibrating every 6 hours
Short circuit isolator
Auxiliary input facility
Continuously monitors for dust contamination
Specification | Details |
---|---|
Brand | Fike |
Manufacturer Part No. | 205-0003 |
Product Range / Series | SITA |
Primary Power Source | 24V DC |
System Type | Addressable |
Protocol Compatibility | Fike SITA |
Sensor Type | Combined Optical and Thermistor |
Detectable Medium | Smoke, Heat |
Colour | White |
Dimensions | |
Diameter | 107mm |
Depth (Standard inc base) | 67mm |
Depth (Beacon inc base) | 75mm |
Operating Temperature | -10°C to +50°C |
Voltage Range (Loop) | 24 to 42V DC |
LED Indication | |
Normal | 50ms on / 20s interval |
Fault | 0.1ms on / 5s interval |
Fire | 50ms on / 400ms interval |
IP Rating | IP21C |
System Compatibility | |
MPS | Sita200plus V2.00 onwards |
MP | Sita200plus V2.30 onwards |
Duonet and Quadnet | V1 onwards |
The Fike 205-0003 Sita ASD Detector is a versatile addressable device that combines advanced smoke and heat detection in a single unit.
It features a plug-in design and utilises a photoelectric sensing chamber to monitor smoke density, alongside a thermistor circuit for precise heat measurement.
This multifunction detector supports three smoke detection modes and three heat detection modes, allowing configuration to suit a wide range of applications and environments.
Smoke & Heat Options
Mode | Description |
---|---|
SM1 | Highly thermally enhanced optical detector. Used where ionization detectors are normally fitted, especially where there are high ceilings or a risk of free-burning fires. |
SM2 | Thermally enhanced optical. General-purpose smoke detector, to be used where optical detectors are normally fitted, where there is a risk of a smouldering fire, and for escape routes. |
SM3 | Thermally enhanced optical with smoke pulse rejection. Used where optical detectors are normally used in positions exposed to brief concentrations of water vapour or smoke (e.g. from a bathroom, kettle, etc.). |
HM1 | Rate of rise to 58°C. Used where a standard rate-of-rise detector would be fitted (e.g. not kitchens). |
HM2 | Low fixed temperature 58°C. Used where a standard fixed-temperature heat detector would normally be fitted (e.g. suitable for domestic kitchens, etc.). |
HM3 | High fixed temperature 90°C. Used where a high fixed-temperature heat detector would normally be fitted (e.g. suitable for boiler rooms, commercial kitchens, etc.). |
Multi mode detection
Self calibrating every 6 hours
Short circuit isolator
Auxiliary input facility
Continuously monitors for dust contamination
Specification | Details |
---|---|
Brand | Fike |
Manufacturer Part No. | 205-0003 |
Product Range / Series | SITA |
Primary Power Source | 24V DC |
System Type | Addressable |
Protocol Compatibility | Fike SITA |
Sensor Type | Combined Optical and Thermistor |
Detectable Medium | Smoke, Heat |
Colour | White |
Dimensions | |
Diameter | 107mm |
Depth (Standard inc base) | 67mm |
Depth (Beacon inc base) | 75mm |
Operating Temperature | -10°C to +50°C |
Voltage Range (Loop) | 24 to 42V DC |
LED Indication | |
Normal | 50ms on / 20s interval |
Fault | 0.1ms on / 5s interval |
Fire | 50ms on / 400ms interval |
IP Rating | IP21C |
System Compatibility | |
MPS | Sita200plus V2.00 onwards |
MP | Sita200plus V2.30 onwards |
Duonet and Quadnet | V1 onwards |
