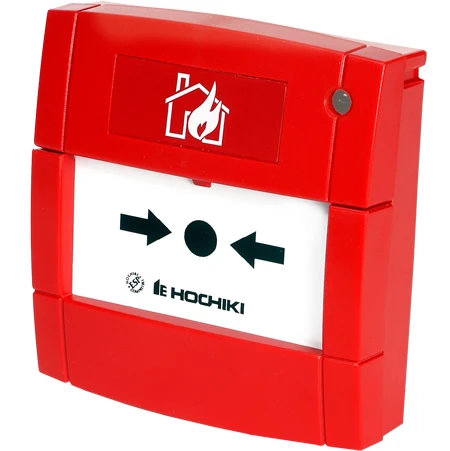

Hochiki HCP-E (SCI) Addressable Manual Call Point

Name: Hochiki HCP-E (SCI) Addressable Manual Call Point
Brand: Hochiki
Price: 34.32 GBP
Availability: InStock

Code: FDS100/324

£34.32

INC VAT

Code: FDS100/324

In stock
Typically dispatched in 1-2 working days

Add these extras to your kit

Please Select

KAC PS200 | Perspex Call Point Cover(£3.83 inc vat)

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

The Hochiki HCP-E Manual Call Point is an addressable indoor call point designed for use with fire alarm systems that operate on Hochiki’s ESP analogue addressable protocol.

It allows users to manually activate the fire alarm system in the event of an emergency and is commonly installed near exits, in corridors, and at key locations throughout a building.

The HCP-E features a bi-colour LED indicator that clearly displays status conditions — red for fire activation and amber for fault — helping engineers and occupants identify device state at a glance.

Integral short circuit isolator
Bi-colour status LED
Resettable element
Plug in wiring terminal
LPCB Approved to EN54

Specification	Detail
Operating Voltage	17 – 41 VDC
Low Power Mode (typ)	180 µA (max), 100 µA (typ)
Quiescent Current	350 µA (max), 250 µA (typ)
Alarm Current	10.0 mA (max), 5 mA (typ)
Resistance in Positive	100 mΩ when closed (max), 100 kΩ when open (min)
Short-Circuit Threshold (typ)	430 Ω
Transmission Method	Digital Communication Using ESP
Operating Temperature Range	-10 °C to +50 °C
Storage Temperature Range	-30 °C to +70 °C
Maximum Humidity	95% RH – Non Condensing (at 40 °C)
Ingress Protection Rating	IP24
Colour / Case Material	Red / Modified Polyphenylene Oxide
Weight (g) / Dimensions (mm)	Flush Unit: 110 g / W 89 × H 93 × D 27.5 mm Surface Mount: 161 g / W 89 × H 93 × D 59.5 mm (Backbox purchased separately)

Hochiki HCP-E (SCI) Addressable Manual Call Point Datasheet

Click here to download

Overview

Features

Technical Data

Specification	Detail
Operating Voltage	17 – 41 VDC
Low Power Mode (typ)	180 µA (max), 100 µA (typ)
Quiescent Current	350 µA (max), 250 µA (typ)
Alarm Current	10.0 mA (max), 5 mA (typ)
Resistance in Positive	100 mΩ when closed (max), 100 kΩ when open (min)
Short-Circuit Threshold (typ)	430 Ω
Transmission Method	Digital Communication Using ESP
Operating Temperature Range	-10 °C to +50 °C
Storage Temperature Range	-30 °C to +70 °C
Maximum Humidity	95% RH – Non Condensing (at 40 °C)
Ingress Protection Rating	IP24
Colour / Case Material	Red / Modified Polyphenylene Oxide
Weight (g) / Dimensions (mm)	Flush Unit: 110 g / W 89 × H 93 × D 27.5 mm Surface Mount: 161 g / W 89 × H 93 × D 59.5 mm (Backbox purchased separately)
