Paxton 682-531 | Net2 Plus Single Door Controller with PSU | Plastic Cabinet

Name: Paxton 682-531 | Net2 Plus Single Door Controller with PSU | Plastic Cabinet
Brand: Paxton
Price: 413.94 GBP
Availability: InStock

Code: FDS900/085

£413.94

INC VAT

Code: FDS900/085

In stock
Typically dispatched in 1-2 working days

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

The Paxton 682-531 Net2 Plus 1 Door Controller is a reliable, easy-to-install, and straightforward-to-configure access control solution. In a networked setup, it offers the benefits of central control, event reporting, and flexible management of user access.

Each unit operates as part of the network yet can function independently, making its own access decisions and storing event data.

The 682-531 Net2 Plus connects directly to the central administration PC, providing greater flexibility for sites with LAN or WAN networks.

It also features an RS485 connection, allowing it to link with other Net2 Plus or Net2 Classic control units via dedicated CAT5 cabling.

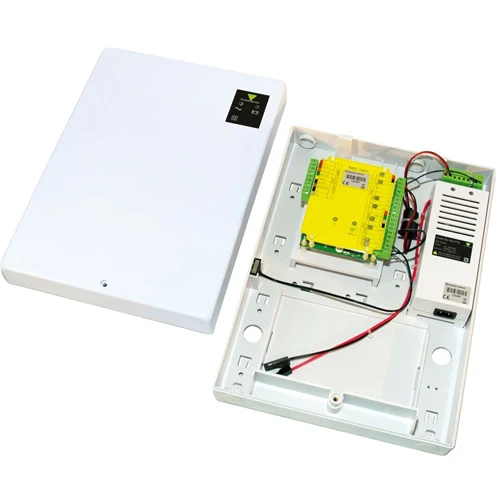

Paxton 682-531
Single door access control unit with power supply
Color coded terminal wiring
12vdc 2A power supply
Plastic housing
External switch inputs and outputs
Plug into a TCP/IP network using a standard RJ45 plug
Built in TCP/IP convertor
Network via RS485
Net2 plus, Net2 classic and Net2 nano control units can be mixed on a site

Category	Specification	Details
System Specifications	Maximum total users/tokens	50,000
	PIN length	4–8
	Number of codes	50
	Code length	4–8
	Number of time zones	64
	Number of access levels	250
	Stored events	2500+
	Data retention during total power loss	30 days
	Handsfree compatible	Yes – requires interface
	Clock and data	Yes
	26 bit Wiegand	Yes (Max 50 bits)
	Custom Wiegand	Yes (Max 50 bits)
	Silent operation	Yes
	Door open time	1 sec – 5000 secs
Electrical	Operating voltage	12VDC ±20% or 24VDC ±20%
	Current consumption	200mA @ 12VDC
	Relay switchable voltage	24V DC
	Relay switchable current	4A max
	Alarm output current	1A
Communication	TCP/IP	Yes (Maximum 200 including other ethernet devices – AirBridges, I/O Boards)
	Wireless	No
	RS485	Yes
	Ethernet network speed	100Mbit/s auto MIDX
	Ethernet bandwidth requirement	200 kbit/sec
	DHCP support (fixed IP recommended)	Yes
Hardware	Reader ports per ACU	2
	Readers/keypads per ACU	4 – check current draw on individual readers
	Total ACU reader port output current	500mA
	3rd party reader support	Yes – if compatible
	Reader cable type	Belden 9540
	Network cable type	CAT5 or Belden 8723
Features	Input for exit button	Yes
	Input for door contact	Yes
	Alarm/bell output	Yes
Environment	Operating temperature	0°C to +55°C / +32°F to +131°F
	Moisture resistance	No – if used externally, must be protected in a weatherproof housing
	Vandal resistance	Low

Paxton 682-531 Datasheet	Click here to download
Paxton PSU Datasheet	Click here to download
