Paxton 337-727 Net2 Entry Control Unit

Name: Paxton 337-727 Net2 Entry Control Unit
Brand: Paxton
Price: 443.04 GBP
Availability: InStock

Code: FDS201/618

£443.04

INC VAT

Code: FDS201/618

In stock
Typically dispatched in 1-2 working days

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

The Paxton 337-727 Net2 Entry Control Unit is the central hub for managing communication between Net2 Entry panels, door hardware, and monitors. It delivers both data and Power over Ethernet (PoE) to connected monitors, ensuring reliable operation and simplified installation.

Its ports can also be used to expand your system, linking additional panels and monitors via Net2 Entry extension switches, or to integrate the unit with a Net2 access control system running version 4.25 or later.

When connected to a Net2 system, the control unit enables secure building access using PIN, code, and/or proximity token, offering flexibility for different user requirements. Designed for seamless integration, it’s an essential component for any Net2 Entry installation.

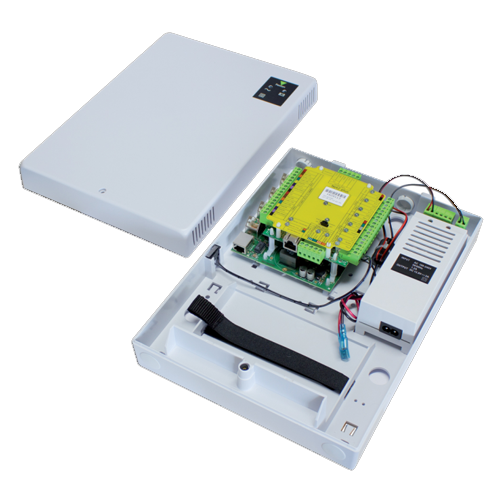

Paxton 337-727
Net2 plus control unit
4 port PoE switch for easy expansion
Plastic cabinet housing
Battery backup (not supplied)
2A 12V DC power supply
Tamper switch for extra security
Surface mounting
Plastic

Category	Specification	Details
System Specifications	Maximum total users/tokens	50,000
	PIN length	4–8
	Number of codes	50
	Code length	4–8
	Number of time zones	64
	Number of access levels	250
	Stored events	2500+
	Data retention during total power loss	30 days
	Handsfree compatible	Yes – requires interface
	Clock and data	Yes
	26 bit Wiegand	Yes (Max 50 bits)
	Custom Wiegand	Yes (Max 50 bits)
	Silent operation	Yes
	Door open time	1 sec – 5000 secs
Electrical	Operating voltage	12VDC ±20% or 24VDC ±20%
	Current consumption	200mA @ 12VDC
	Relay switchable voltage	24V DC
	Relay switchable current	4A max
	Alarm output current	1A
Communication	TCP/IP	Yes (Maximum 200 including other ethernet devices – AirBridges, I/O Boards)
	Wireless	No
	RS485	Yes
	Ethernet network speed	100Mbit/s auto MIDX
	Ethernet bandwidth requirement	200 kbit/sec
	DHCP support (fixed IP recommended)	Yes
Hardware	Reader ports per ACU	2
	Readers/keypads per ACU	4 – check current draw on individual readers
	Total ACU reader port output current	500mA
	3rd party reader support	Yes – if compatible
	Reader cable type	Belden 9540
	Network cable type	CAT5 or Belden 8723
Features	Input for exit button	Yes
	Input for door contact	Yes
	Alarm/bell output	Yes
Environment	Operating temperature	0°C to +55°C / +32°F to +131°F
	Moisture resistance	No – if used externally, must be protected in a weatherproof housing
	Vandal resistance	Low

Paxton PSU Datasheet	Click here to download
Paxton Net2 Controller Datasheet	Click here to download

Overview

Features

Technical Data

Category	Specification	Details
System Specifications	Maximum total users/tokens	50,000
	PIN length	4–8
	Number of codes	50
	Code length	4–8
	Number of time zones	64
	Number of access levels	250
	Stored events	2500+
	Data retention during total power loss	30 days
	Handsfree compatible	Yes – requires interface
	Clock and data	Yes
	26 bit Wiegand	Yes (Max 50 bits)
	Custom Wiegand	Yes (Max 50 bits)
	Silent operation	Yes
	Door open time	1 sec – 5000 secs
Electrical	Operating voltage	12VDC ±20% or 24VDC ±20%
	Current consumption	200mA @ 12VDC
	Relay switchable voltage	24V DC
	Relay switchable current	4A max
	Alarm output current	1A
Communication	TCP/IP	Yes (Maximum 200 including other ethernet devices – AirBridges, I/O Boards)
	Wireless	No
	RS485	Yes
	Ethernet network speed	100Mbit/s auto MIDX
	Ethernet bandwidth requirement	200 kbit/sec
	DHCP support (fixed IP recommended)	Yes
Hardware	Reader ports per ACU	2
	Readers/keypads per ACU	4 – check current draw on individual readers
	Total ACU reader port output current	500mA
	3rd party reader support	Yes – if compatible
	Reader cable type	Belden 9540
	Network cable type	CAT5 or Belden 8723
Features	Input for exit button	Yes
	Input for door contact	Yes
	Alarm/bell output	Yes
Environment	Operating temperature	0°C to +55°C / +32°F to +131°F
	Moisture resistance	No – if used externally, must be protected in a weatherproof housing
	Vandal resistance	Low
