Paxton 337-282 Net2 Entry Standard Monitor

Name: Paxton 337-282 Net2 Entry Standard Monitor
Brand: Paxton
Price: 303.18 GBP
Availability: InStock

Code: FDS331/509

£303.18

INC VAT

Code: FDS331/509

In stock
Typically dispatched in 1-2 working days

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

The Paxton 337-282 Net2 Entry is a door entry system that works standalone or alongside Paxton's Net2 access control, combining door entry with key features of Net2.

The 337-282 consists of 3 components that auto-detect on set-up, an external panel, an interior monitor and a door control unit.

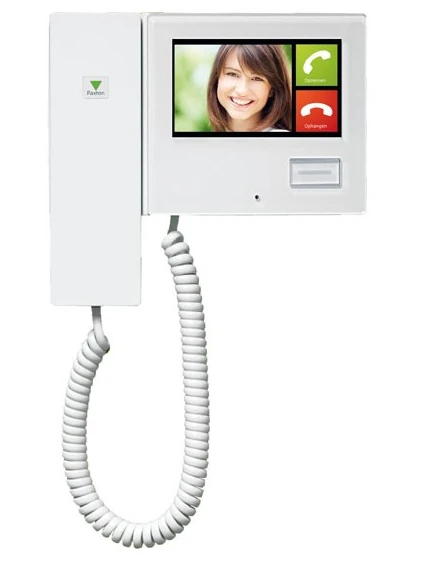

The Net2 Entry monitor comes in a smart and simple design to suit a range of interiors, and can be wall or desk mounted.

Paxton 337-282
Net2 Entry Standard Monitor
Intuitive, colour touchscreen internal monitor
Can be used via handset for private calls or in hands free mode
Can be wall or desk mounted
IP and PoE technology for easy expansion
No need for specialist wiring diagrams
Video voicemail option

Category	Specification	Details
System Specifications	Power over Ethernet (PoE)	Yes – IEEE 802.3af class 0
	Ethernet bandwidth requirement	1Mb/s multicast per panel during call
	Monitors per system	≤ 1000
	TCP/IP Ethernet extension limit	100m / 328ft
	Cable type	CAT5
	Current consumption	2.6W (Average), 3.2W (Max)
Hardware Features	Audio system	Full Duplex
	Screen	Colour LED, capacitive touch screen
	Screen size	4.3", 16:9
	Screen resolution	480 × 272
	Door bell input	2 wire, with illumination supported
	LED status indicator	RGB LED: Answer call - Green, Open door - Flashing Green, Doorbell - Blue, Missed calls & Messages - Red
	Back lighting colour	White
	Action buttons	Yes
	Sounder beacon relay	Yes, 2A
	Line out for T-loop antenna	Yes
Software Features	Selectable ringtones	Yes
	Do Not Disturb function	Yes
	Call snapshot	Yes
	Built-in help menu	Yes
	View video mode	Yes
	Concierge compatible	Yes
	Call log events	100
Environment	Operating temperature	0°C to +49°C / +32°F to +120°F
	Moisture resistance	No
	Vandal resistance	Low
	Surface mount	Yes
	Backbox compatibility	UK, Euro, USA
Accessories	Desktop stand	Optional

Paxton 337-282 Net2 Entry Standard Monitor Datasheet

Click here to download

Overview

Features

Technical Data

Category	Specification	Details
System Specifications	Power over Ethernet (PoE)	Yes – IEEE 802.3af class 0
	Ethernet bandwidth requirement	1Mb/s multicast per panel during call
	Monitors per system	≤ 1000
	TCP/IP Ethernet extension limit	100m / 328ft
	Cable type	CAT5
	Current consumption	2.6W (Average), 3.2W (Max)
Hardware Features	Audio system	Full Duplex
	Screen	Colour LED, capacitive touch screen
	Screen size	4.3", 16:9
	Screen resolution	480 × 272
	Door bell input	2 wire, with illumination supported
	LED status indicator	RGB LED: Answer call - Green, Open door - Flashing Green, Doorbell - Blue, Missed calls & Messages - Red
	Back lighting colour	White
	Action buttons	Yes
	Sounder beacon relay	Yes, 2A
	Line out for T-loop antenna	Yes
Software Features	Selectable ringtones	Yes
	Do Not Disturb function	Yes
	Call snapshot	Yes
	Built-in help menu	Yes
	View video mode	Yes
	Concierge compatible	Yes
	Call log events	100
Environment	Operating temperature	0°C to +49°C / +32°F to +120°F
	Moisture resistance	No
	Vandal resistance	Low
	Surface mount	Yes
	Backbox compatibility	UK, Euro, USA
Accessories	Desktop stand	Optional
