Eaton EFXD05001 xDetect Loop Card 1L Protocol 800

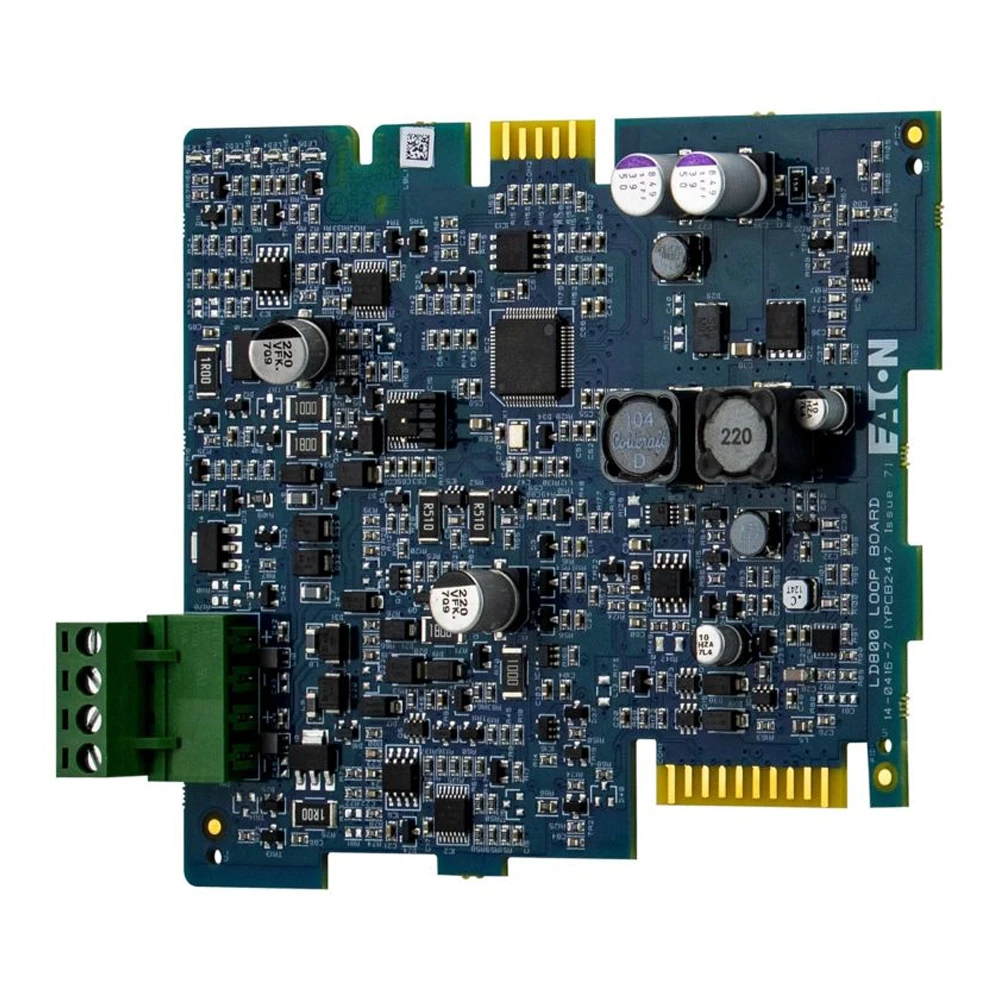

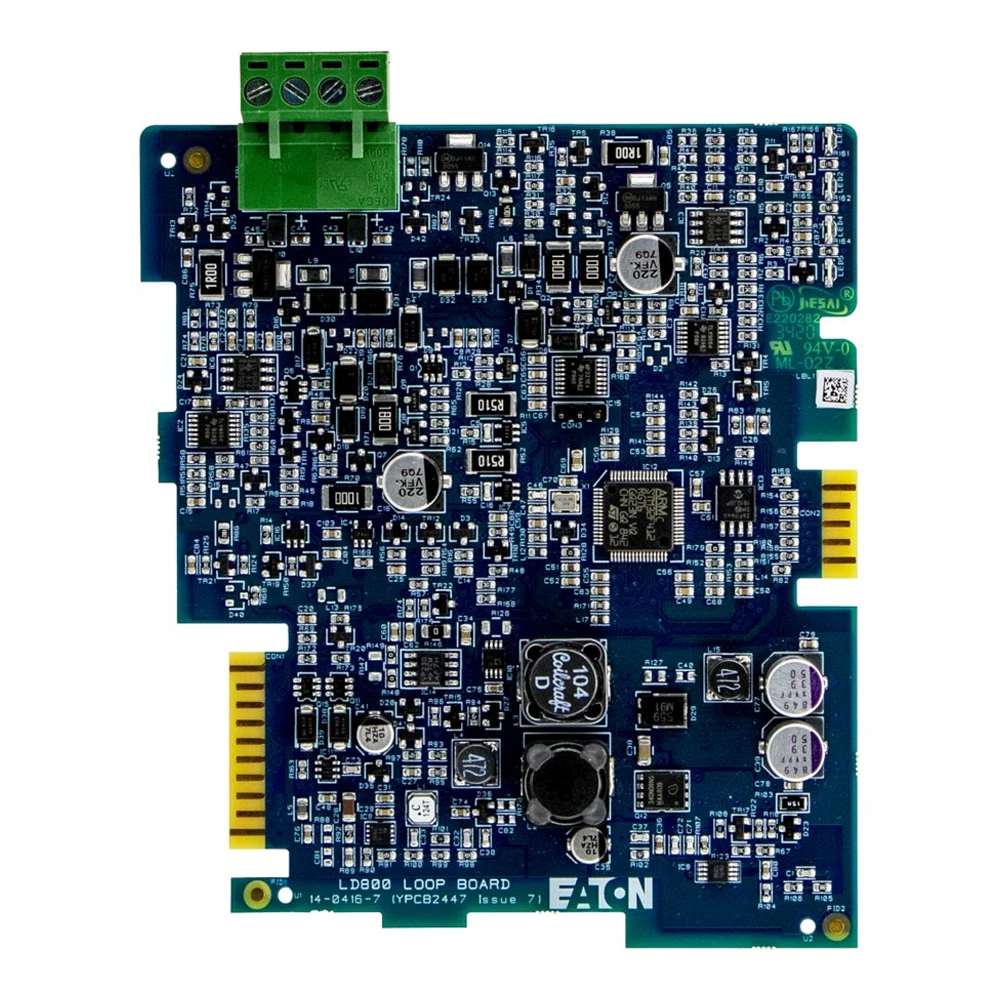

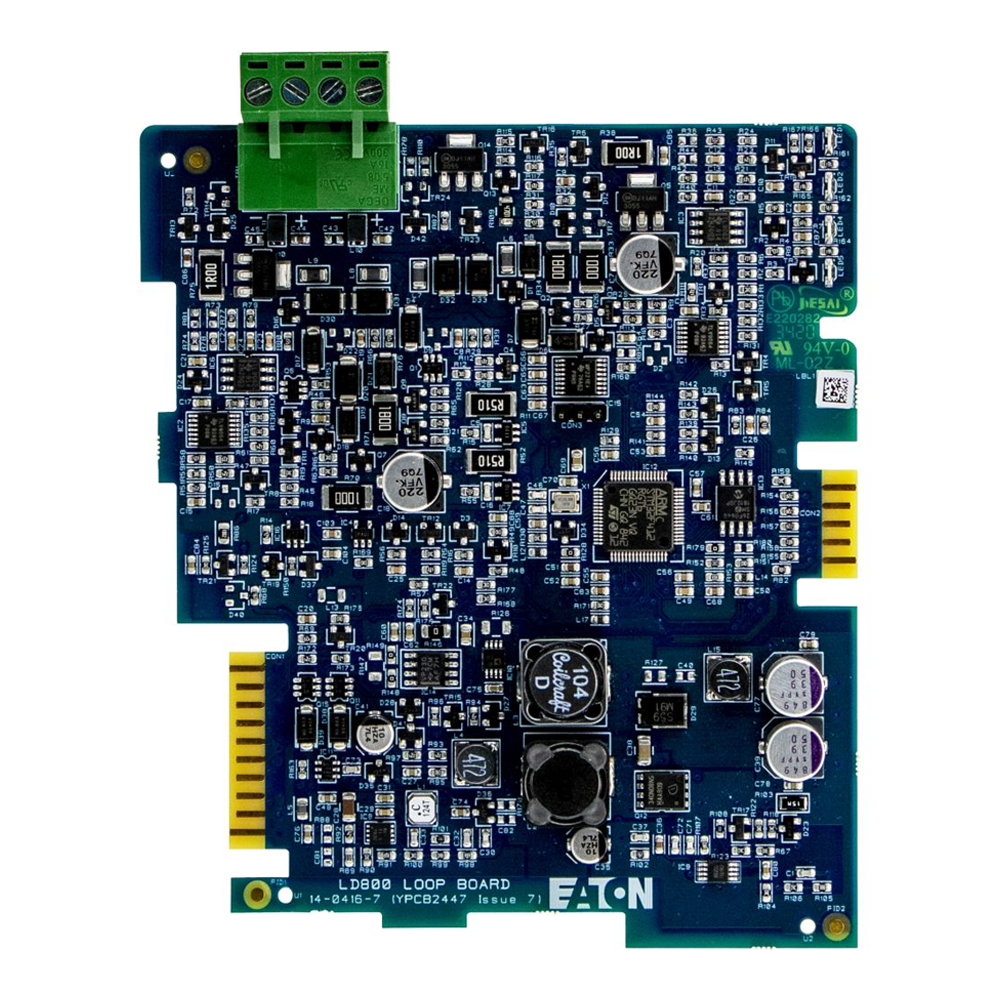

The Eaton EFXD05001 xDetect Loop Card 1L Protocol 800 is a modular addressable loop card designed for use with Eaton xDetect fire alarm control panels. It provides Protocol 800 loop connectivity, allowing compatible addressable fire alarm devices to communicate with the control panel as part of a scalable xDetect system.

Designed as part of the xDetect modular card architecture, the EFXD05001 supports flexible system configuration across compatible small and large xDetect enclosures. Each loop card provides 1 addressable loop and supports up to 200 addressable points per loop, with a maximum loop load of 600mA.

The card-based design helps simplify installation, maintenance and future upgrades. xDetect modular cards are colour coded for easier identification in the field and include local status LEDs, helping engineers identify card status and support faster fault finding during service or commissioning work.

The EFXD05001 is suitable for new xDetect installations, system expansions or replacement requirements where an additional Protocol 800 loop card is needed. It forms part of the wider Eaton xDetect ecosystem, which supports modular expansion, xDetectWorks programming and compatible Eaton addressable devices.

• EFXD05001

• xDetect Loop Card 1L Protocol 800

• Provides 1 addressable loop

• Supports up to 200 addressable points per loop

• 600mA maximum load per loop

• Designed for Eaton xDetect modular fire alarm panels

• Colour coded card design for easier identification

• Local status LEDs support maintenance and fault finding

• Suitable for system expansion or replacement requirements

• Compatible with xDetect small and large panel architecture
