Eaton EFXD01022 xDetect 2 Loop Addressable CIE Fire Alarm Panel

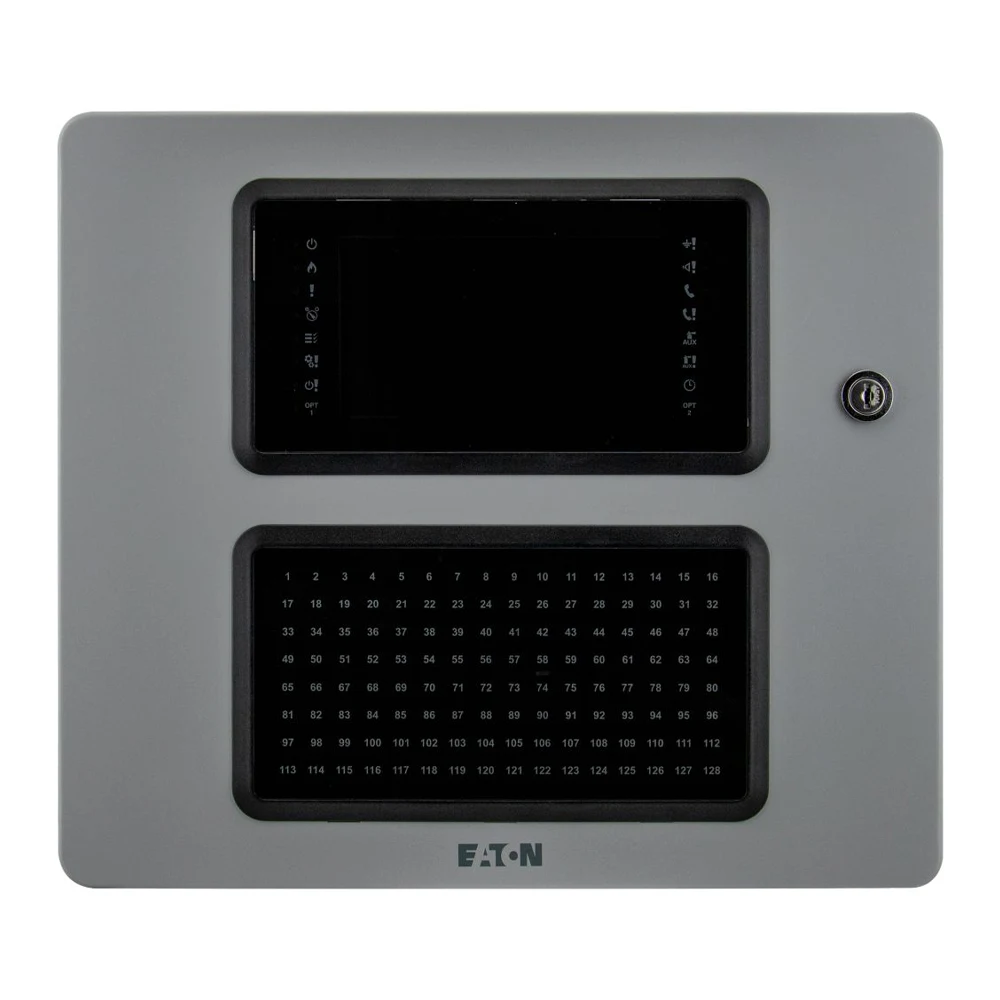

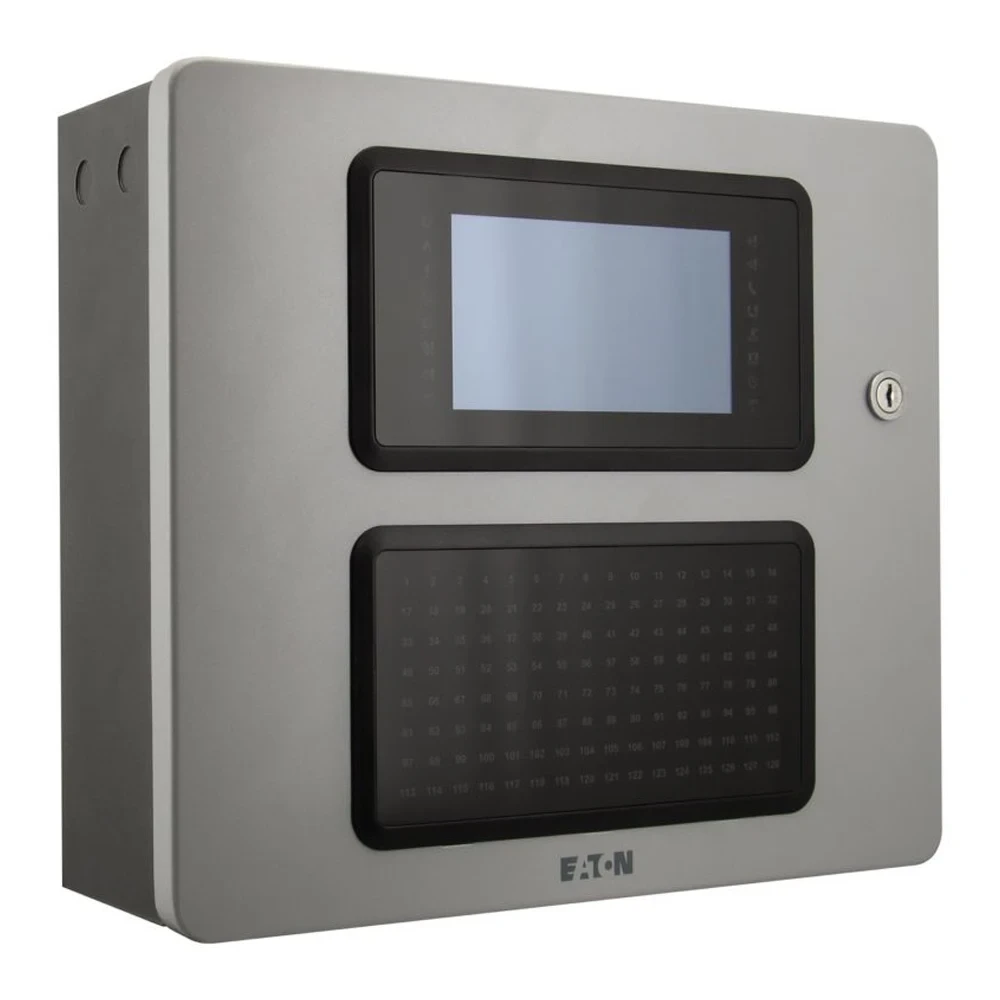

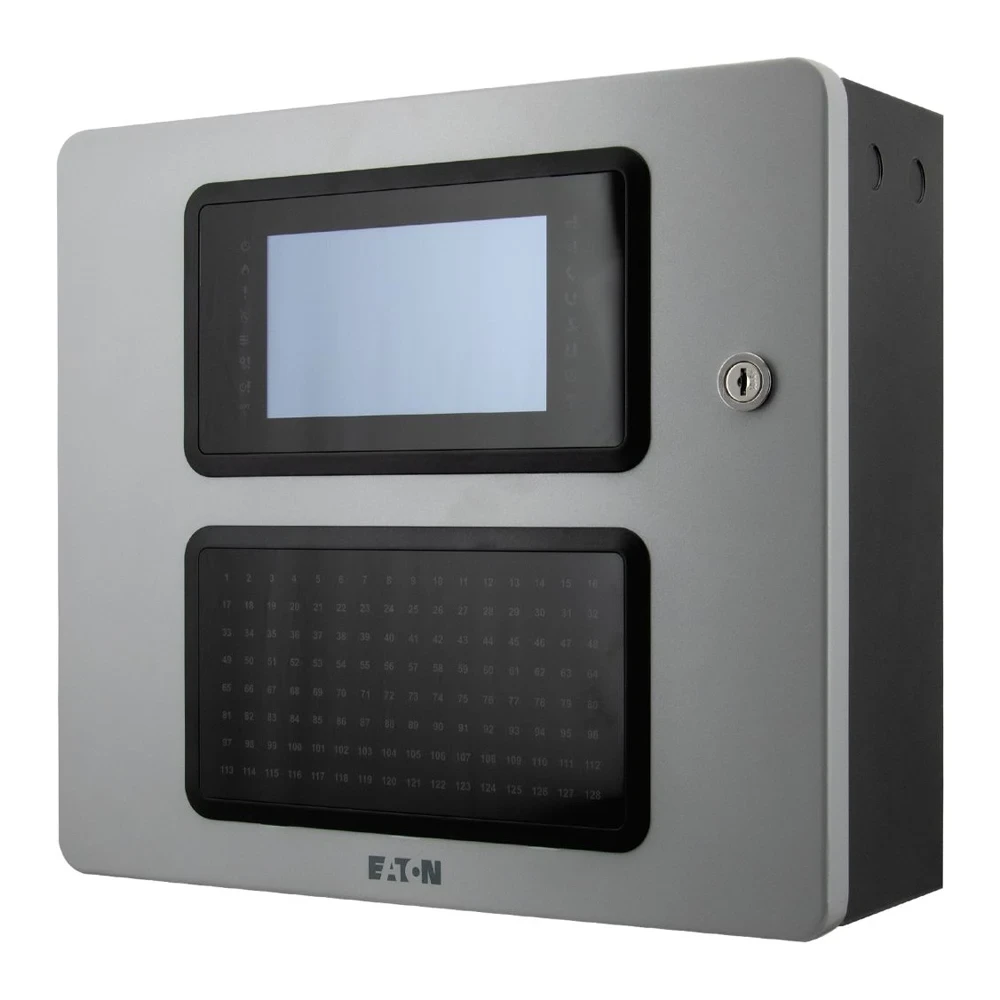

The Eaton EFXD01022 xDetect Addressable CIE Panel is a small enclosure fire alarm control panel designed for 1 to 2 loop addressable systems. It includes a 128 zonal indicator and forms part of Eaton’s xDetect range, providing a modular, scalable control solution for commercial fire alarm installations.

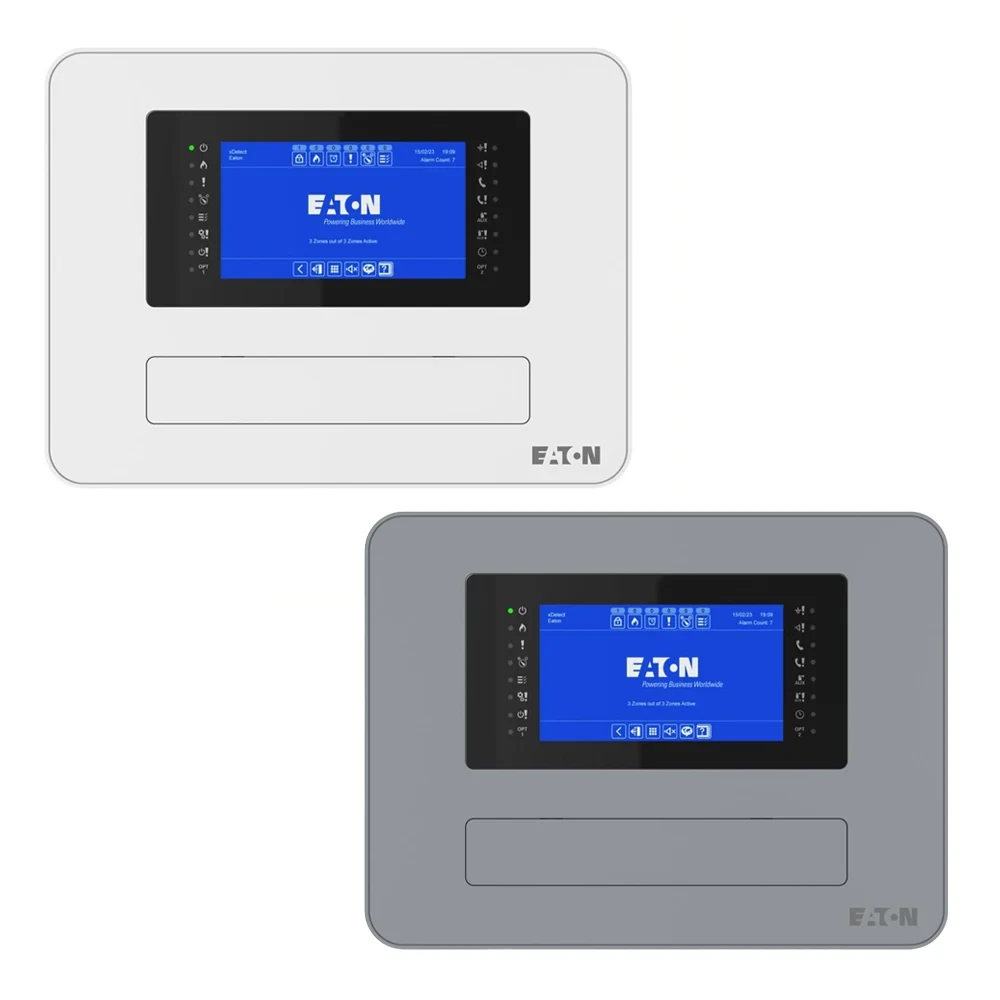

The panel features a 7” colour touchscreen with a high-contrast, colour-coded interface designed to make system operation clearer for engineers, facility managers and end users. Its interface uses familiar icons, large buttons and status-based colour coding to help users identify normal, fault and fire conditions more easily.

Designed around modular system architecture, the EFXD01022 is supplied with 1 gateway card and 1 loop 1L Protocol 800 card pre-fitted. It supports up to 200 addressable points per loop, up to 400 addressable points per CIE and up to 1,000 zones per CIE, giving installers flexibility for small to medium addressable fire alarm systems.

The xDetect platform supports a fault tolerant ring network design with built-in isolators, allowing networked systems of up to 250 panels. Each loop can support up to 600mA maximum load, helping reduce the number of loops required for higher powered devices.

Approved to EN54-2 and EN54-4 and LPCB accredited under 378q/03, the Eaton EFXD01022 is suitable for addressable fire alarm installations where compliance, scalability and a clear user interface are required.

• Suitable for 1 to 2 loop systems

• Includes 128 zonal indicator

• 7” colour touchscreen interface

• Up to 200 addressable points per loop

• Up to 400 addressable points per CIE

• 600mA maximum load per loop

• EN54-2 and EN54-4 approved

• LPCB accredited under 378q/03
