The C-TEC 2 Zone AlarmSense Bi-Wire Fire Alarm Kit (with Sounder Beacons) provides a complete solution for starting a conventional fire alarm installation.

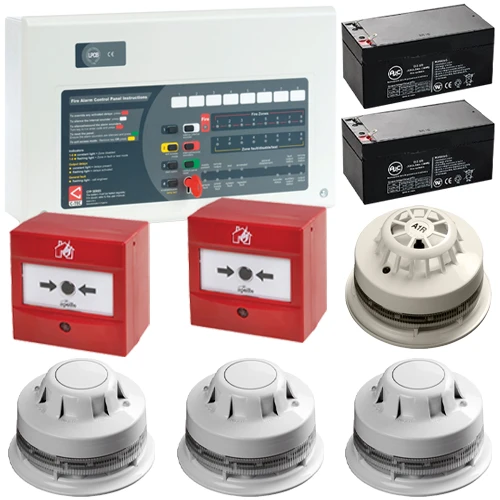

Kit Contains

1 × C-TEC CFP702-2 Two Zone AlarmSense Bi-Wire Fire Alarm Panel
3 × Apollo 55000-394APO AlarmSense Optical Smoke Detector with Sounder Visual Indicator Base
1 × Apollo 55000-198APO AlarmSense A1R Heat Detector with Sounder Visual Indicator Base
2 × Apollo 55400-894APO AlarmSense Manual Call Points
2 × 12V 3.2Ah Backup Batteries

Built around the C-TEC AlarmSense control panel and Apollo AlarmSense field devices, the system allows detectors and sounder beacons to operate on the same two-core circuit.

This bi-wire technology simplifies wiring, reduces installation time and helps lower installation costs.

The kit includes smoke and heat detection with integrated sounder beacon bases, manual call points and standby batteries, providing installers with the essential components required to establish reliable fire detection and combined audible and visual alarm signalling.

It is suitable for smaller commercial premises and similar environments where clear audible and visual alarm indication is required.

Complete 2 zone conventional fire alarm starter kit with sounder beacons
AlarmSense bi-wire technology allows detectors and sounders on the same circuit
Combined sounder beacon bases provide audible and visual alarm indication
Reduced cabling requirements for faster installation
C-TEC CFP control panel certified to EN54-2 and EN54-4
Optical smoke detection with integrated sounder beacon base
A1R heat detection with integrated sounder beacon base
Manual call points for manual alarm activation
Supplied with standby batteries for backup power
Suitable for small to medium commercial installations

C-TEC CFP 2 Zone AlarmSense Bi-Wire Fire Alarm Panel Technical Detail
Approvals/certifications	Certified to EN54-2 & 4 by the LPCB.
Mains supply	230V 50/60Hz.
Mains rated current	350mA maximum.
Internal power supply	19V-28.5V (27V nominal). Ripple 7V maximum (battery fault).
Total output current limited to	1.5A @ 230Vac (ImaxA eq 146mA).
Quiescent current	25mA (mains failed, internal sounder active, PSU & gen fault LED lit)
Max battery size and type	2 x 12V 3.2Ah VRLA connected in series. Min. battery size 1.2Ah.
No. of detector zone circuits	The CFP702-2 has 2 AlarmSense zone circuits which are compatible with Apollo's AlarmSense range of detectors & call points AND sounders & visual indicators. (Max. length per circuit is 500m).
Call point resistor value	Only use AlarmSense call points.
Max. devices per detector zone	25 AlarmSense detectors/manual call points per AlarmSense zone. For AlarmSense sounder limitations per AlarmSense zone see 'Max. sounder output current' section.
No. of conventional sounder circuits	4 – these are additional conventional (non-AlarmSense) sounder circuits; Max. length per circuit is 500m.
EOL resistor value	6800Ω 5% Tol. 0/25W (blue, grey, red, gold).
Alarm voltage	27V max, 20V min (final battery voltage)
Auxiliary relays	Two: (1) Aux. Fire; (2) Fault. Volt free single pole changeover. Max. switch current 1A; Max. switch voltage 30Vdc.
Open collector outputs	Two: (1) Reset (Active during reset cycle); (2) Remote (Active during any unsilenced fire condition provided all relevant delays have expired). Max. sink current 30mA, Max. open circuit volt
Other outputs	24V Aux. Power (Protected by a resettable fuse. 100mA min. hold current. Resets when fault removed).
Auxiliary inputs	Two: (1) ‘Class Change’ (constant sounders); (2) Alert (pulsed sounders). Connect to 0V to trigger, Max. input voltage 27V (non-latching)
Engineer (AL3) functions	Program coincidence (double knock); Invoke One Man Walk Test; Program delays; Set up zones for non-latching operation; Program sounders to resound (or not resound)
Expansion connections	Yes – for optional network driver cards (one required per repeater system), relay output cards and EN54-13 sounder circuit interface boards.
Product dimensions (mm)	380 W x 235 H x D 96mm (hole required for flush mounting = 367 W x 220 H x 75 D mm. No bezel required).
Construction & finish	Plastic lid and base; RAL7035 textured
IP Rating	IP30.
Weight	1.75kg (without batteries)

C-TEC 2 Zone AlarmSense Bi-Wire Fire Alarm Panel Datasheet	Click here to download
AlarmSense Optical Smoke Detector Datasheet	Click here to download
AlarmSense Heat Detector Datasheet	Click here to download
AlarmSense Manual Call Points Datasheet	Click here to download

Overview

Features

Technical Data

C-TEC CFP 2 Zone AlarmSense Bi-Wire Fire Alarm Panel Technical Detail
Approvals/certifications	Certified to EN54-2 & 4 by the LPCB.
Mains supply	230V 50/60Hz.
Mains rated current	350mA maximum.
Internal power supply	19V-28.5V (27V nominal). Ripple 7V maximum (battery fault).
Total output current limited to	1.5A @ 230Vac (ImaxA eq 146mA).
Quiescent current	25mA (mains failed, internal sounder active, PSU & gen fault LED lit)
Max battery size and type	2 x 12V 3.2Ah VRLA connected in series. Min. battery size 1.2Ah.
No. of detector zone circuits	The CFP702-2 has 2 AlarmSense zone circuits which are compatible with Apollo's AlarmSense range of detectors & call points AND sounders & visual indicators. (Max. length per circuit is 500m).
Call point resistor value	Only use AlarmSense call points.
Max. devices per detector zone	25 AlarmSense detectors/manual call points per AlarmSense zone. For AlarmSense sounder limitations per AlarmSense zone see 'Max. sounder output current' section.
No. of conventional sounder circuits	4 – these are additional conventional (non-AlarmSense) sounder circuits; Max. length per circuit is 500m.
EOL resistor value	6800Ω 5% Tol. 0/25W (blue, grey, red, gold).
Alarm voltage	27V max, 20V min (final battery voltage)
Auxiliary relays	Two: (1) Aux. Fire; (2) Fault. Volt free single pole changeover. Max. switch current 1A; Max. switch voltage 30Vdc.
Open collector outputs	Two: (1) Reset (Active during reset cycle); (2) Remote (Active during any unsilenced fire condition provided all relevant delays have expired). Max. sink current 30mA, Max. open circuit volt
Other outputs	24V Aux. Power (Protected by a resettable fuse. 100mA min. hold current. Resets when fault removed).
Auxiliary inputs	Two: (1) ‘Class Change’ (constant sounders); (2) Alert (pulsed sounders). Connect to 0V to trigger, Max. input voltage 27V (non-latching)
Engineer (AL3) functions	Program coincidence (double knock); Invoke One Man Walk Test; Program delays; Set up zones for non-latching operation; Program sounders to resound (or not resound)
Expansion connections	Yes – for optional network driver cards (one required per repeater system), relay output cards and EN54-13 sounder circuit interface boards.
Product dimensions (mm)	380 W x 235 H x D 96mm (hole required for flush mounting = 367 W x 220 H x 75 D mm. No bezel required).
Construction & finish	Plastic lid and base; RAL7035 textured
IP Rating	IP30.
Weight	1.75kg (without batteries)
