Build a wireless addressable fire alarm system with the Apollo Reach System Builder, featuring the Kentec Syncro AS Lite addressable control panel and Apollo REACH Wireless Loop Interface Module (XP95).
This setup provides a robust foundation for creating a fully customised wireless fire detection system using Apollo’s REACH technology.
Ideal for projects where cabling is limited or disruptive, the Kentec panel offers proven reliability, while the interface module enables smooth integration with a range of Apollo wireless field devices.

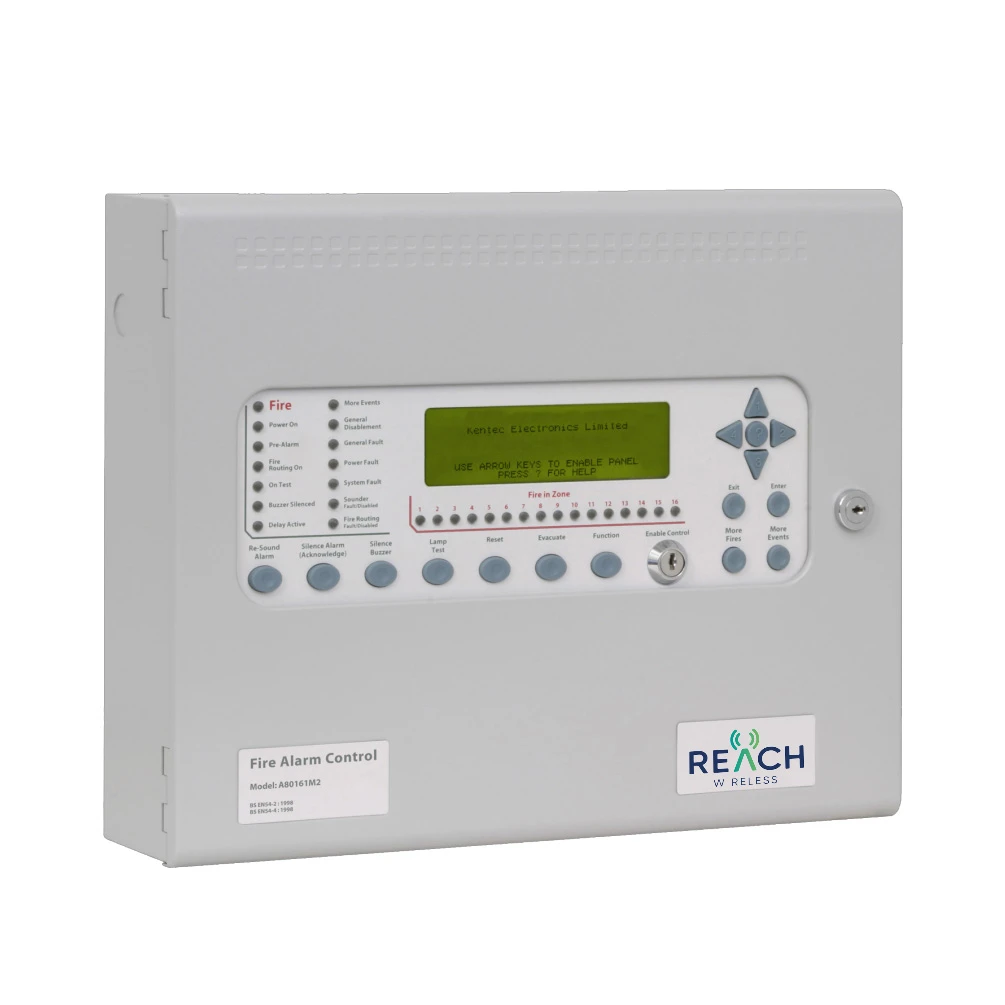

Kentec Syncro AS Lite addressable control panel with key switch
Apollo RW1700-030APO REACH Wireless Loop Interface Module – XP95
Supports wireless addressable detection, call points, and sounders
Suitable for commercial properties, retrofit installations, and heritage buildings
Easily expand your system using Apollo REACH components
Construction | 1.2mm mild sheet steel |
IP Rating | IP30 |
Finish | Epoxy powder coated |
Colour - Lid & Box | BS 00 A 05 grey - fine texture |
Colour - Control Plates & Labels | RAL 7047 light grey - satin |
Weight | 6kg (standard panel) |
Display | 8 lines of 40 characters graphic LCD |
Mains Voltage Supply | 110 or 230V AC 50 or 60 Hz (specify when ordering, default is 230V) |
Mains Supply Fuse | 1.6A 250V |
Power Supply DC Rating | 24V 3 Amps Aux 25V supply (Fused at 500mA) |
Maximum Battery Size | 9Ah 12V (2 per panel) (non-networked) |
Fault Contact Rating | 30V DC 1 Amp |
Fire Contact Rating | 30V DC 1 Amp |
Alarm Contact Rating | 30V DC 1 Amp |
Sounder Output Rating | Fused at 1 Amp each |
Detection Loop | 400mA output |
Detector Protocols | Apollo (S90, XP95, Discovery) |
Printer Port | Serial RS232 |
Serial Expansion Port | Not available |
PC Port | Serial RS232 |
Network Connection | Not available |
Remote Silence Input (SIL) | Switched -ve |
Remote Fault Input (FLT) | Switched -ve |
Remote Reset Input (RES) | Switched -ve |
Remote Alert Input (INT) | Switched -ve |
Remote Evacuate Input (CNT) | Switched -ve |
Download Lead | Standard S187, X187LS economy |
Configuration | Via Loop Explorer PC utility |
PC Graphics | Via Ockular |
Modem | Optional dial-up modem for remote diagnostics (Can be fitted to M3 size enclosure only) |
