Code: FDS372/342
INC VAT
Code: FDS372/342

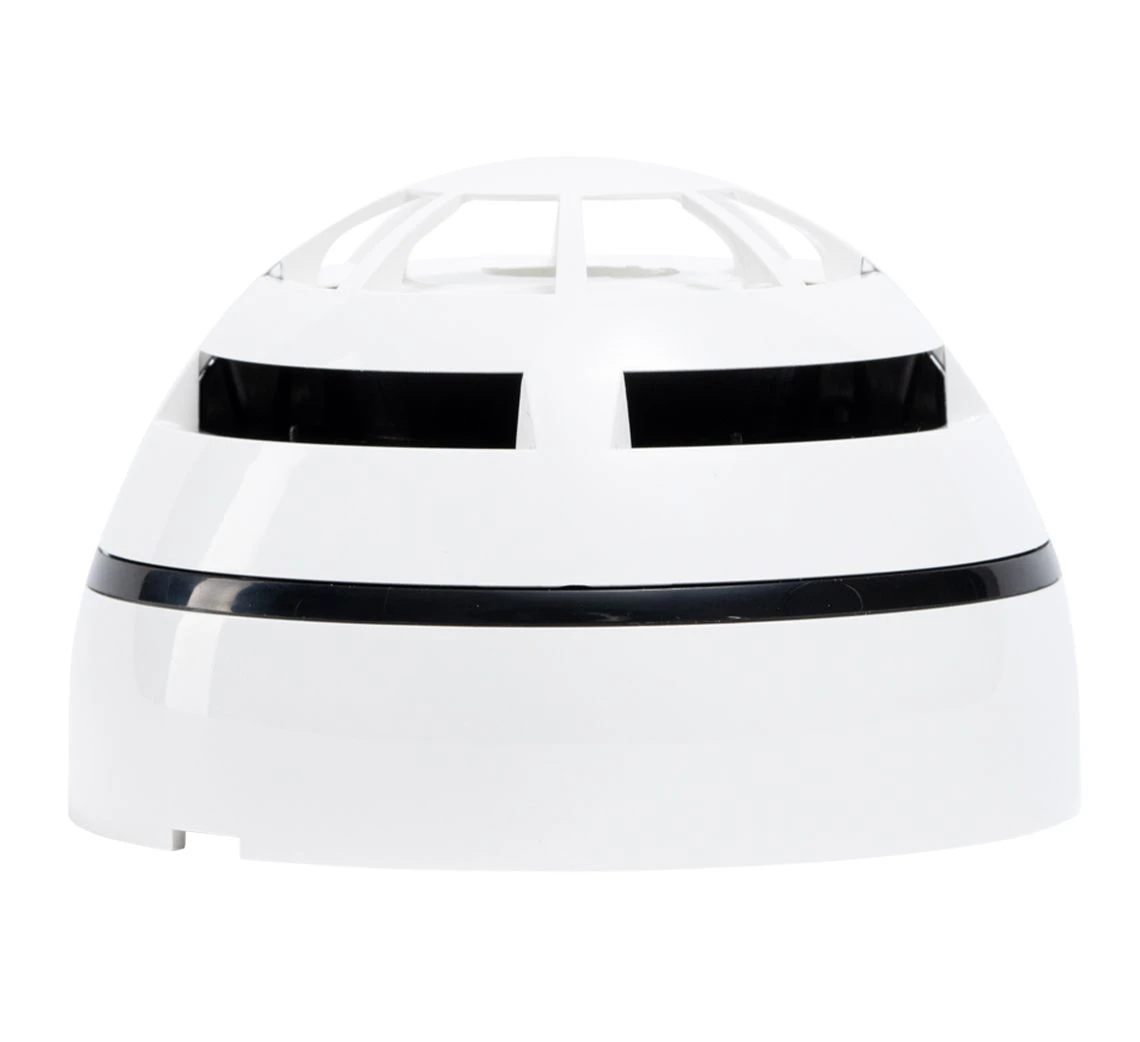

The Apollo RW1000-400APO REACH Wireless Heat Detector is a wireless analogue addressable heat detector designed for use with Apollo REACH fire alarm systems.
It provides reliable heat detection without the need for hard-wired connections, making it ideal for sites where cabling is impractical, disruptive or cost-prohibitive.
The detector can be configured as either a rate-of-rise (A1R) or static high temperature (BS) heat detector, in line with EN 54-5 classifications.
Configuration is carried out during the link phase using compatible configuration software or via the control panel keyboard and LCD interface.
Bi-directional wireless communication and dual channel redundancy ensure secure and resilient signal transmission between the detector and the REACH system.
With long battery life and clear visual indication, the RW1000-400APO offers a dependable wireless solution for commercial fire detection applications.
Twin alarm, bi-colour LEDs for 360 visibility
Programmable for rate-of-rise (A1R) or static temperature (BS)
Bi-directional wireless communication
Dual channel redundancy
Ten year battery life
Five year product warranty
Specification | Details |
|---|---|
Detection Principle | Single NTC thermistor |
Communication Range (Loop Interface to Device) | 100 m (open space) |
Field Device Radio Frequency | 22 pairs |
Channel Pairs | 22 |
Status LED | Green and Red |
Radiated Power | 14 dBm (25 mW) |
Battery Type | 2 × VARTA CR123A Lithium 3 V, 1250 mAh |
Battery Lifespan | Up to 10 years in normal operation with good signal strength (no dropped messages) |
Operating Temperature | -10°C to +55°C |
Maximum Relative Humidity | 95% (non-condensing) |
IP Rating | IP40 |
Dimensions | 110 mm diameter × 70 mm height |
Weight (including base and batteries) | 190 g |
The Apollo RW1000-400APO REACH Wireless Heat Detector is a wireless analogue addressable heat detector designed for use with Apollo REACH fire alarm systems.
It provides reliable heat detection without the need for hard-wired connections, making it ideal for sites where cabling is impractical, disruptive or cost-prohibitive.
The detector can be configured as either a rate-of-rise (A1R) or static high temperature (BS) heat detector, in line with EN 54-5 classifications.
Configuration is carried out during the link phase using compatible configuration software or via the control panel keyboard and LCD interface.
Bi-directional wireless communication and dual channel redundancy ensure secure and resilient signal transmission between the detector and the REACH system.
With long battery life and clear visual indication, the RW1000-400APO offers a dependable wireless solution for commercial fire detection applications.
Twin alarm, bi-colour LEDs for 360 visibility
Programmable for rate-of-rise (A1R) or static temperature (BS)
Bi-directional wireless communication
Dual channel redundancy
Ten year battery life
Five year product warranty
Specification | Details |
|---|---|
Detection Principle | Single NTC thermistor |
Communication Range (Loop Interface to Device) | 100 m (open space) |
Field Device Radio Frequency | 22 pairs |
Channel Pairs | 22 |
Status LED | Green and Red |
Radiated Power | 14 dBm (25 mW) |
Battery Type | 2 × VARTA CR123A Lithium 3 V, 1250 mAh |
Battery Lifespan | Up to 10 years in normal operation with good signal strength (no dropped messages) |
Operating Temperature | -10°C to +55°C |
Maximum Relative Humidity | 95% (non-condensing) |
IP Rating | IP40 |
Dimensions | 110 mm diameter × 70 mm height |
Weight (including base and batteries) | 190 g |
