Code: FDS372/357
INC VAT
Code: FDS372/357

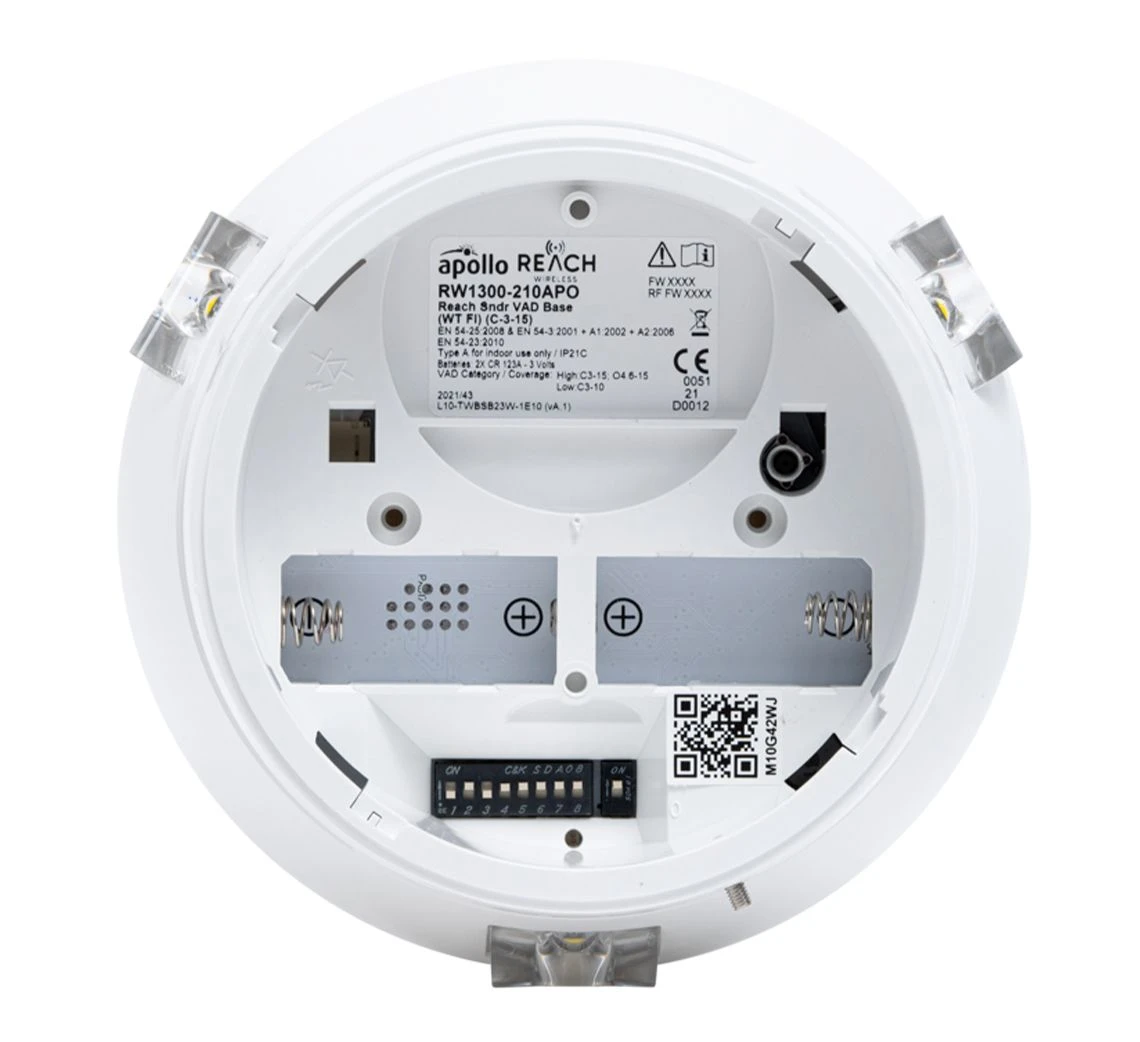

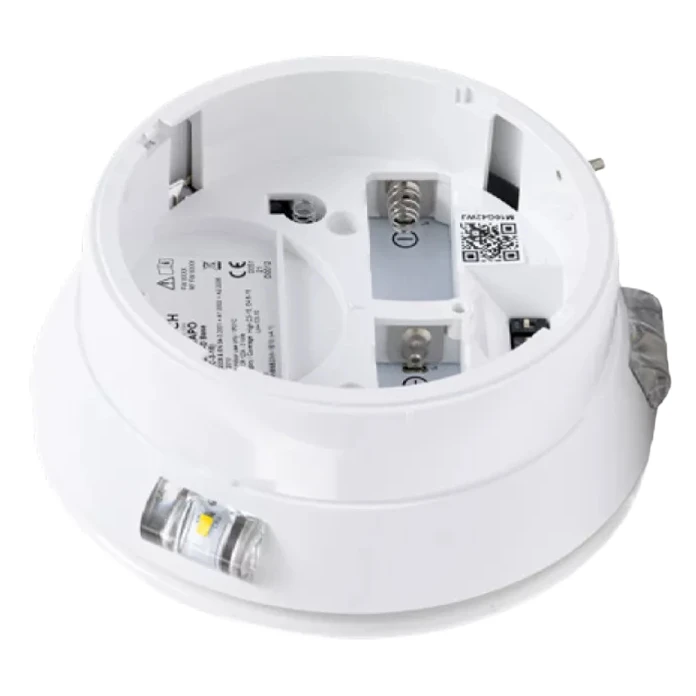

The Apollo RW1300-210APO REACH Wireless Sounder VAD Base – White Flash is a wireless, analogue addressable sounder and visual alarm device designed for use within Apollo REACH wireless fire alarm systems.
The unit can be installed as a stand-alone audible and visual notification device when used with a blanking cap, or combined with a REACH wireless detector to create an integrated sounder/VAD solution. This flexibility makes it ideal for both new installations and retrofit projects where minimal disruption and reduced cabling are required.
Secure bi-directional wireless communication and dual-channel redundancy ensure dependable alarm signalling, while the white visual flash provides clear visual indication to support audible alerts.
White Flash
16 tone pairs
Four Volume Settings
Bi-directional wireless communication
Dual channel redundancy
Five year battery life
Five year product warranty
Specification | Details |
|---|---|
Number of Tone Pairs | 16 (see tone table) |
Volume Levels | Four volume settings |
Sound Output (Typical) | 88–91 dBA (tone dependent) |
VAD Coverage Rating (EN54-23) | Configurable (see table) |
Flash Rate | 0.5 Hz |
Communication Range (Loop-Interface to Devices) | 100 m (open space) |
Field Device Radio Frequency Channel Pairs | 22 pairs |
Radiated Power | 14 dBm (25 mW) |
Battery Type | 2 × VARTA CR123A Lithium 3 V, 1250 mAh (typical) |
Battery Lifespan | Up to 5 years in normal operation with good signal strength (no dropped messages) |
Operating Temperature | -10°C to +55°C |
Maximum Relative Humidity (Non-condensing) | 95% |
IP Rating | IP21C (Type A indoor use) |
Dimensions | 129 mm diameter × 54 mm height |
Weight (Including Batteries) | 190 g |
The Apollo RW1300-210APO REACH Wireless Sounder VAD Base – White Flash is a wireless, analogue addressable sounder and visual alarm device designed for use within Apollo REACH wireless fire alarm systems.
The unit can be installed as a stand-alone audible and visual notification device when used with a blanking cap, or combined with a REACH wireless detector to create an integrated sounder/VAD solution. This flexibility makes it ideal for both new installations and retrofit projects where minimal disruption and reduced cabling are required.
Secure bi-directional wireless communication and dual-channel redundancy ensure dependable alarm signalling, while the white visual flash provides clear visual indication to support audible alerts.
White Flash
16 tone pairs
Four Volume Settings
Bi-directional wireless communication
Dual channel redundancy
Five year battery life
Five year product warranty
Specification | Details |
|---|---|
Number of Tone Pairs | 16 (see tone table) |
Volume Levels | Four volume settings |
Sound Output (Typical) | 88–91 dBA (tone dependent) |
VAD Coverage Rating (EN54-23) | Configurable (see table) |
Flash Rate | 0.5 Hz |
Communication Range (Loop-Interface to Devices) | 100 m (open space) |
Field Device Radio Frequency Channel Pairs | 22 pairs |
Radiated Power | 14 dBm (25 mW) |
Battery Type | 2 × VARTA CR123A Lithium 3 V, 1250 mAh (typical) |
Battery Lifespan | Up to 5 years in normal operation with good signal strength (no dropped messages) |
Operating Temperature | -10°C to +55°C |
Maximum Relative Humidity (Non-condensing) | 95% |
IP Rating | IP21C (Type A indoor use) |
Dimensions | 129 mm diameter × 54 mm height |
Weight (Including Batteries) | 190 g |
