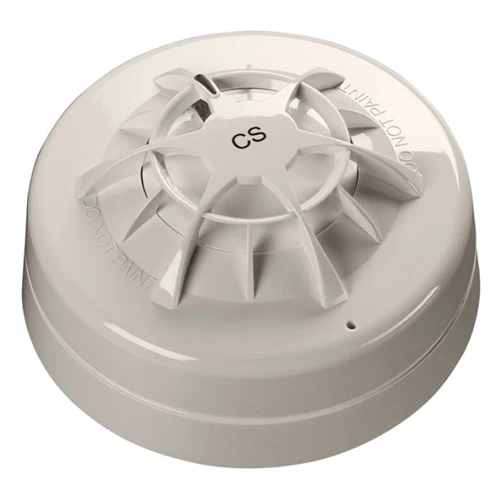

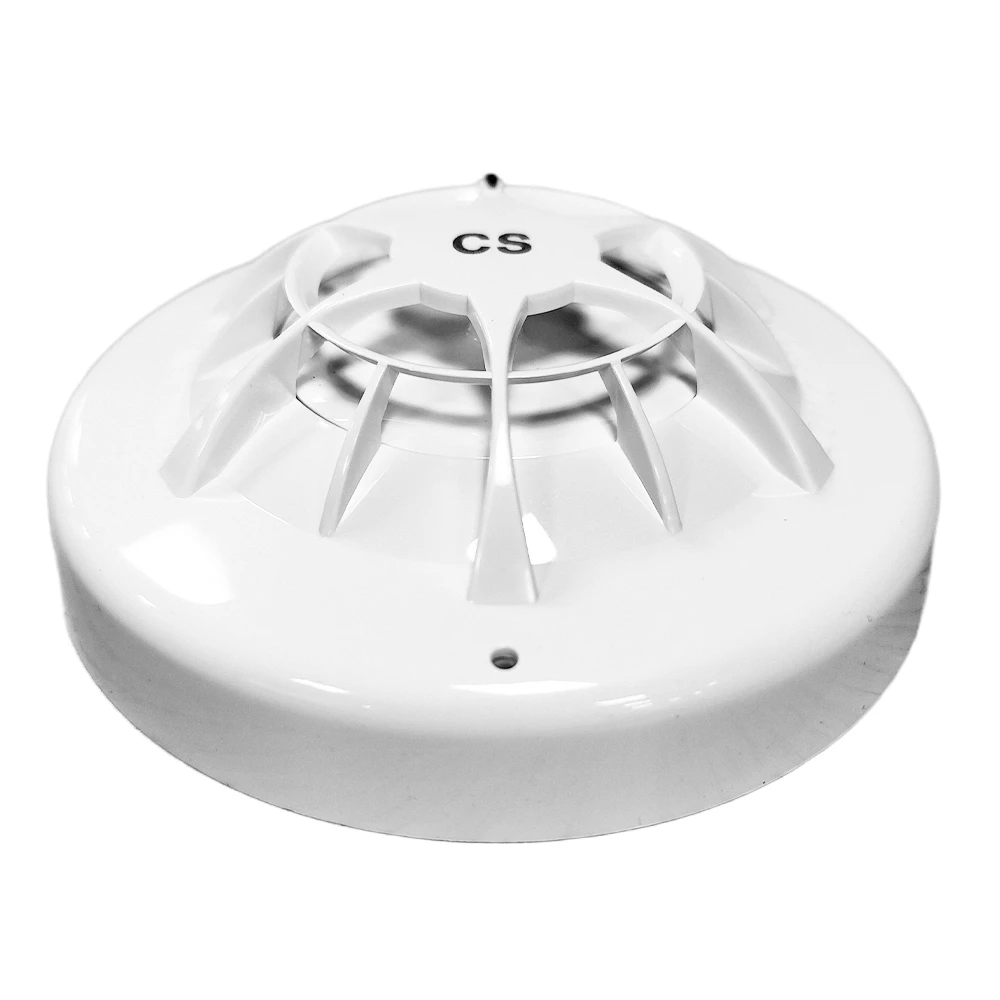

Apollo ORB-HT-41018-MAR Orbis Marine CS Heat Detector | Flashing LED

Name: Apollo ORB-HT-41018-MAR Orbis Marine CS Heat Detector | Flashing LED
Brand: Apollo
Price: 20.112 GBP
Availability: InStock

Code: FDS228/102

£20.11

INC VAT

Code: FDS228/102

In stock
Typically dispatched in 2-3 working days

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

The Apollo ORB-HT-41018-MAR Orbis Marine CS Heat Detector with flashing LED is designed for reliable fire detection in marine and high-humidity environments.

The CS heat classification provides a rate-of-rise response, allowing the detector to react quickly to rapidly increasing temperatures while remaining stable under normal operating conditions.

Integrated visual indication via the flashing LED supports easier identification during installation, testing and maintenance.

Advanced signal processing and transient rejection technology help minimise false alarms caused by short-term temperature fluctuations.

Apollo Orbis HT-41018-Mar
Flashing LED
Responds well to slow-burning, smouldering fires
Good performance in both black and white smoke
Transient rejection algorithms reduce false alarms
Automatic drift compensation with DirtAlert, a yellow flashing LED, to easily identify dirty detectors
Red flashing LED at StartUp confirms that the device is operating.
SensAlert, yellow flashing LED, indicates faulty operation
FasTest takes just 4 seconds to test and confirm detectors are functioning correctly
DustDefy system prevents dust ingress while maintaining airflow
Base supplied separately (please see related products below)

Specification	Details
Warranty	10 year
Suitable environments	Dusty environments
	Marine
Heat classification	CS
Colour	White
Weight	70 g
Housing material	Polycarbonate
Product length	36 mm
Product diameter	97 mm
Product length	1.42 in
Product diameter	3.82 in
Approvals	BV, LR, DNV.GL, CCS, ABS, MED
Maximum power-up time	< 20 seconds
Quiescent current	95 μA
Quiescent current tested at	24 V DC
Polarity	L1 & L2 are polarity sensitive
Minimum detector active voltage	6 V
Holding voltage	5 to 33 V
Holding voltage (max)	33 V
Holding voltage (min)	5 V
Minimum voltage to light alarm LED	5 V
Alarm reset voltage	< 1 V
Alarm reset time	1 s
Alarm load	600 Ω
Sampling frequency	Once every 4 seconds
Humidity (max)	98% RH
Humidity (min)	0% RH
Humidity note	No condensation or icing
Humidity	0% to 98% (no condensation or icing)
IP rating	IP44

Apollo ORB-HT-41018-MAR Datasheet

Click here to download

Overview

Features

Technical Data

Specification	Details
Warranty	10 year
Suitable environments	Dusty environments
	Marine
Heat classification	CS
Colour	White
Weight	70 g
Housing material	Polycarbonate
Product length	36 mm
Product diameter	97 mm
Product length	1.42 in
Product diameter	3.82 in
Approvals	BV, LR, DNV.GL, CCS, ABS, MED
Maximum power-up time	< 20 seconds
Quiescent current	95 μA
Quiescent current tested at	24 V DC
Polarity	L1 & L2 are polarity sensitive
Minimum detector active voltage	6 V
Holding voltage	5 to 33 V
Holding voltage (max)	33 V
Holding voltage (min)	5 V
Minimum voltage to light alarm LED	5 V
Alarm reset voltage	< 1 V
Alarm reset time	1 s
Alarm load	600 Ω
Sampling frequency	Once every 4 seconds
Humidity (max)	98% RH
Humidity (min)	0% RH
Humidity note	No condensation or icing
Humidity	0% to 98% (no condensation or icing)
IP rating	IP44
