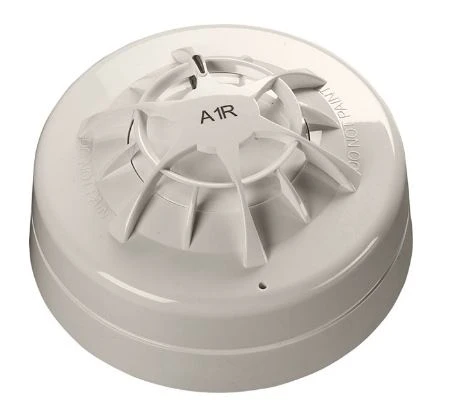

Apollo ORB-HT-41001-MAR Orbis Marine A1R Heat Detector

Name: Apollo ORB-HT-41001-MAR Orbis Marine A1R Heat Detector
Brand: Apollo
Price: 21.587999999999997 GBP
Availability: InStock

Code: FDS400/057

£21.59

INC VAT

Code: FDS400/057

In stock
Typically dispatched in 2-3 working days

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

The Apollo ORB-HT-41001-MAR Orbis Marine A1R Heat Detector is designed for reliable fire detection in marine and high-humidity environments.

It uses a single thermistor to continuously monitor the surrounding air temperature, providing dependable heat detection where smoke detectors may be unsuitable.

The detector is ideal for areas prone to dust, fumes or steam and incorporates transient rejection technology to reduce false alarms caused by brief temperature fluctuations.

Its low-profile, modern design allows discreet installation, while compatibility with the Orbis TimeSaver base helps reduce installation and commissioning time.

The detector is approved for marine use and operates reliably across a wide temperature range in challenging conditions.

Approved for use in marine environments
Modern, low-profile design
TimeSaver Base for fast installation
Transient rejection for false alarm reduction
High humidity tolerance at up to 98% RH
Wide operating temperature -40C to +70C

Specification	Details
Warranty	10 year
Suitable environments	Dusty environments
	Marine
Heat classification	A1R
Colour	White
Weight	70 g
Housing material	Polycarbonate
Product length	36 mm
Product diameter	97 mm
Product length	1.42 in
Product diameter	3.82 in
Approvals	BV, LR, DNV.GL, CCS, ABS, MED
Maximum power-up time	< 20 seconds
Quiescent current	95 μA
Quiescent current tested at	24 V DC
Polarity	L1 & L2 are polarity sensitive
Minimum detector active voltage	6 V
Holding voltage	5 to 33 V
Holding voltage (max)	33 V
Holding voltage (min)	5 V
Minimum voltage to light alarm LED	5 V
Alarm reset voltage	< 1 V
Alarm reset time	1 s
Alarm load	600 Ω
Sampling frequency	Once every 4 seconds
Humidity (max)	98% RH
Humidity (min)	0% RH
Humidity note	No condensation or icing
Humidity	0% to 98% (no condensation or icing)
IP rating	IP44

Apollo ORB-HT-41001-MAR Datasheet

Click here to download

Overview

Features

Technical Data

Specification	Details
Warranty	10 year
Suitable environments	Dusty environments
	Marine
Heat classification	A1R
Colour	White
Weight	70 g
Housing material	Polycarbonate
Product length	36 mm
Product diameter	97 mm
Product length	1.42 in
Product diameter	3.82 in
Approvals	BV, LR, DNV.GL, CCS, ABS, MED
Maximum power-up time	< 20 seconds
Quiescent current	95 μA
Quiescent current tested at	24 V DC
Polarity	L1 & L2 are polarity sensitive
Minimum detector active voltage	6 V
Holding voltage	5 to 33 V
Holding voltage (max)	33 V
Holding voltage (min)	5 V
Minimum voltage to light alarm LED	5 V
Alarm reset voltage	< 1 V
Alarm reset time	1 s
Alarm load	600 Ω
Sampling frequency	Once every 4 seconds
Humidity (max)	98% RH
Humidity (min)	0% RH
Humidity note	No condensation or icing
Humidity	0% to 98% (no condensation or icing)
IP rating	IP44
