Apollo ORB-HT-41006-MAR Orbis Marine CS Heat Detector

Name: Apollo ORB-HT-41006-MAR Orbis Marine CS Heat Detector
Brand: Apollo
Price: 21.587999999999997 GBP
Availability: InStock

Code: FDS100/670

£21.59

INC VAT

Code: FDS100/670

In stock
Typically dispatched in 2-3 working days

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

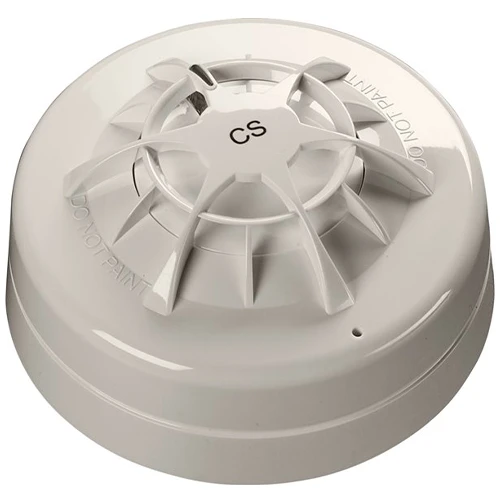

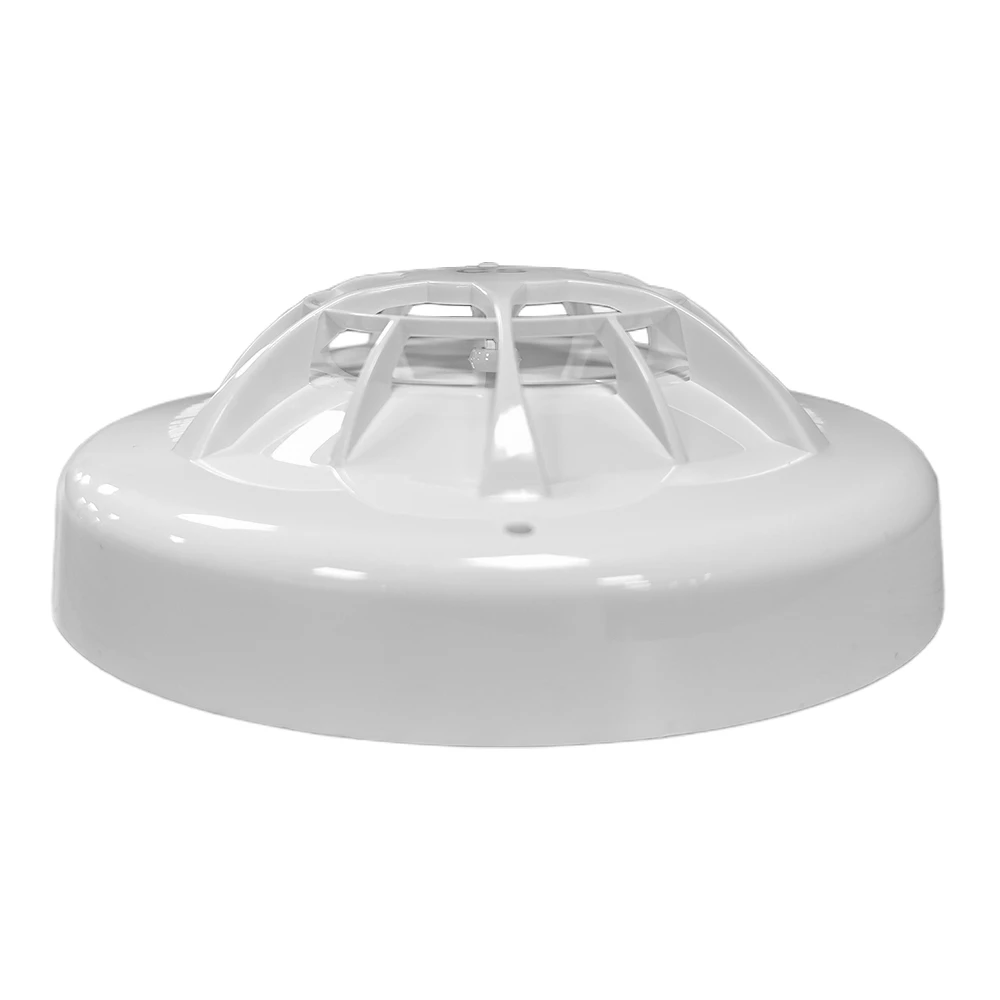

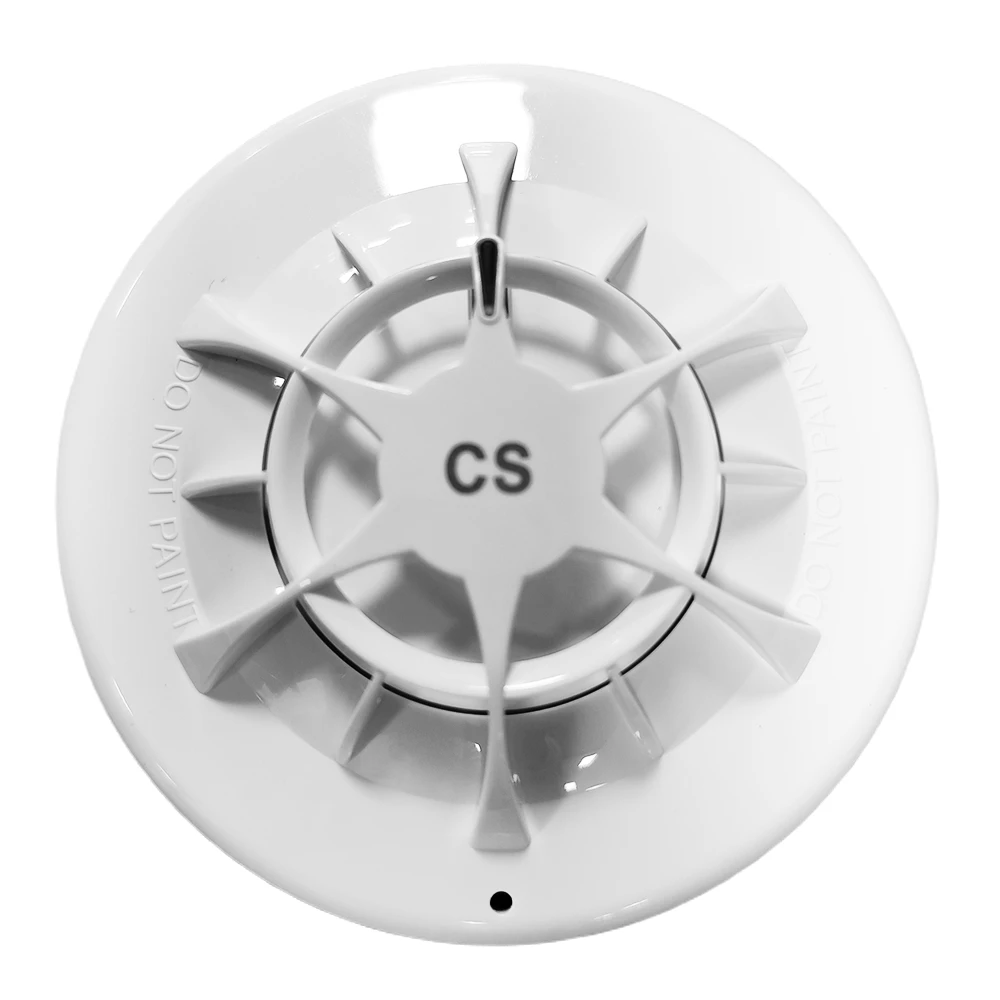

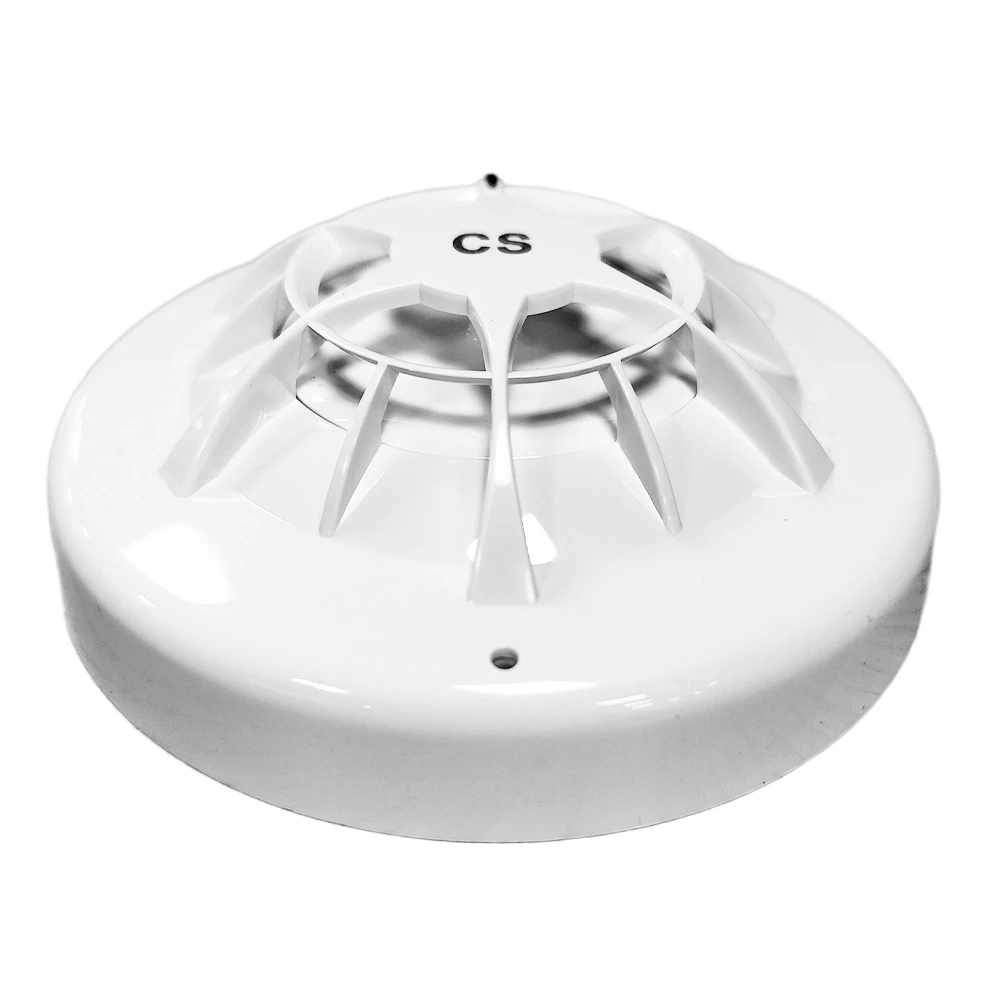

The Apollo ORB-HT-41006-MAR Orbis Marine CS Heat Detector is designed for reliable fire detection in marine and high-humidity environments.

It uses a single thermistor to continuously monitor the surrounding air temperature, making it suitable for applications where smoke detectors may be unreliable due to dust, fumes or airborne contaminants.

The CS heat classification provides a rate-of-rise alarm response, allowing the detector to react quickly to rapidly increasing temperatures while remaining stable under normal operating conditions.

Transient rejection technology helps reduce false alarms caused by brief temperature fluctuations, improving system reliability in challenging environments.

Its modern, low-profile design supports discreet installation, while compatibility with the Orbis TimeSaver base helps reduce installation and commissioning time.

ORB-HT-41006-MAR
Can be used for applications where smoke detectors are unsuitable
Ideal for environments that are dirty or smoky under normal conditions
Flashing LED option
Approved for use in marine environments
Modern, low-profile design
TimeSaver Base for fast installation
Transient rejection for false alarm reduction
High humidity tolerance at up to 98% RH
Wide operating temperature -40C to +70C

Specification	Details
Warranty	10 year
Suitable environments	Dusty environments
	Marine
Heat classification	CS
Colour	White
Weight	70 g
Housing material	Polycarbonate
Product length	36 mm
Product diameter	97 mm
Product length	1.42 in
Product diameter	3.82 in
Approvals	BV, LR, DNV.GL, CCS, ABS, MED
Maximum power-up time	< 20 seconds
Quiescent current	95 μA
Quiescent current tested at	24 V DC
Polarity	L1 & L2 are polarity sensitive
Minimum detector active voltage	6 V
Holding voltage	5 to 33 V
Holding voltage (max)	33 V
Holding voltage (min)	5 V
Minimum voltage to light alarm LED	5 V
Alarm reset voltage	< 1 V
Alarm reset time	1 s
Alarm load	600 Ω
Sampling frequency	Once every 4 seconds
Humidity (max)	98% RH
Humidity (min)	0% RH
Humidity note	No condensation or icing
Humidity	0% to 98% (no condensation or icing)
IP rating	IP44

Apollo ORB-HT-41006-MAR Datasheet

Click here to download

Overview

Features

Technical Data

Specification	Details
Warranty	10 year
Suitable environments	Dusty environments
	Marine
Heat classification	CS
Colour	White
Weight	70 g
Housing material	Polycarbonate
Product length	36 mm
Product diameter	97 mm
Product length	1.42 in
Product diameter	3.82 in
Approvals	BV, LR, DNV.GL, CCS, ABS, MED
Maximum power-up time	< 20 seconds
Quiescent current	95 μA
Quiescent current tested at	24 V DC
Polarity	L1 & L2 are polarity sensitive
Minimum detector active voltage	6 V
Holding voltage	5 to 33 V
Holding voltage (max)	33 V
Holding voltage (min)	5 V
Minimum voltage to light alarm LED	5 V
Alarm reset voltage	< 1 V
Alarm reset time	1 s
Alarm load	600 Ω
Sampling frequency	Once every 4 seconds
Humidity (max)	98% RH
Humidity (min)	0% RH
Humidity note	No condensation or icing
Humidity	0% to 98% (no condensation or icing)
IP rating	IP44
