Apollo ORB-OH-43001-MAR Orbis Marine Multisensor Detector

Name: Apollo ORB-OH-43001-MAR Orbis Marine Multisensor Detector
Brand: Apollo
Price: 39.54 GBP
Availability: InStock

Code: FDS200/322

£39.54

INC VAT

Code: FDS200/322

ORB-OH-43001-MAR
Approved for use in marine environments
Modern, low-profile design

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

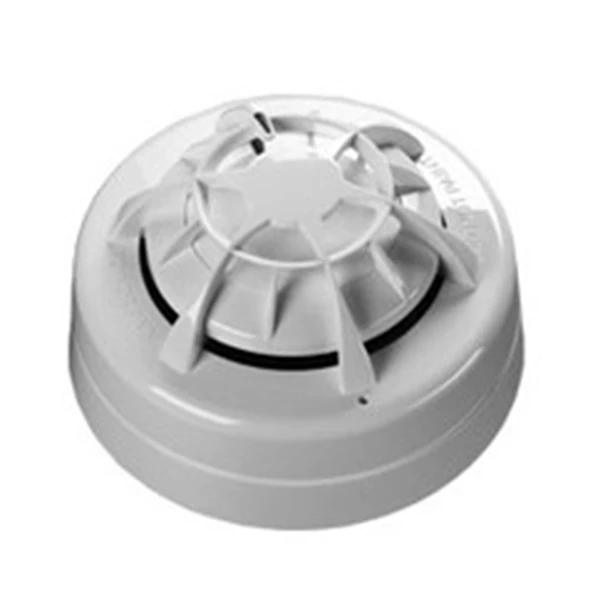

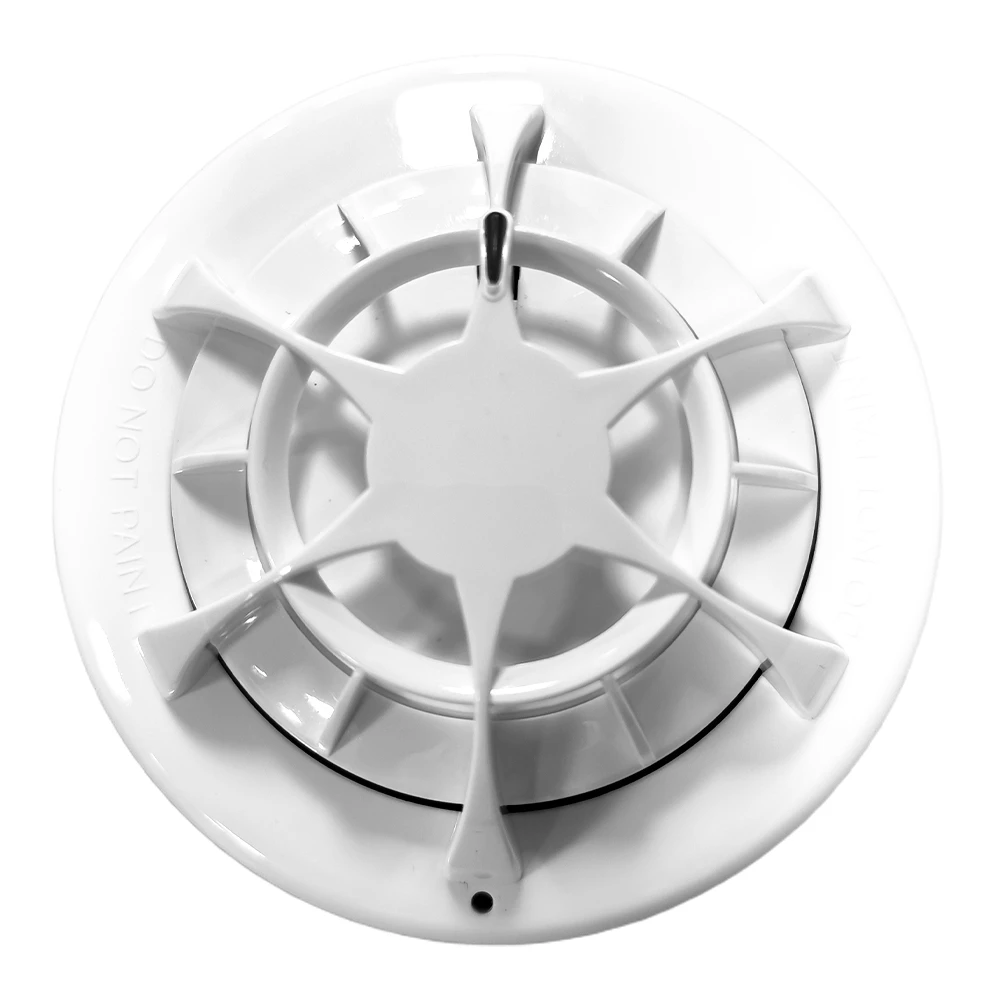

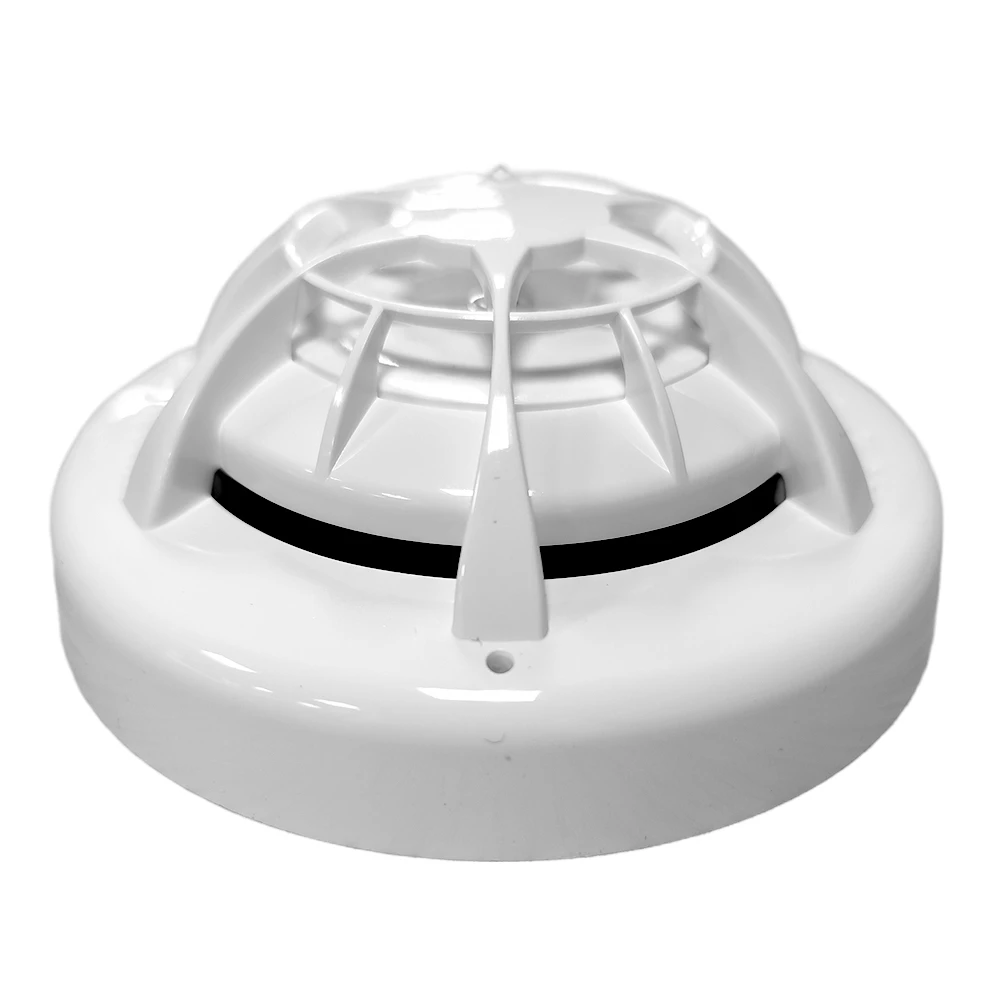

The Apollo ORB-OH-43001-MAR Orbis Marine Multisensor Detector is designed to provide reliable fire detection in marine and high-humidity environments.

By combining optical smoke sensing with heat detection, the multisensor design improves alarm decision-making and helps reduce false alarms in challenging conditions.

The detector uses advanced signal processing and transient rejection technology to maintain stability in areas affected by dust, fumes or fluctuating temperatures.

Its modern, low-profile housing allows discreet installation, while compatibility with the Orbis TimeSaver base helps reduce installation and commissioning time.

The detector is approved for marine use and operates reliably across a wide temperature and humidity range.

ORB-OH-43001-MAR
Approved for use in marine environments
Modern, low-profile design
TimeSaver Base for fast installation
Transient rejection for false alarm reduction
High humidity tolerance at up to 98% RH
Wide operating temperature -40C to +70C

Specification	Details
Warranty	10 year
Suitable environments	Bedrooms
	Dusty environments
	Marine
Fire type	Fast and slow burning fires
Colour	White
Sensor configuration	Chamber with surface-mount infrared emitter and prism. Solid-state integrated photodiode and amplifier
Weight	80 g
Housing material	Polycarbonate
Product length	42 mm
Product diameter	97 mm
Detection principle	Photo-electric light scattering
Product length	1.65 in
Product diameter	3.82 in
Product height (without base)	42 mm
Approvals	BV, LR, DNV.GL, CCS, ABS, MED
Chamber type	Chevron
Quiescent current	95 μA
Quiescent current tested at	24 V DC
Polarity	L1 & L2 are polarity sensitive
Sampling frequency	Once every 4 seconds
Minimum detector active voltage	6 V
Holding voltage (max)	33 V
Holding voltage (min)	5 V
Holding voltage	5 to 33 V
Minimum voltage to light alarm LED	5 V
Alarm reset voltage	< 1 V
Alarm reset time	1 s
Alarm load	600 Ω
Humidity (max)	98% RH
Humidity (min)	0% RH
Humidity note	No condensation or icing
Humidity	0% to 98% (no condensation or icing)
Operating temperature	-40 to 70°C
Operating temperature (max)	70°C
Operating temperature (min)	-40°C
IP rating	IP44
Storage temperature (max)	70°C
Storage temperature (min)	-40°C
Storage temperature	-40 to 70°C
Operating temperature	-40 to 158°F
Operating temperature (max)	158°F
Operating temperature (min)	-40°F

Apollo ORB-OH-43001-MAR Datasheet

Click here to download

Overview

Features

Technical Data

Specification	Details
Warranty	10 year
Suitable environments	Bedrooms
	Dusty environments
	Marine
Fire type	Fast and slow burning fires
Colour	White
Sensor configuration	Chamber with surface-mount infrared emitter and prism. Solid-state integrated photodiode and amplifier
Weight	80 g
Housing material	Polycarbonate
Product length	42 mm
Product diameter	97 mm
Detection principle	Photo-electric light scattering
Product length	1.65 in
Product diameter	3.82 in
Product height (without base)	42 mm
Approvals	BV, LR, DNV.GL, CCS, ABS, MED
Chamber type	Chevron
Quiescent current	95 μA
Quiescent current tested at	24 V DC
Polarity	L1 & L2 are polarity sensitive
Sampling frequency	Once every 4 seconds
Minimum detector active voltage	6 V
Holding voltage (max)	33 V
Holding voltage (min)	5 V
Holding voltage	5 to 33 V
Minimum voltage to light alarm LED	5 V
Alarm reset voltage	< 1 V
Alarm reset time	1 s
Alarm load	600 Ω
Humidity (max)	98% RH
Humidity (min)	0% RH
Humidity note	No condensation or icing
Humidity	0% to 98% (no condensation or icing)
Operating temperature	-40 to 70°C
Operating temperature (max)	70°C
Operating temperature (min)	-40°C
IP rating	IP44
Storage temperature (max)	70°C
Storage temperature (min)	-40°C
Storage temperature	-40 to 70°C
Operating temperature	-40 to 158°F
Operating temperature (max)	158°F
Operating temperature (min)	-40°F
