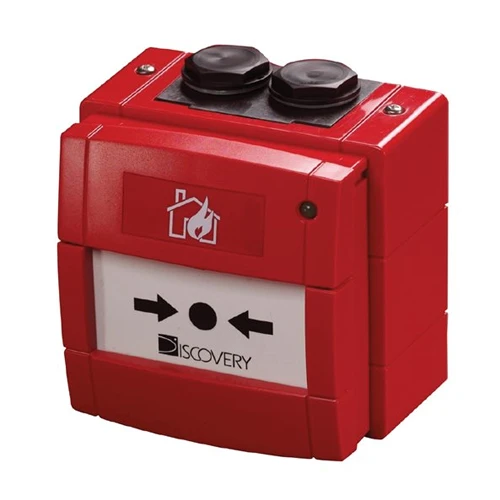

Apollo 58100-976MAR Discovery Marine Waterproof Manual Call Point with Isolator

Name: Apollo 58100-976MAR Discovery Marine Waterproof Manual Call Point with Isolator
Brand: Apollo
Price: 237.3 GBP
Availability: InStock

Code: FDS201/695

£237.30

INC VAT

Code: FDS201/695

58100-976MAR
Discovery marine addressable manual call point with built-in isolator
Plug-and-play terminal connections for faster wiring

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

The Apollo 58100-976MAR Discovery Marine Waterproof Manual Call Point with Isolator is designed for use in outdoor and harsh marine environments.

Integrated short-circuit isolation helps maintain system integrity by isolating faults on the loop while allowing the remainder of the system to continue operating.

A seven-segment DIL switch allows each call point to be addressed locally during commissioning, removing the need for additional programming tools.

When activated, the manual call point interrupts the polling cycle to deliver a rapid alarm response.

Bi-coloured LEDs provide clear visual indication of normal operation and isolate status.

58100-976MAR
Discovery marine addressable manual call point with built-in isolator
Plug-and-play terminal connections for faster wiring
Continuity link for wiring verification prior to commissioning
Alarm reported in under 0.2 seconds
Resettable operating element

Specification	Details
Warranty	3 year
Colour	White
Housing material	Polycarbonate, ABS
Product length	27 mm
Product width	89 mm
Product depth	93 mm
Detection principle	Operation of a switch
Key type	KAC Manual Call Point test & reset key
Product length	1.06 in
Product width	3.5 in
Product depth	3.66 in
Approvals	CCS, DNV.GL, ESC, MED
Analogue value (nominal)	16
Alarm level analogue value	64
Protocol voltage (max)	9 V
Protocol voltage (min)	5 V
Protocol voltage	5 to 9 V peak to peak
Power-up surge current	1 mA
Maximum power-up time	1 second
Quiescent current	100 μA
Quiescent current tested at	24 V DC
Terminal functions L2	-L2 line in & out negative
Terminal functions L1 in	-L1 in loop (isolated) negative
Polarity	L1 & L2 are polarity sensitive
Humidity (max)	95% RH
Humidity (min)	0% RH
Humidity	0% to 95% (no condensation or icing)
Humidity note	No condensation or icing
Operating temperature (min)	-20°C
Operating temperature (max)	60°C
Operating temperature	-20 to 60°C
IP rating	IP67
Operating temperature	-4 to 140°F
Operating temperature (max)	140°F
Operating temperature (min)	-4°F

Apollo 58100-976MAR Datasheet
