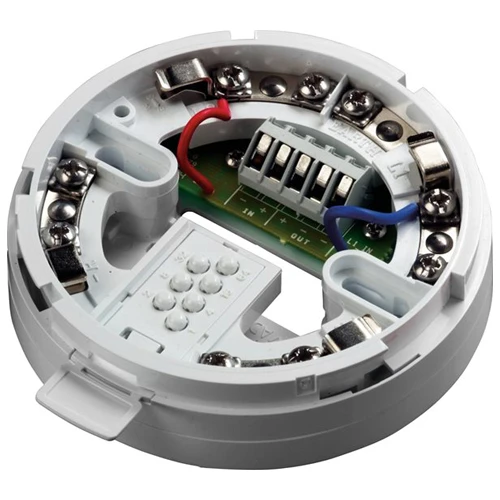

Apollo 45681-286MAR Marine Isolating Base

The Apollo 45681-286MAR Marine Isolating Base is designed to detect and isolate short circuit faults on XP95 and Discovery loops and spurs.

By automatically isolating the affected section of the loop, the base helps maintain system integrity and allows the remainder of the fire detection system to continue operating normally.

The isolating base is intended for use with equipment operating on the Apollo XP95 and Discovery communication protocol.

It is manufactured from self-extinguishing polycarbonate and features nickel-plated stainless steel terminals for secure detector connections.

The associated detector can be locked into the base using the standard locking screw to prevent unauthorised removal.

• 45681-286MAR

• Up to 20 detectors or their equivalent load, may be installed between isolating bases

• High-brightness LED

• Detects wiring short-circuits

• Minimises disruption from short-circuits

• Use with XP95 or Discovery protocols
