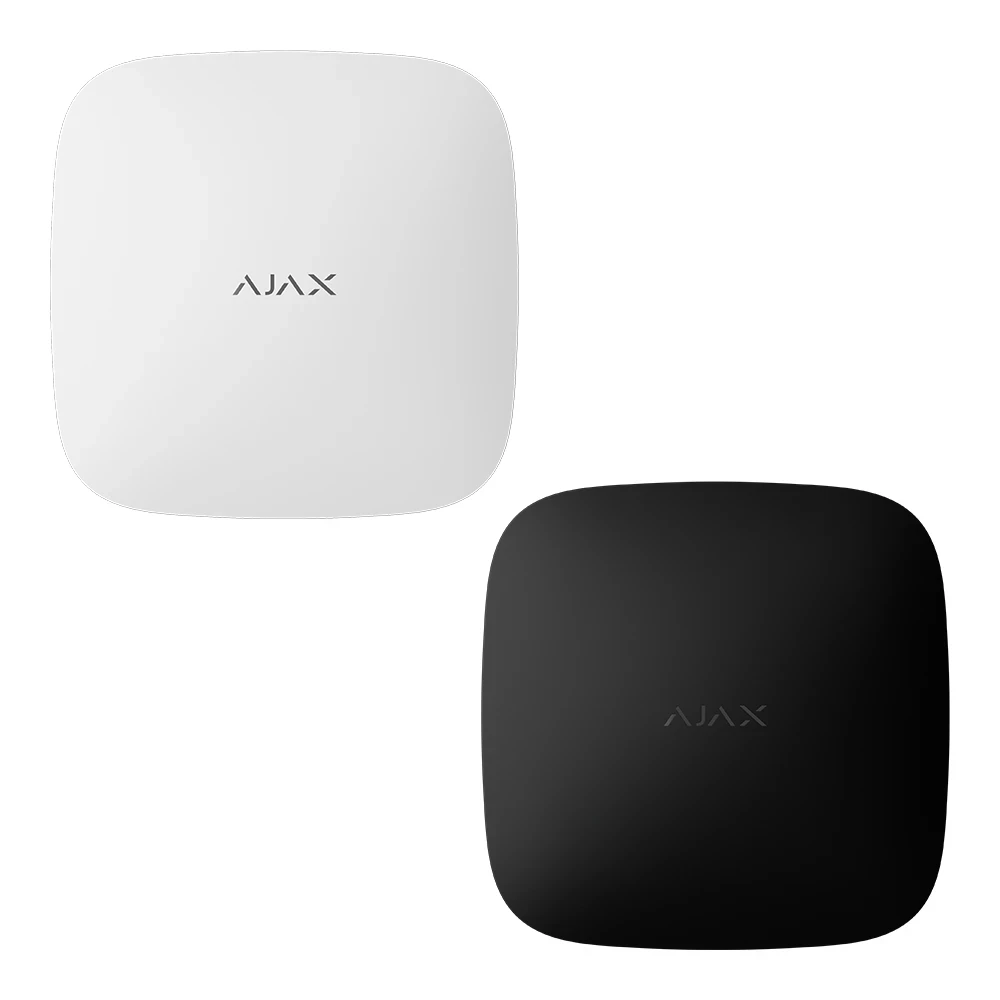

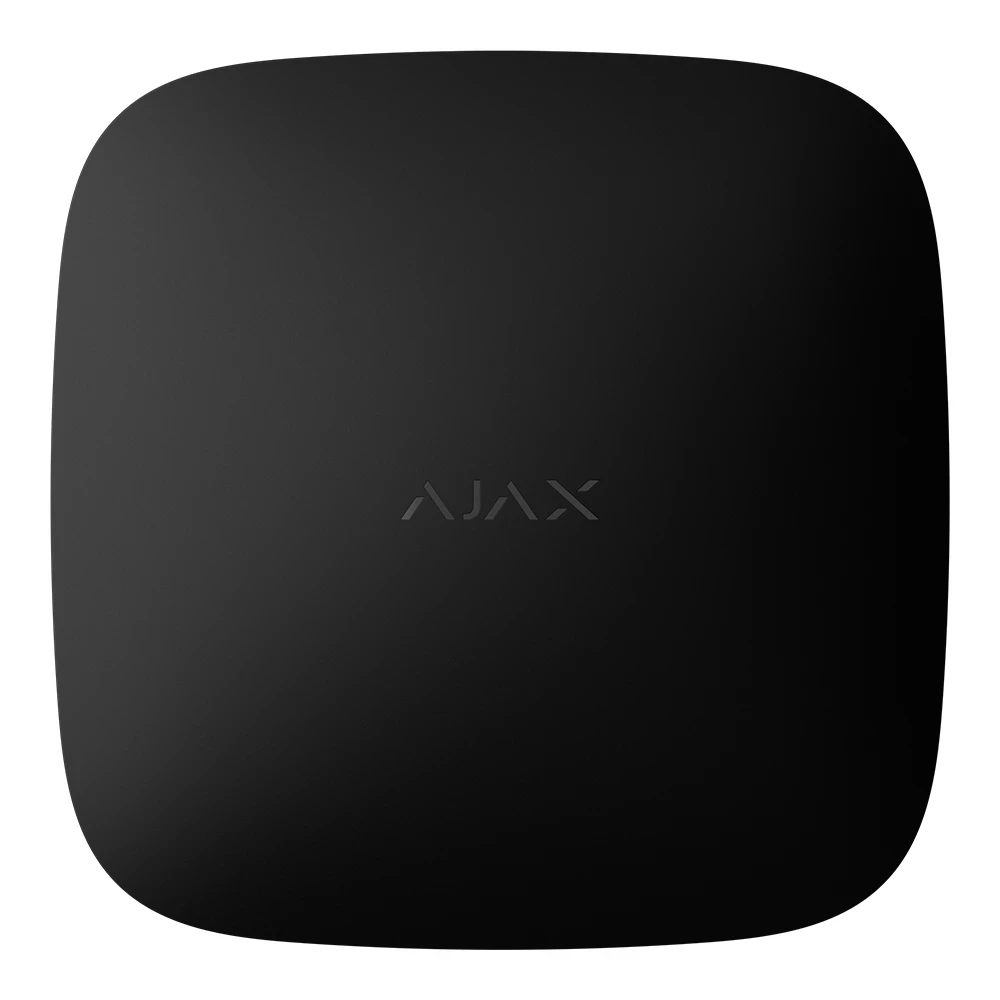

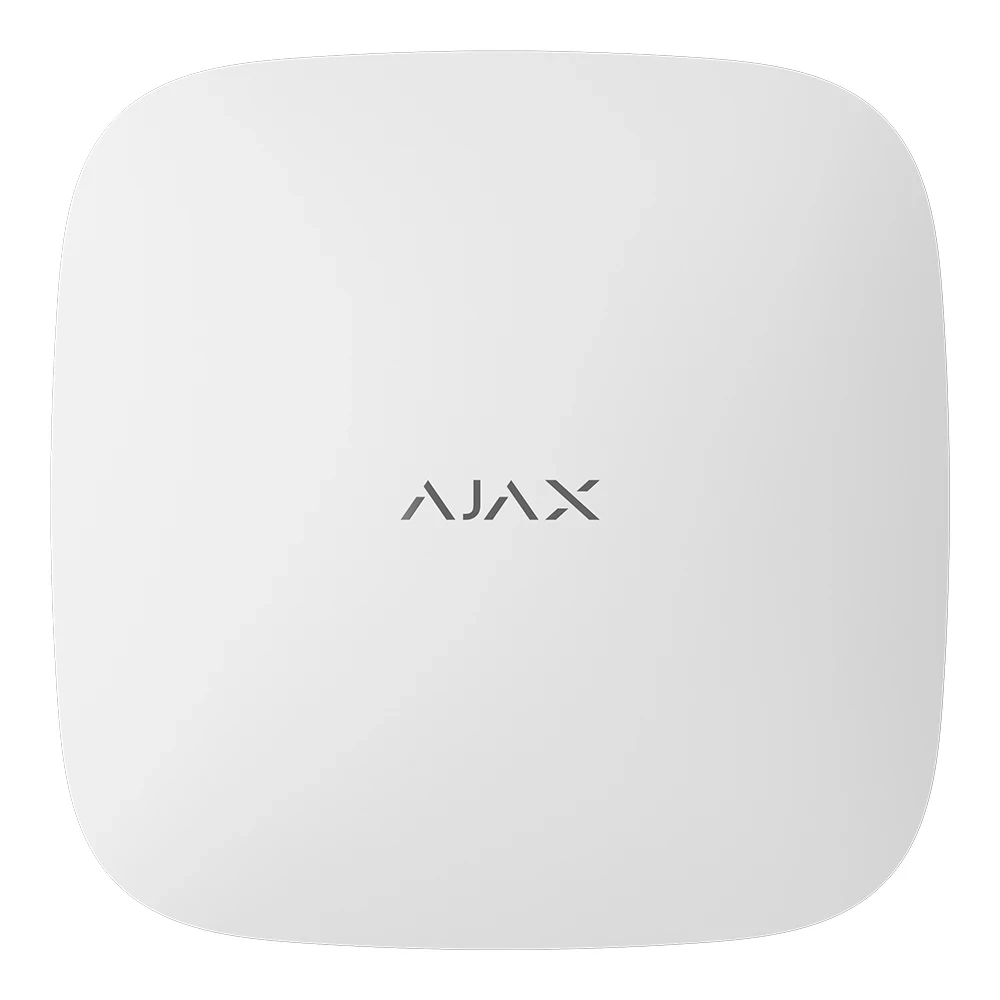

Ajax Hub (4G) Jeweller Control Panel

The Ajax Hub (4G) Jeweller is a wireless security control panel that connects Ajax devices to users and a security company’s monitoring station. It supports up to 100 wireless Ajax devices, making it suitable for installations that need intrusion detection, sirens and camera integration managed through one system.

The hub uses Ethernet and a single 4G LTE SIM as communication channels. They operate in parallel, with the hub switching between them if a connection is lost. Alarm events can be sent to a security company’s central monitoring station, while users receive push notifications and SMS alerts.

Ajax Jeweller provides encrypted, two-way radio communication with connected devices. Its stated range is up to 2,000 m in an open space. Device status is available in the Ajax apps, which also allow remote configuration and monitoring. The hub can report jamming, connection loss and tamper events.

A built-in backup battery provides up to 15 hours of autonomous operation during a power outage. The system supports up to 50 users, nine security groups and five automation scenarios. Cameras connected to Ajax NVRs can also be integrated, with support for up to 14 NVRs and 200 cameras.

• Supports up to 100 wireless Ajax devices, including one range extender and up to 10 sirens

• Ethernet and single-SIM 4G LTE communication channels

• Encrypted, two-way Jeweller radio communication

• Radio range of up to 2,000 m in an open space

• Push notifications and SMS alerts

• Connection to a security company’s central monitoring station

• Built-in battery for up to 15 hours of backup operation

• Supports 50 users and nine security groups

• Integrates up to 14 Ajax NVRs and 200 connected cameras

• Five automation scenarios
