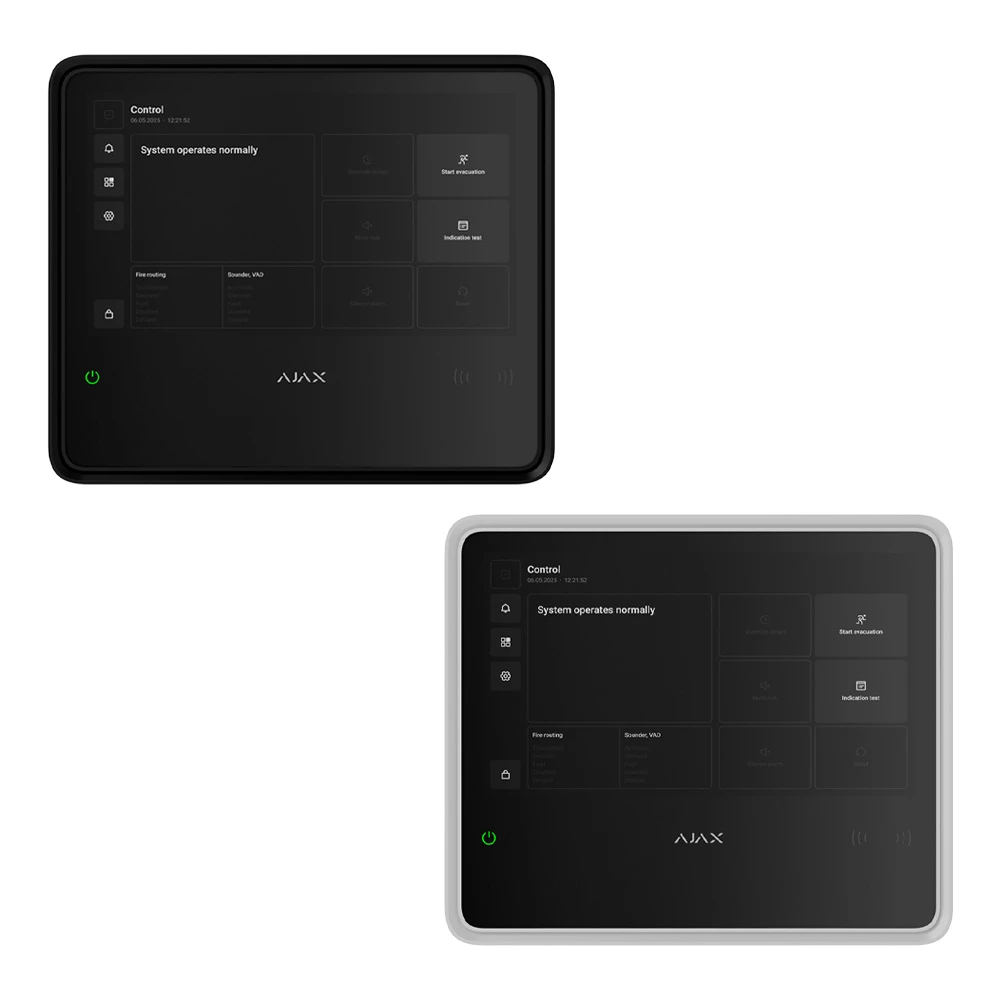

Ajax Fire Hub Jeweller EN54 Wireless Addressable Fire Alarm Control Panel

The Ajax EN54 Fire Hub Jeweller is a wireless control and indicating equipment (CIE) designed for professional fire alarm system management, combining fire detection control with advanced wireless connectivity in a single interface.

Built for commercial and municipal applications, this touchscreen fire alarm control panel enables intuitive system monitoring, alarm management and device control without the installation complexity associated with traditional wired infrastructure.

Supporting Ajax Jeweller, Wings and TurboWings communication technologies, the Fire Hub Jeweller delivers wireless communication ranges of up to 1,800 metres in urban environments and up to 5,900 metres in open space, making it suitable for a wide range of building types where flexibility and reduced disruption are priorities.

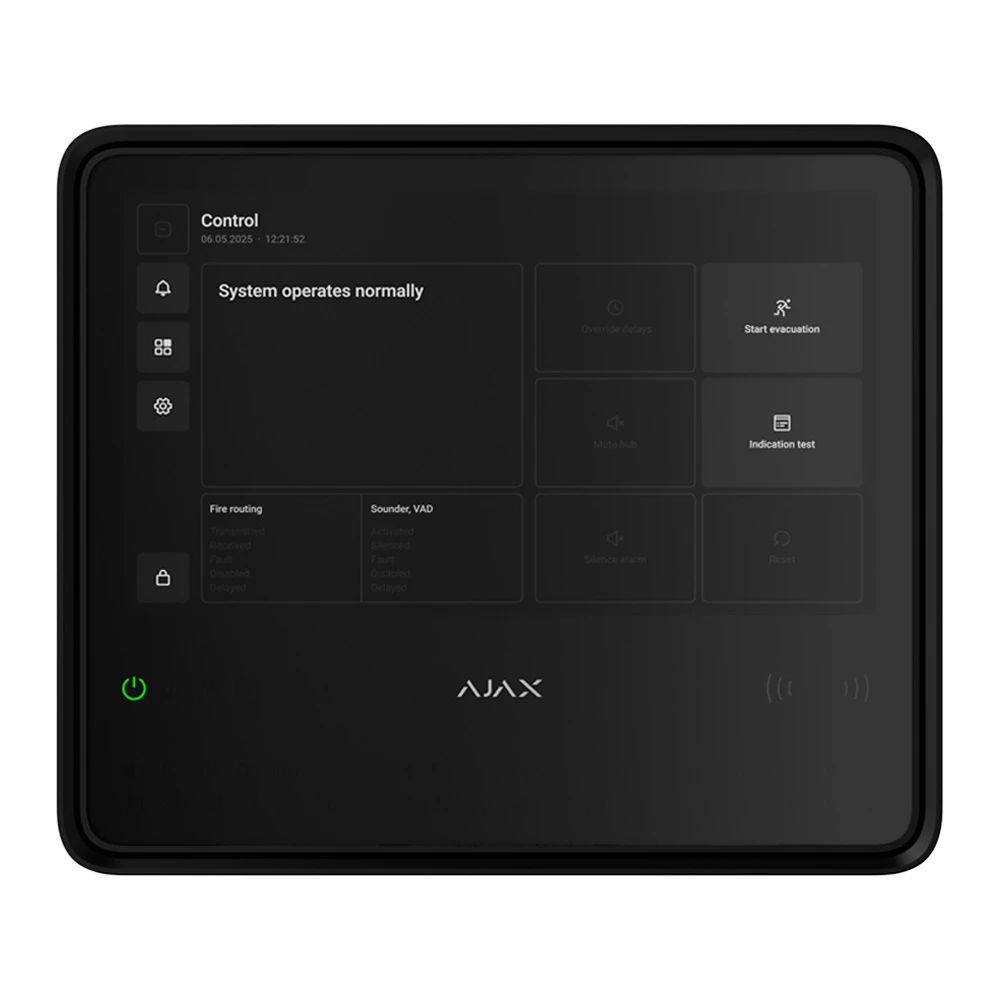

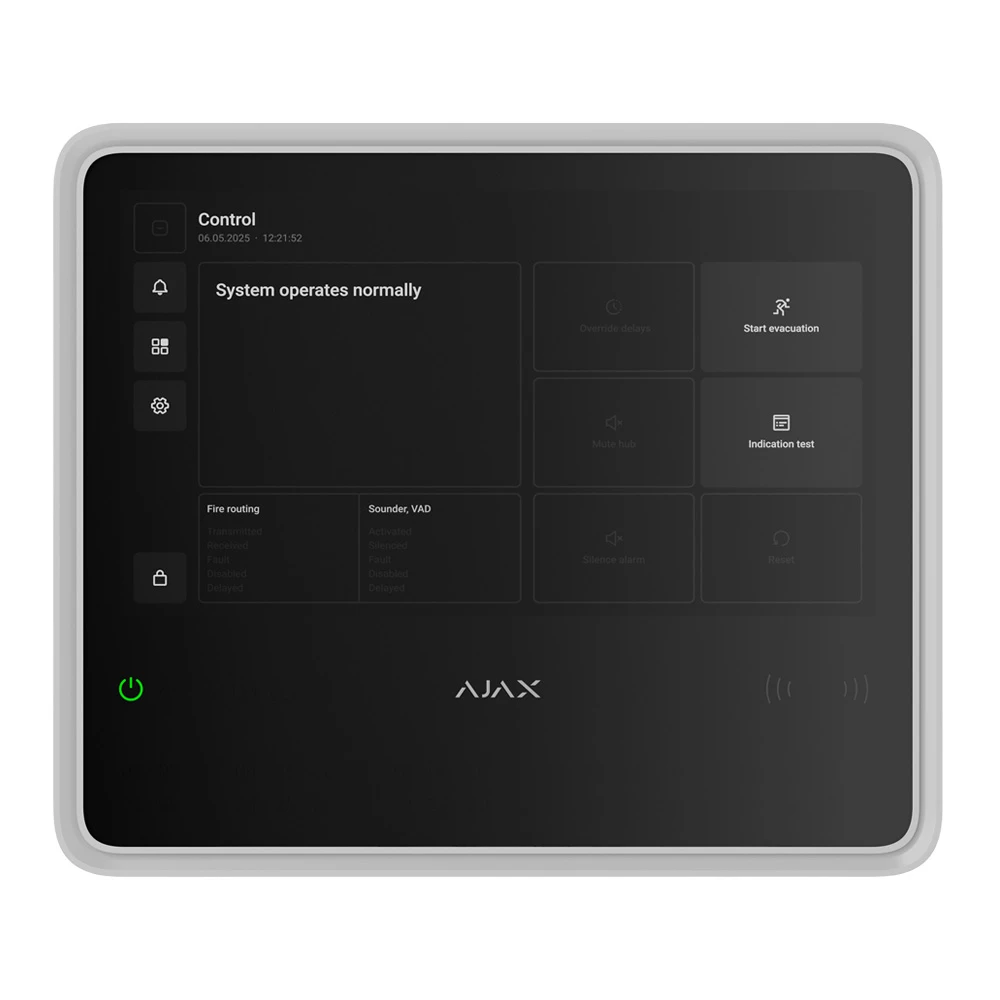

The 10.1-inch IPS capacitive touchscreen provides clear system visibility, with fire zone management, event notifications, system status indication and simplified user interaction. Authorised users can manage core fire alarm functions directly from the panel, including alarm reset, evacuation alarm control, buzzer management and indication testing.

With support for up to 200 Ajax devices, 40 fire zones and up to 5,000 logged alarm and event records, this control panel is suited to larger and more complex wireless fire alarm installations. Built-in Ethernet, Wi-Fi and dual SIM cellular connectivity provide resilient communication pathways, with automatic switching between channels to maintain reliability.

The unit is compliant with EN 54-2, EN 54-4, EN 54-13, EN 54-21, EN 54-25, EN 50131 (Grade 2) and BOSEC requirements, supporting deployment where recognised standards compliance is essential.

• 10.1-inch IPS capacitive touchscreen interface

• Supports up to 200 Ajax wireless devices

• Manages up to 40 fire zones

• Ethernet, Wi-Fi and dual SIM cellular communication

• Automatic communication channel switching for resilience

• Wireless communication range up to 1,800m urban / 5,900m open space

• Stores up to 5,000 alarm and event log entries

• Supports Ajax Jeweller, Wings and TurboWings technologies

• EN 54 compliant for professional fire alarm applications
