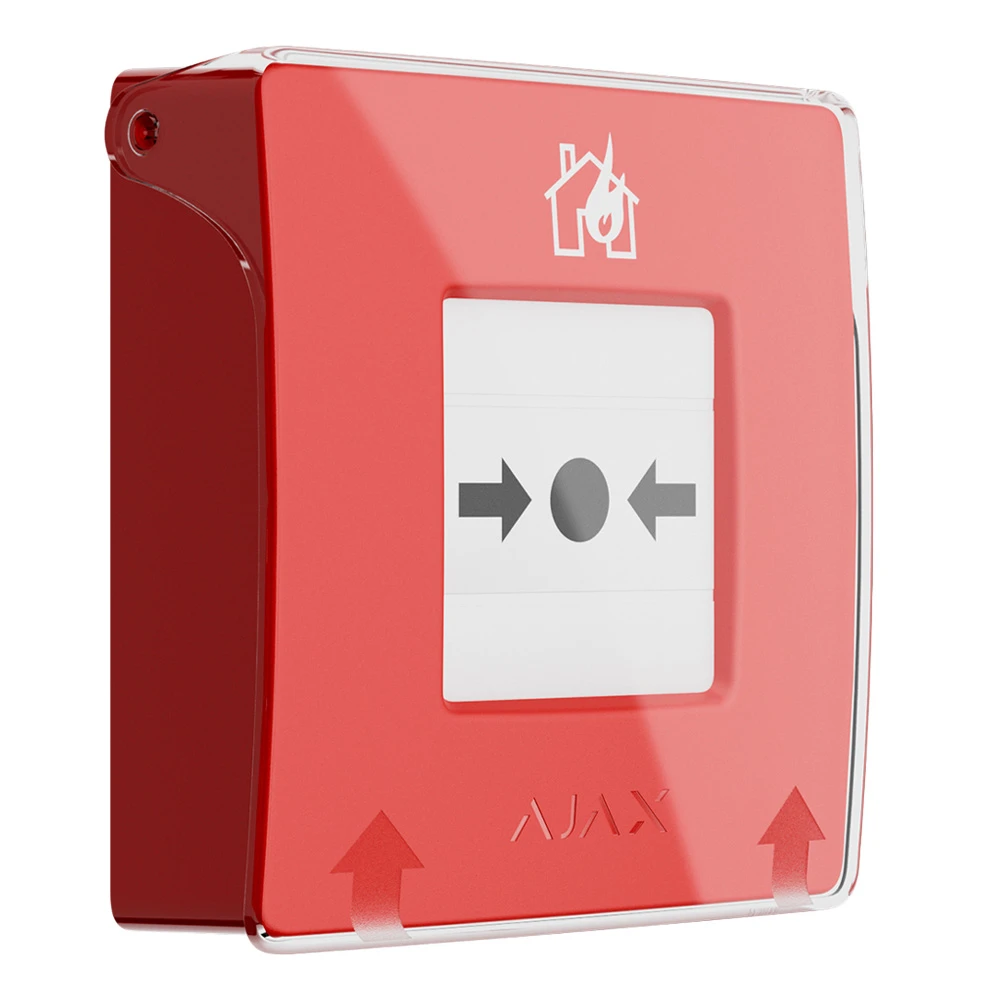

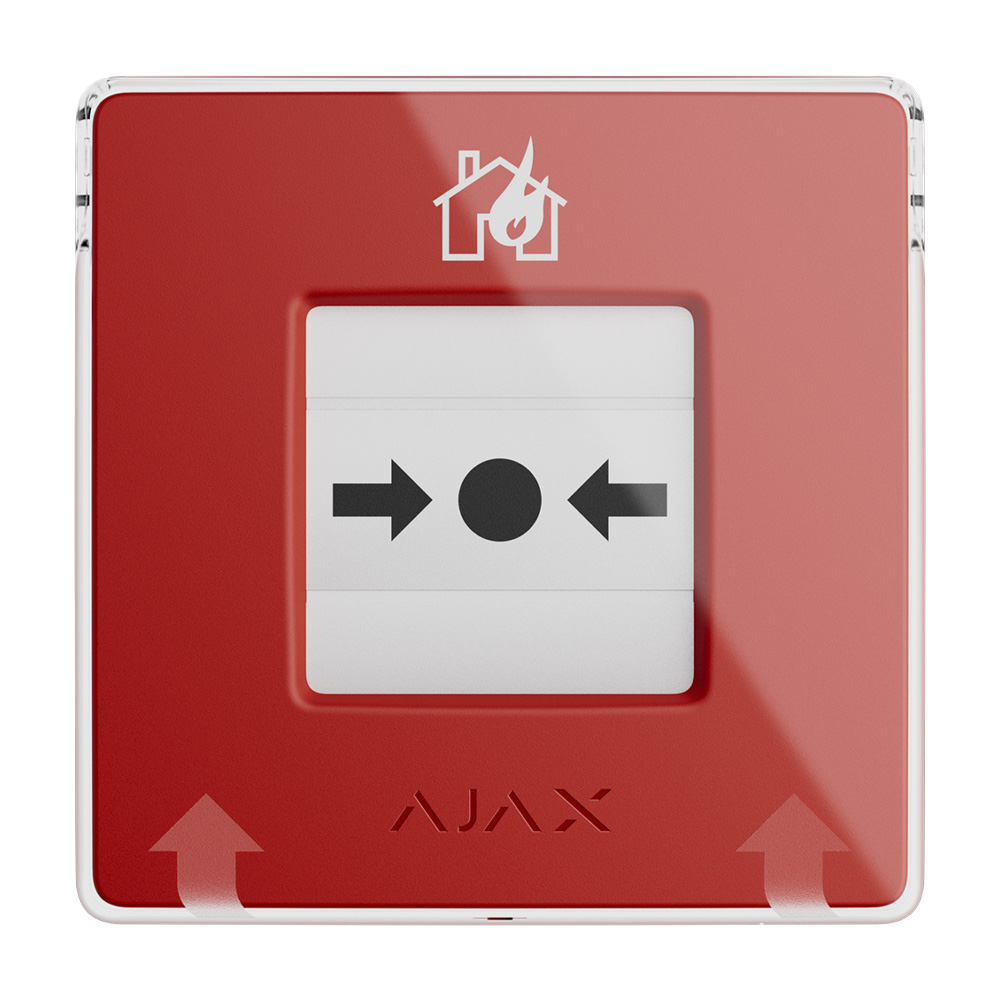

Ajax Jeweller EN54 Wireless Addressable Manual Call Point

The Ajax Manual Call Point (Red) Jeweller is a wireless addressable resettable manual call point designed for fast and reliable manual fire alarm activation. It allows users to trigger a fire alarm instantly while also activating pre-configured automation scenarios to support safe evacuation and emergency response.

Designed as part of the Ajax EN54 fire safety range, this manual call point combines modern wireless communication with straightforward installation and intuitive operation.

A single press can activate connected sirens, unlock exits, trigger ventilation shutdown, or enable emergency lighting depending on the programmed scenario.

The resettable design removes the need for replacement glass elements, helping to reduce ongoing maintenance costs while allowing quick system restoration using the supplied reset key.

With Jeweller radio communication technology, the device provides dependable wireless communication with rapid alarm transmission and long-range connectivity, making it suitable for commercial, educational and public environments where flexible fire system installation is required.

• Wireless addressable manual fire alarm call point

• Resettable operating element

• Red fire alarm version

• Compatible with Ajax fire alarm systems using Jeweller communication

• Alarm transmission to control equipment within 3 seconds

• Wireless communication range up to 1,700m in open space

• Up to 7 years battery life

• Transparent front lid to help prevent accidental activation

• LED alarm status indication

• Built-in tamper protection

• Frequency hopping communication for improved signal reliability

• Automatic communication power adjustment

• Supports automation scenario activation

• Can trigger indoor and outdoor sirens

• Compatible with visual alarm verification via Ajax cameras and MotionCam detectors

• QR code setup for fast commissioning

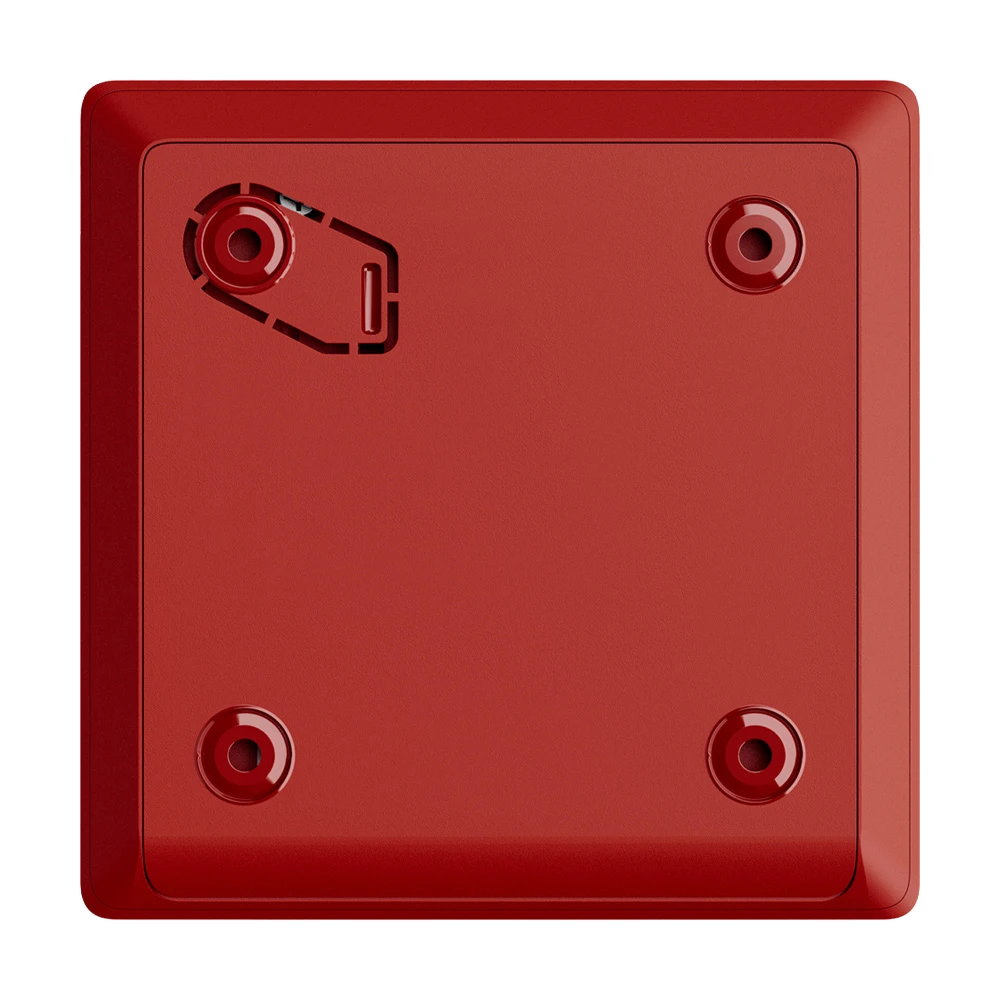

• SmartBracket mounting panel for simplified installation

• Configuration and testing via Ajax apps

• Reset key included
