Ajax Baseline JunctionBox

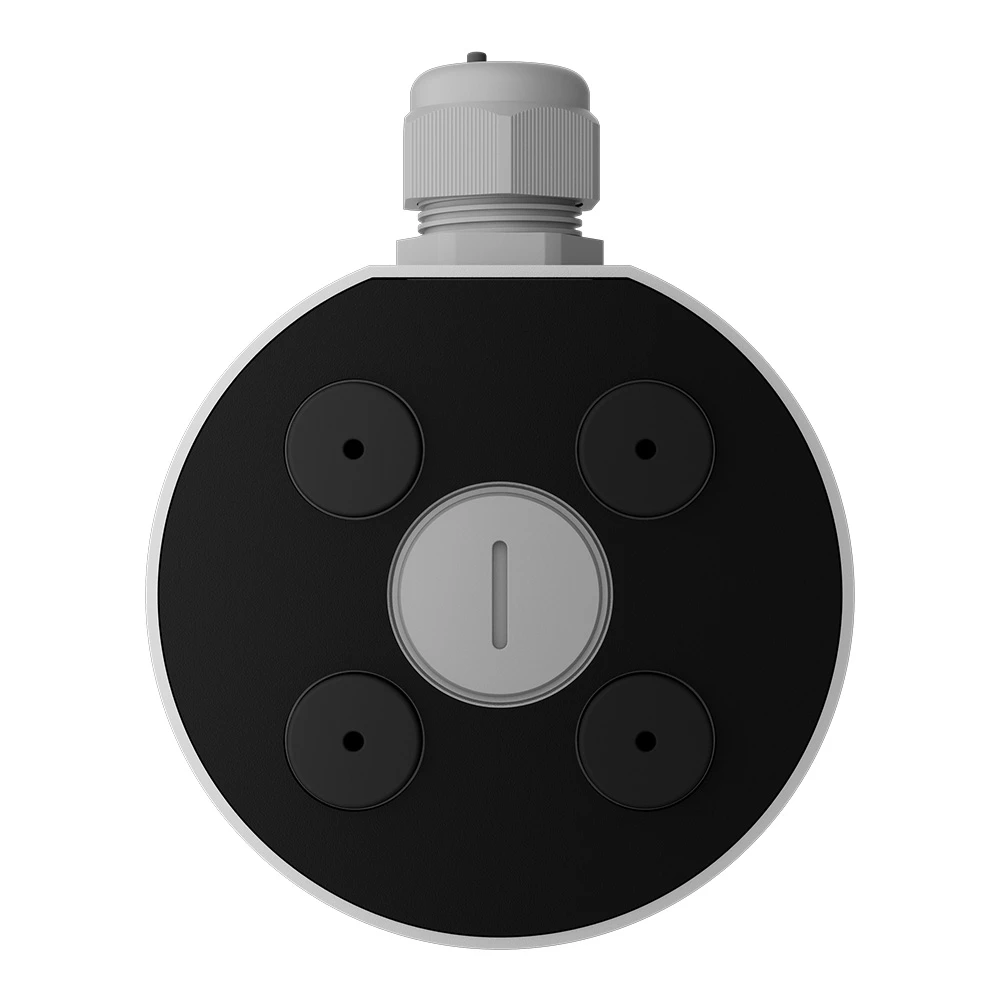

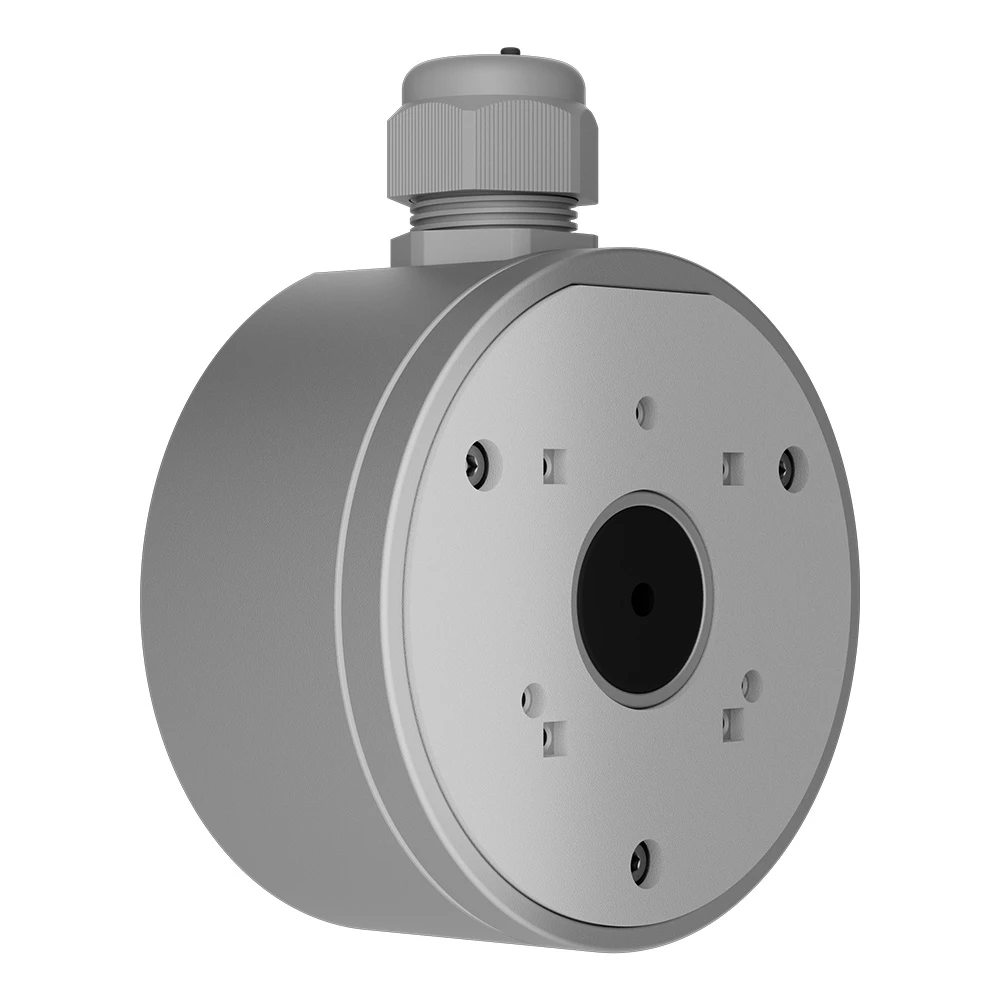

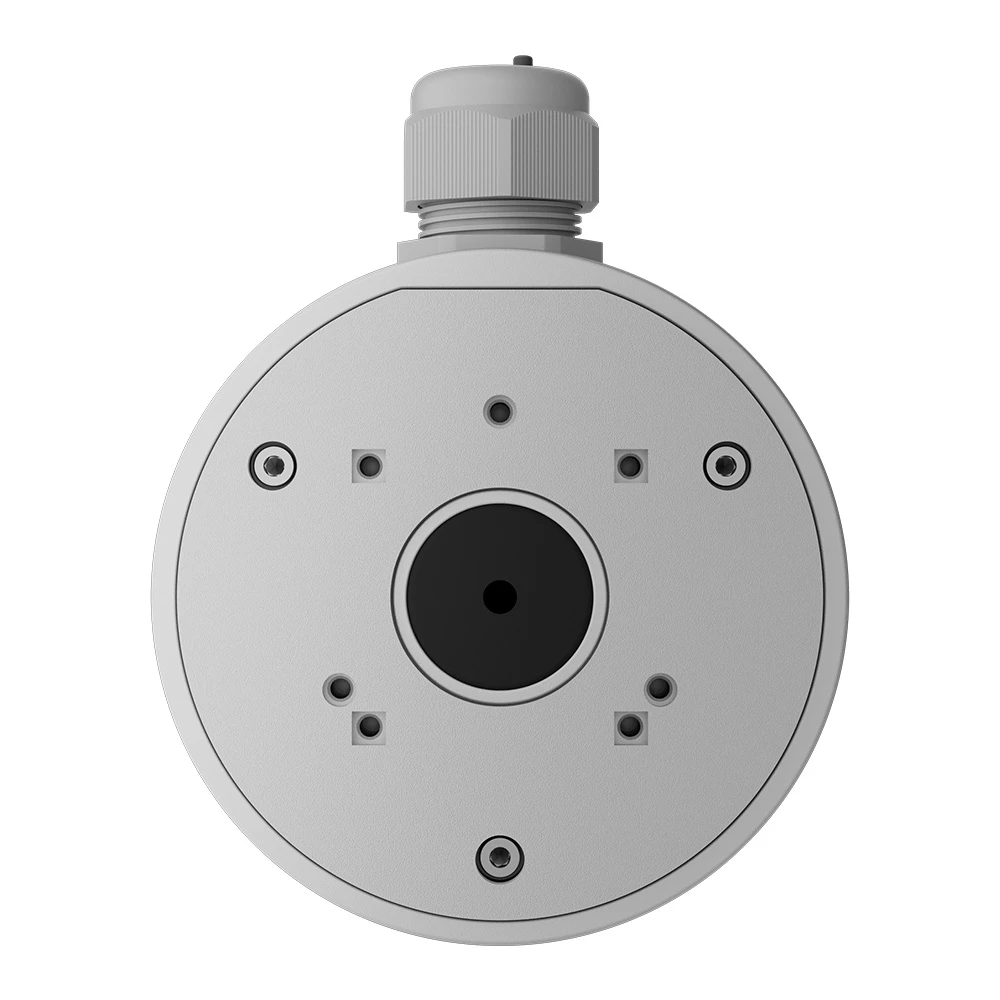

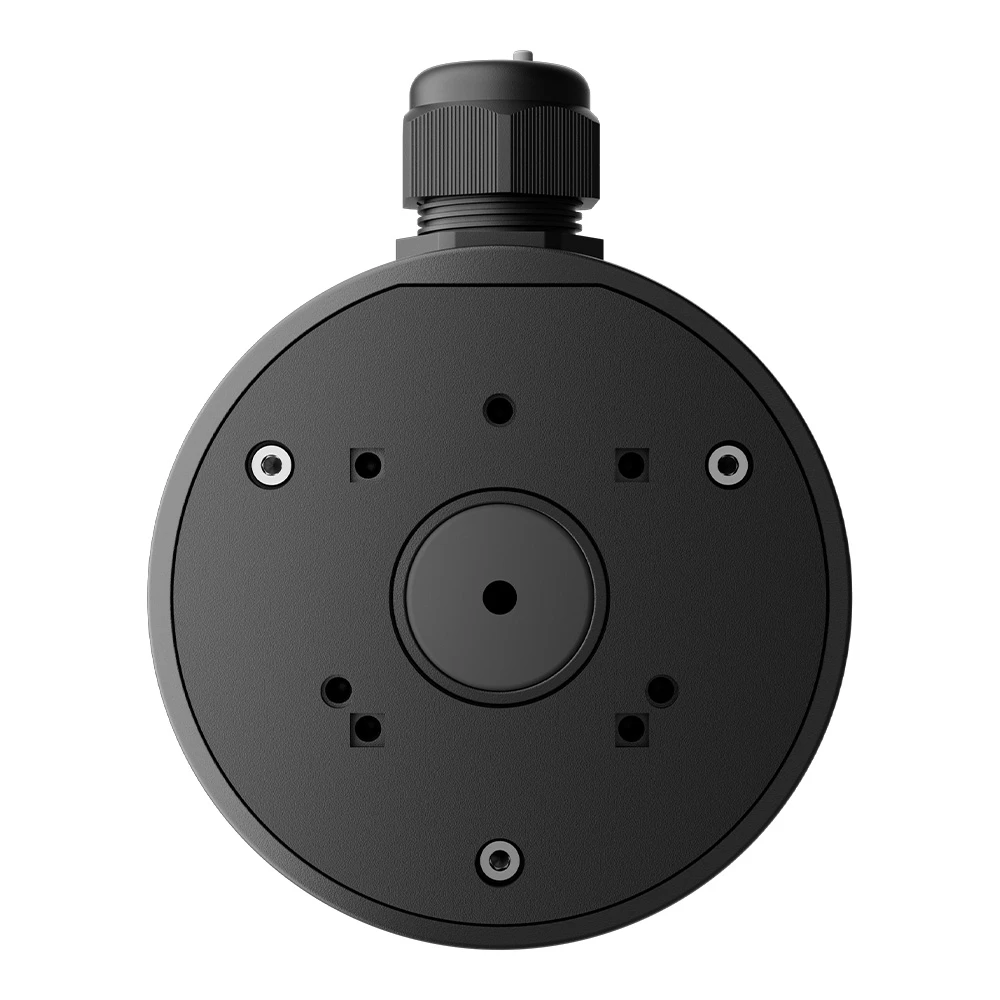

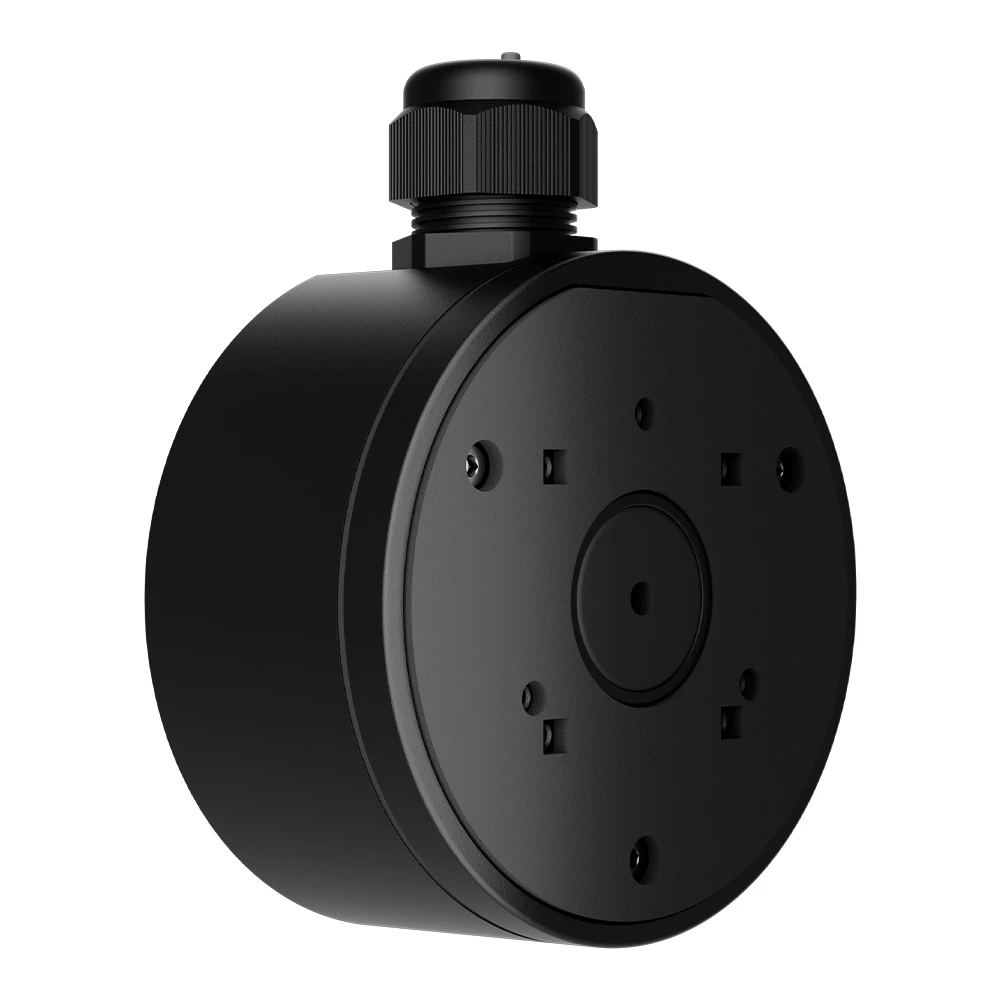

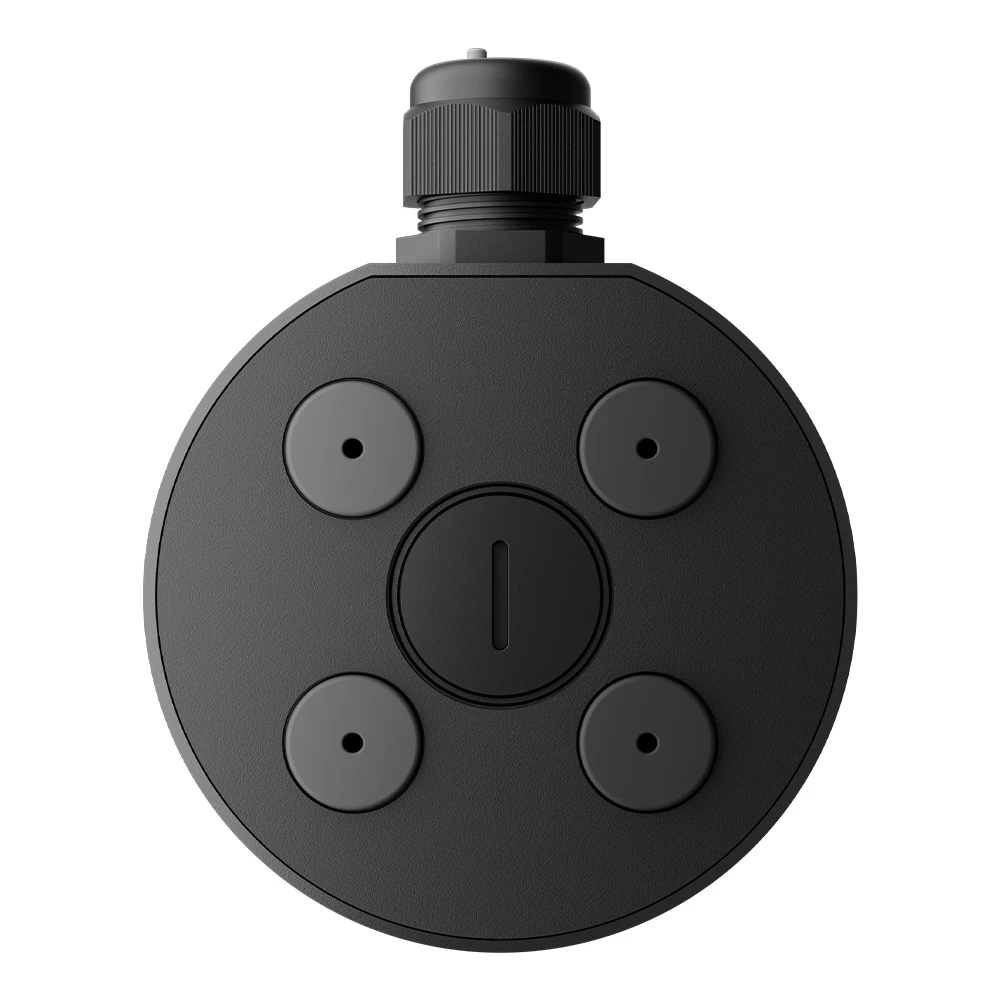

The Ajax Baseline JunctionBox (118×59) is a waterproof mounting box designed for cable management when installing compatible Ajax wired IP security cameras. Suitable for mounting cameras on concrete walls, ceilings and columns, it provides a practical way to house and protect cabling while creating a neat installation indoors or outdoors.

A waterproof cable gland helps protect the cable from damage during installation and operation while preventing water from entering the mounting box. The gland can be installed at either the top or side, allowing the cable route to be adapted to the installation location.

Inside the enclosure, a two-cable sealing ring supports a waterproof connection for a PoE cable or both Ethernet and power cables. A dedicated grounding terminal is also provided, allowing grounding to be carried out in accordance with applicable local electrical safety rules and regulations.

Installation is supported by a supplied template for accurately positioning mounting holes. All required fastenings are included, reducing the need to source additional mounting hardware, while the JunctionBox can be reused after dismantling.

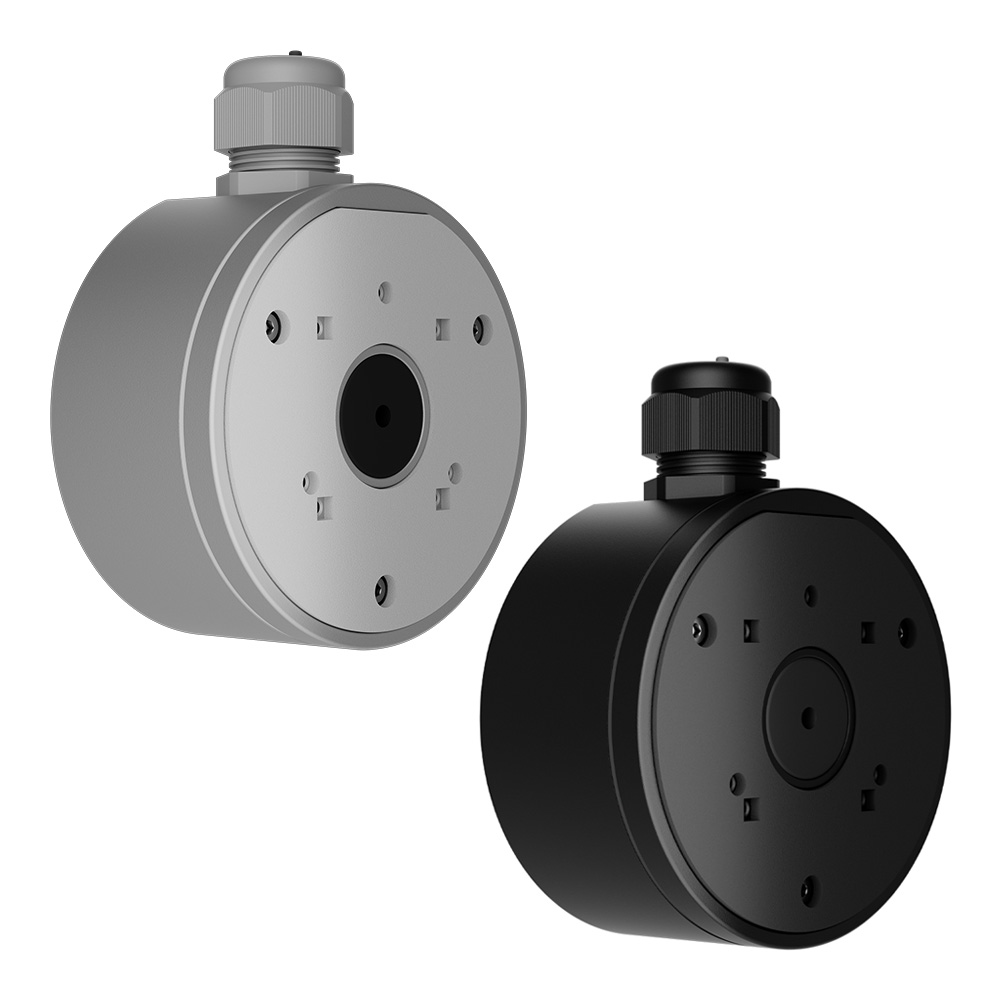

Measuring 117.14 × 58.3 mm and weighing 468 g, the JunctionBox is available in black or white to coordinate with the camera installation. It is compatible with specified BulletCam, DomeCam Mini and TurretCam models using 2.8 mm or 4 mm lenses.

• JunctionBox (118×59)

• Waterproof mounting box for Ajax wired IP cameras

• Suitable for walls, ceilings and columns

• Waterproof cable gland protects cable entry

• Cable gland can be installed at the top or side

• Two-cable sealing ring for PoE or Ethernet and power cabling

• Integrated grounding terminal

• Installation template and fastenings included

• Reusable after dismantling

• Available in black or white
