Advanced Electronics Mx-5807 | 7-8 Loop Addressable Fire Alarm Panel | Apollo/Hochiki

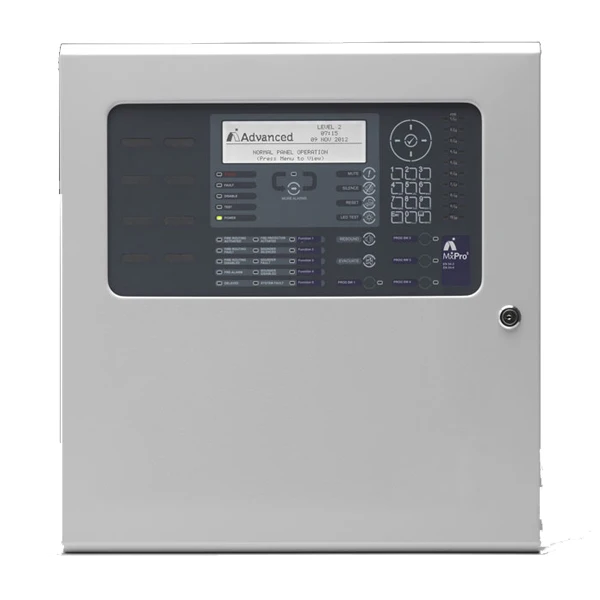

The MxPro 5 is a high-performance, fully expandable fire alarm control panel, designed for demanding applications.

It supports from 2 up to 8 detection loops and is supplied with an extended enclosure, making it ideal for complex installations.

This model (MX-5808) comes complete with 7 loop cards pre-installed and offers a wide range of features including fault tolerance, comprehensive LED indicators, and configurable controls to suit bespoke requirements.

• EN54 Parts 2, 4, and 13 approved

• Supports 2 to 8 detection loops

• Supplied with 7 loop cards

• 8 on-board sounder circuits

• 20 programmable zonal LEDs with slide-in labels

• 25 system status LEDs for clear information display

• 8 programmable function buttons with LED confirmation

• Extended enclosure to accommodate additional components

• Supports up to 45Ah internal batteries

• Up to 200 additional programmable LEDs

• Can support:

  • 2 x switch cards or mimic boards

  • Up to 8 programmable key switches (or 4 plus printer)
