Code: FDS550/004
INC VAT
Code: FDS550/004

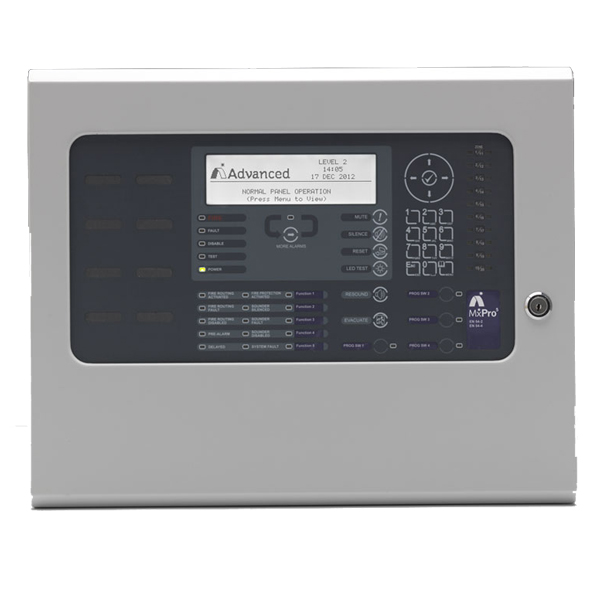

The Advanced Electronics Mx-5020 Remote Control Terminal features the same graphical LCD user interface found on the MxPro 5 series fire panels.
It is built on the same advanced, flash-based microprocessor technology as the main panels.
The MxPro 5 panels and remote terminals can communicate using a standard 2-core network cable.
Each unit includes an integral network interface with a special screen termination, designed to prevent mains frequency earth-loop currents between network nodes.
The Ad-NeT network operates as a peer-to-peer system, supporting full cross-panel reporting, control, and cause-and-effect functionality across up to 2000 zones.
Remote terminals include convenient features such as buzzer mute, view enable/disable, and test mode, along with dedicated system and navigation keys for easy user interaction.
Display information is fully programmable by individual zone or sector.
Terminals can display a custom combination of fires, faults, pre-alarms, or plant alarms, for example, showing full detail for their own sector but only fire signals from other building sectors.
Programmable switch input
Graphical LCD Display
Ad-NeT/Ad-NeT+ Compatible
Slide-in Labels
Small, robust & compact
24V DC Operating voltage
Disable/enable options
Advanced Electronics Mx-5020 | Remote Control Terminal
Specification | Details |
---|---|
Display | White backlit 240x64 graphical LCD |
LED Indicators | 2 red (1 × Fire, 1 × Alarm), 1 green (Power), 3 amber (Fault & System) |
Keypad | Alphanumeric keypad, navigation keys, onboard buzzer mute facility |
Controls | System keys for Mute, Reset, Silence, Resound |
Key-Switch Input | Optional level 2 access enable key switch |
Power Supply Input | 24 VDC, 115mA (F/T: 150mA), operating range 15–30V |
External Supply Monitoring | Monitored external fault input |
Number of Fire Zones | 2000 |
USB/Serial Ports | 1 × USB |
Programming | Via onboard keypad or PC running Windows tools |
Enclosure | Steel IP30 |
Cable Entry | 20mm knockouts, 4 × top and 4 × rear |
Colour | RAL 7035 |
Size H × W × D (mm) | Enclosure: 218 × 300 × 44; back box only (when recessing): 218 × 300 × 30 |
Metalwork Options | Semi-flushing bezel, special finishes including Stainless & Chrome |
