Advanced Electronics GO1+ Single Loop Fire Alarm Control Panel | Apollo/Hochiki

Name: Advanced Electronics GO1+ Single Loop Fire Alarm Control Panel | Apollo/Hochiki
Brand: Advanced-electronics
Price: 605.9399999999999 GBP
Availability: InStock

Code: FDS372/226

£605.94

INC VAT

Code: FDS372/226

Single-loop fire alarm control panel supporting up to 126 or 127 addresses
Multiprotocol support for Apollo Discovery, XP95 and Hochiki ESP devices
High-resolution graphical LCD with LED indicators and push buttons

We Recommend These Add-ons

Please Select

Fire Alarm Zone Plan (Digital Only) (+£135)

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

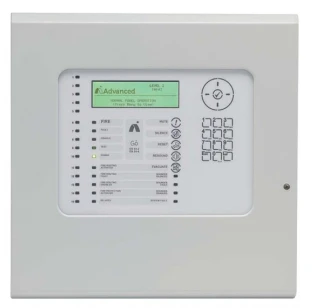

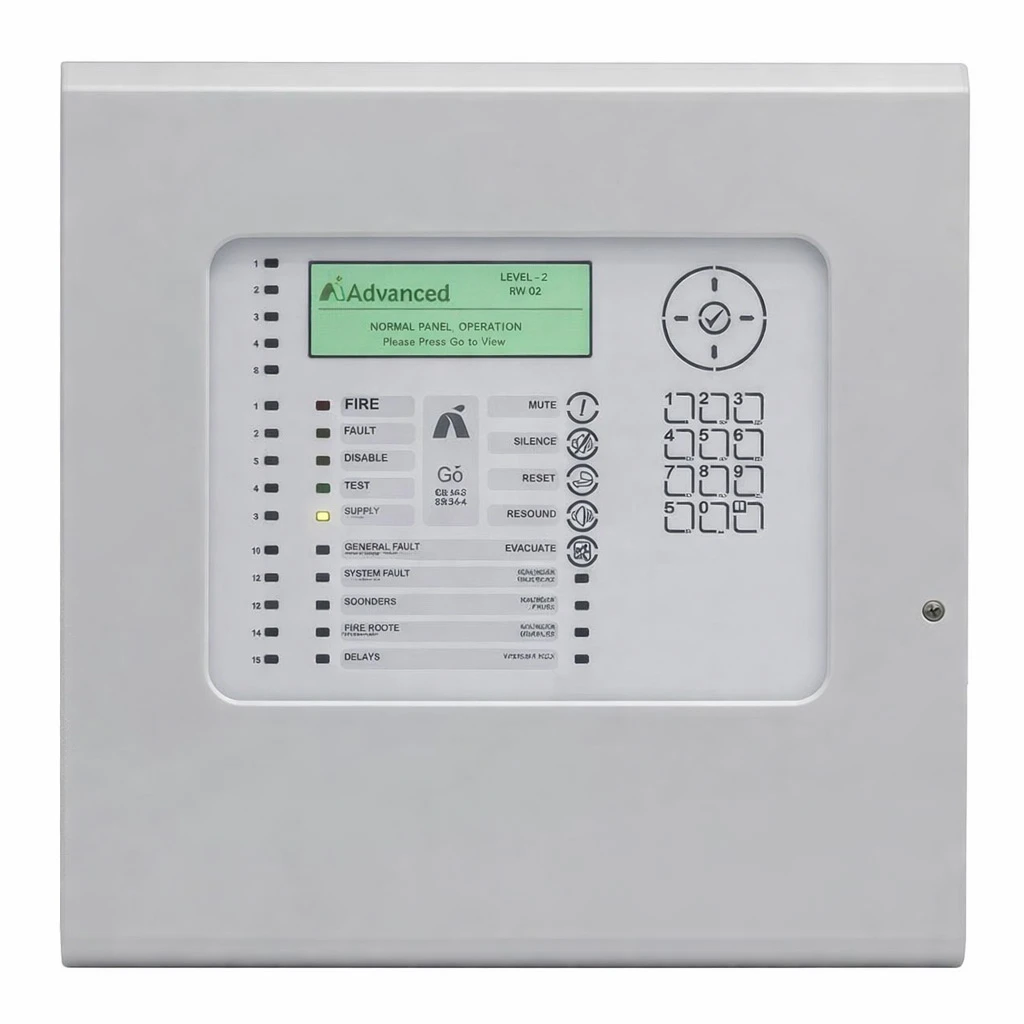

The Advanced Electronics GO1+ Single Loop Fire Alarm Control Panel is designed for non-networked, single-loop fire alarm systems where reliability, ease of use and compliance are key requirements.

Built on the proven Go series platform, the GO1+ combines modern hardware with intuitive software to simplify installation, commissioning and day-to-day operation. It supports up to 127 devices on a single loop and offers multiprotocol compatibility with Apollo Discovery, Apollo XP95 and Hochiki ESP devices, making it a flexible choice for a wide range of projects.

A high-resolution, high-contrast graphical LCD provides clear system information at a glance, while the ergonomic front panel layout and tactile keypad allow fast navigation through menus and settings. Installer-focused features such as auto-learn, loop detection and on-board short circuit protection help reduce commissioning time and aid fault-finding.

Single-loop fire alarm control panel supporting up to 126 or 127 addresses
Multiprotocol support for Apollo Discovery, XP95 and Hochiki ESP devices
High-resolution graphical LCD with LED indicators and push buttons
Auto-learn function with loop detection and on-board short circuit protection
Integral EN 54-2 and EN 54-4 compliant power supply
Two on-board sounder circuits and two on-board relay outputs
Configuration via panel keypad or PC using Configuration Tool software
USB and Ethernet connectivity for programming, diagnostics and remote access
Compact, hinged door enclosure for easier installation and maintenance

Specification	Details
Date of first manufacture	2021
Menu response time (display & keyboard)	12 MBps
Maximum number of loops	1
Loop current	500 mA
Maximum addresses per loop	126 (Apollo)
Protocols supported	Apollo, Hochiki, Argus Vega
Number of inputs on board	2 (1 key switch, 1 monitored)
Number of sounder outputs on board	2 @ 1 A each (NB: Max. 1 A load, 1 A programmable)
Number of relay outputs on board	3 (1 A 30 VAC/DC max, 10 mA 5 V min)
Other monitored I/O	3 inputs / outputs for fire fault routing
Event capacity	5000 event and diagnostic + 500 fire
Auxiliary supply	100 mA (with extra PCB GOP-001)
Battery standby	Up to 2 × 12 V, 7 Ah (24 hr standby only)
Maximum number of zones	50
Networkable / repeaters	No
Maximum zones on network	N/A
Maximum panels on network	N/A
Programmable push buttons	No
Zonal LEDs	15 integrated
PC configuration tool	Supported (Next-generation PC ConfigTool)
RS232 communication	No
RS485 communication	No
USB communication	Yes (USB Type B interface for PC connection)
Ethernet communication	Yes (10-Base-T, 100-Base-T)
BMS module onboard / external	No
Graphic software	No
Dimensions (H × W × D)	345 × 345 × 87 mm
Semi-recess option	No
Access door	Innovative no-hinge door for quick removal and easy installation
Availability	Distribution and direct
Warranty	3 years
EN54-2 (Control & Indicating Equipment)	Yes (FM approved)
EN54-4 (Power Supply Equipment)	Yes (FM approved)
EN54-13	No

Advanced Electronics GO1+ Brochure

Click here to download

Overview

Features

Technical Data

Specification	Details
Date of first manufacture	2021
Menu response time (display & keyboard)	12 MBps
Maximum number of loops	1
Loop current	500 mA
Maximum addresses per loop	126 (Apollo)
Protocols supported	Apollo, Hochiki, Argus Vega
Number of inputs on board	2 (1 key switch, 1 monitored)
Number of sounder outputs on board	2 @ 1 A each (NB: Max. 1 A load, 1 A programmable)
Number of relay outputs on board	3 (1 A 30 VAC/DC max, 10 mA 5 V min)
Other monitored I/O	3 inputs / outputs for fire fault routing
Event capacity	5000 event and diagnostic + 500 fire
Auxiliary supply	100 mA (with extra PCB GOP-001)
Battery standby	Up to 2 × 12 V, 7 Ah (24 hr standby only)
Maximum number of zones	50
Networkable / repeaters	No
Maximum zones on network	N/A
Maximum panels on network	N/A
Programmable push buttons	No
Zonal LEDs	15 integrated
PC configuration tool	Supported (Next-generation PC ConfigTool)
RS232 communication	No
RS485 communication	No
USB communication	Yes (USB Type B interface for PC connection)
Ethernet communication	Yes (10-Base-T, 100-Base-T)
BMS module onboard / external	No
Graphic software	No
Dimensions (H × W × D)	345 × 345 × 87 mm
Semi-recess option	No
Access door	Innovative no-hinge door for quick removal and easy installation
Availability	Distribution and direct
Warranty	3 years
EN54-2 (Control & Indicating Equipment)	Yes (FM approved)
EN54-4 (Power Supply Equipment)	Yes (FM approved)
EN54-13	No

Downloads & Resources
