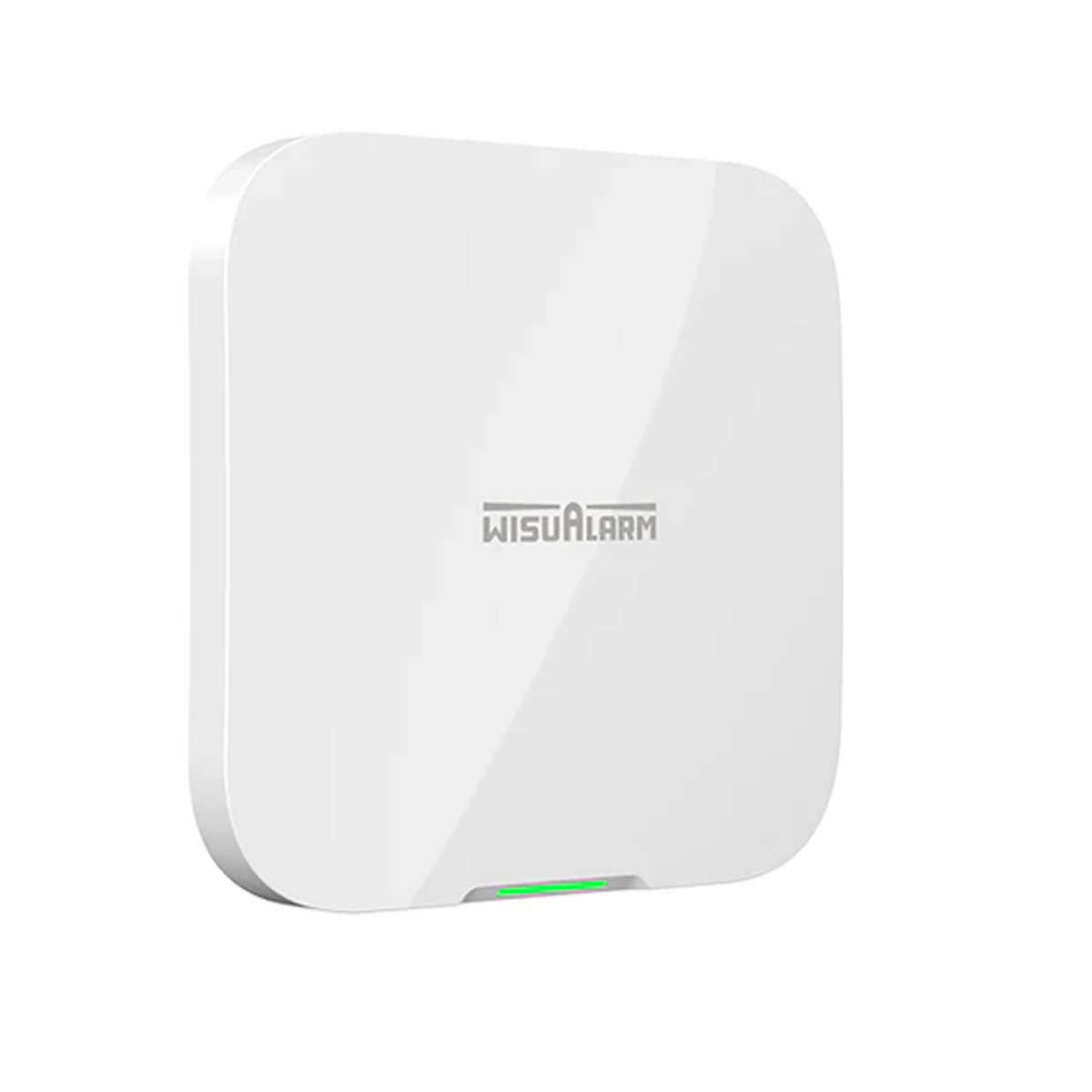

WisuAlarm Mains Powered Wireless Gateway

Name: WisuAlarm Mains Powered Wireless Gateway
Brand: Wisualarm
Price: 166.79999999999998 GBP
Availability: InStock

Code: FDS003/205

£139.00

EX VAT

Code: FDS003/205

Model: DHI-HY-GW02A
Compatible with WisuAlarm products
Multiplex communication based on Ethernet, Wi-Fi, and 4G

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

This wireless gateway provides 4G communication with your connected WisuAlarm system, via a mobile app, meaning you can see the condition of your environment from anywhere you are connected.

This is the perfect way to monitor a rental property, holiday home or even your home whilst your away from it.

The wireless gateway module comes with an AC power supply and a rechargeable lithium battery back-up so you never have to be disconnected.

The LED light indicator shows you if there is power, an alarm, a fault or internet connectivity, so you always know what state it's in.

Model: DHI-HY-GW02A
Compatible with WisuAlarm products
Multiplex communication based on Ethernet, Wi-Fi, and 4G
AC power supply accompanied by rechargeable lithium battery back-up
Support 1 LED indicator to illustrate the status of Power, Alarm, Fault and Internet Connectivity

Power Supply	AC100V-AC240V
Alarm Volume	70 dB
Wi-Fi Frequency	2.4 GHz (Incompatible with 5 GHz Wi-Finetwork)
Wi-Fi Transmission Range	50 m (164 ft)
Wi-Fi Protocol	IEEE 802.11b/g/n
Operating Frequency	868 MHz
Maximum Number of ConnectedDevices	128
Dimensions	L175mm × W175mm × H36mm (L6.89" ×W6.89" × H1.42")
Weight	500 g (1.10 lb)
Installation	Free standing / Wall mounting
LTE-FDD	B1/B3/B5/B7/B8/B20/B28
Battery back-up	4750mAh, 17.57Wh

Datasheet	Click here to download
User Manual	Click here to download

Overview

Features

Technical Data

Power Supply	AC100V-AC240V
Alarm Volume	70 dB
Wi-Fi Frequency	2.4 GHz (Incompatible with 5 GHz Wi-Finetwork)
Wi-Fi Transmission Range	50 m (164 ft)
Wi-Fi Protocol	IEEE 802.11b/g/n
Operating Frequency	868 MHz
Maximum Number of ConnectedDevices	128
Dimensions	L175mm × W175mm × H36mm (L6.89" ×W6.89" × H1.42")
Weight	500 g (1.10 lb)
Installation	Free standing / Wall mounting
LTE-FDD	B1/B3/B5/B7/B8/B20/B28
Battery back-up	4750mAh, 17.57Wh
