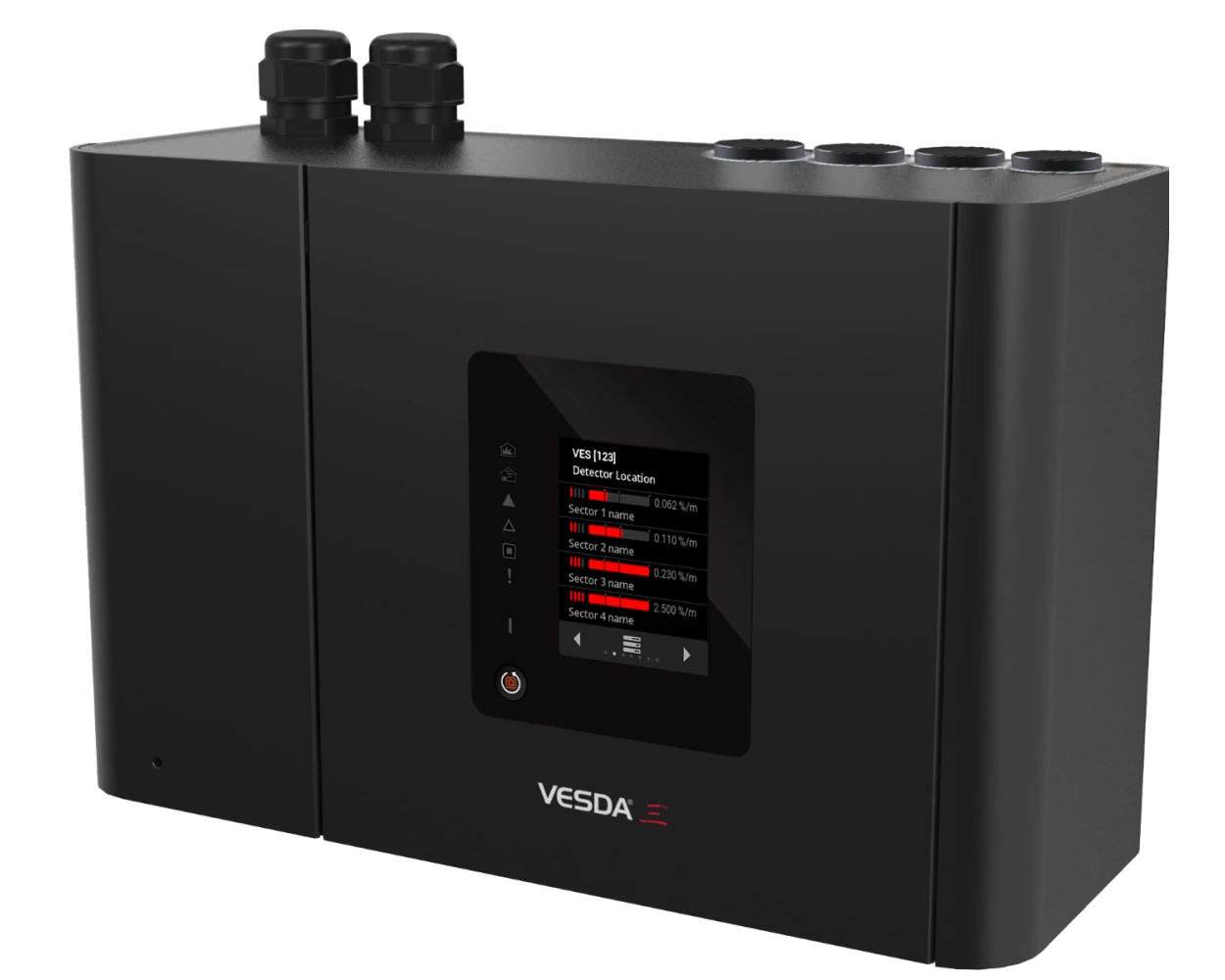

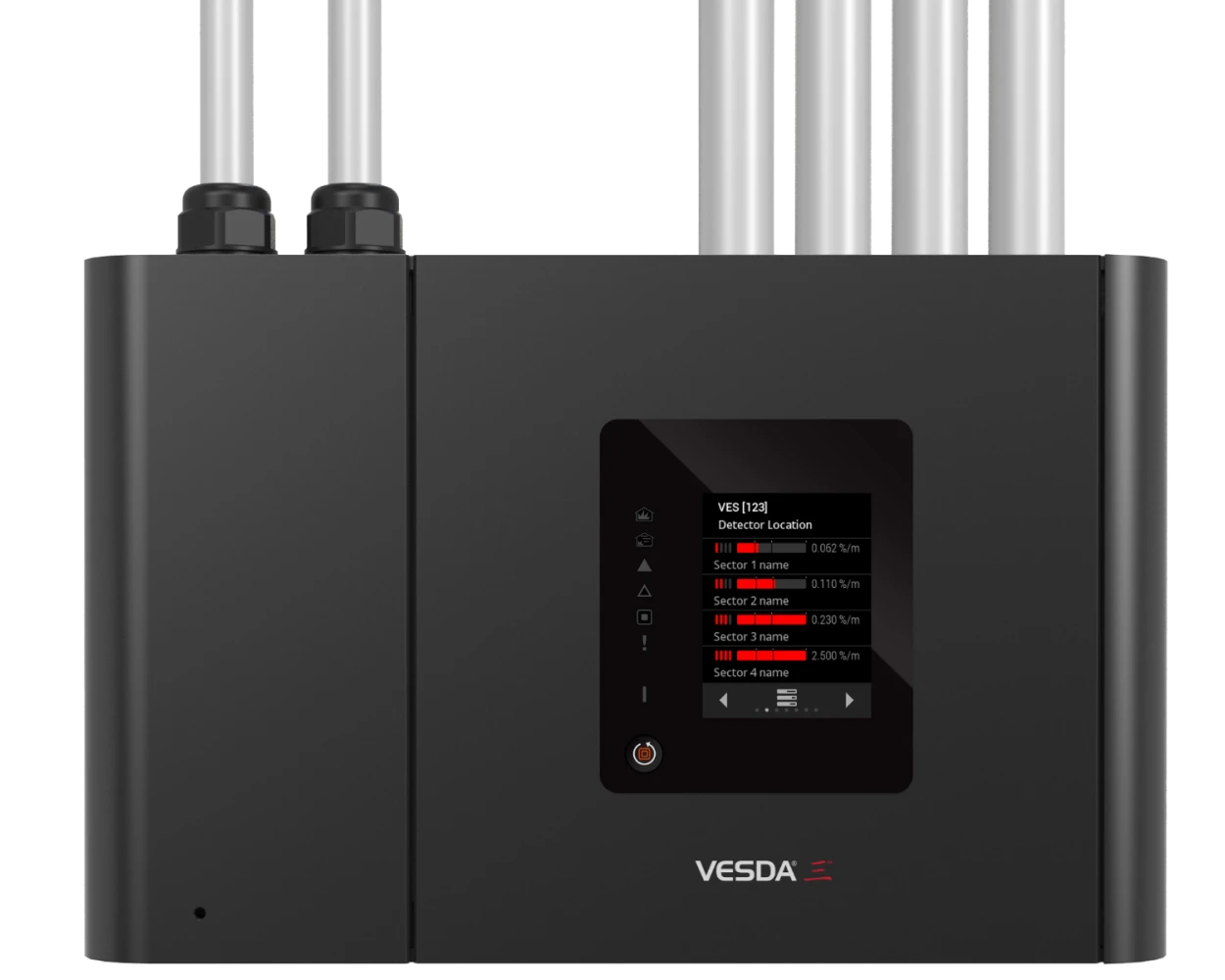

VESDA VES-A10-P with 3.5" Display

Name: VESDA VES-A10-P with 3.5" Display
Brand: Xtralis
Price: 5580 GBP
Availability: InStock

Code: FDS440/008

£5,580.00

INC VAT

Code: FDS440/008

In stock
Typically dispatched in 1-2 working days

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

The VESDA VES-A10-P is a high-performance aspirating smoke detector, engineered for early warning detection in mission-critical or high-risk environments.

Built on the renowned VESDA-E platform, the VES-A10-P combines powerful detection capabilities with flexible zone addressing and enhanced usability.

Ideal for data centres, clean rooms, server facilities, and other sensitive applications, this detector continuously draws air through up to four separate pipe networks, using advanced laser-based detection to identify smoke particles before they are visible.

It offers a wide sensitivity range (0.005–20% obscuration/m), ensuring rapid response even to the smallest traces of smoke.

With built-in Ethernet and USB connectivity, plus remote monitoring compatibility, the VES-A10-P offers intuitive configuration and diagnostics, helping ensure system integrity and compliance with fire safety regulations.

Four-pipe addressable system with individual pipe detection and zone mapping
Industry-leading sensitivity range of 0.005% to 20% obs/m
Airflow monitoring and adaptive environmental compensation
Intuitive touch-screen interface and remote monitoring support
Integrated Ethernet and USB connectivity
Robust diagnostics, event logging, and configuration tools
EN 54-20 Class A, B & C compliance

Category	Specification
Supply Voltage	18–30 VDC (24 V Nominal)
Power Consumption @ 24VDC
– Aspirator Setting	1
– Power (Quiescent)	7.5 W
– Power (In Alarm)	8.4 W
Power (VES-A10-P)	Quiescent: 9.2 W, 11.3 W, 17.3 W (for settings 1, 5, 10 respectively)
Dimensions (WHD)	350 mm x 225 mm x 135 mm (13.8 in x 8.9 in x 5.3 in)
Weight	4.7 kg (10.4 lbs)
Operating Conditions	Ambient: 0°C to 38°C (32°F to 100°F) Sampled Air: –20°C to 60°C (–4°F to 140°F)* Humidity: 95% RH, non-condensing
Area Coverage	2,000 m² (21,520 sq. ft)
Min. Airflow per Pipe	15 l/m
Pipe Length (Linear)	280 m (919 ft)**
Pipe Length (Branched)	560 m (1,837 ft)**
Pipe Lengths Based on No. of Pipes in Use	1 Pipe: 100 m (328 ft) 2 Pipes: 80 m (262 ft) 4 Pipes: 70 m (230 ft)
No. of Holes (A/B/C)	40/80/100**
Computer Design Tool	ASPIRE
Pipe Inlet/Exhaust Size	Inlet: External diameter 25 mm or 1.05 in (3/4 in IPS) Exhaust: External diameter 25 mm or 1.05 in (3/4 in IPS) via adaptor
Relays	12 programmable relays (latching/non-latching states) Contacts rated 2 A @ 30 VDC (Resistive)
IP Rating	IP40
Cable Access	4 x 26 mm (1.02 in) cable entries
Cable Termination	Screw terminal blocks 0.2–2.5 mm² (24–14 AWG)
Measurement Range	0.0015% to 20% obs/m (0.015% to 6.25% obs/ft)
Sensitivity Range	0.005% to 20% obs/m (0.0015% to 6.575% obs/ft)
Threshold Setting Range	Alert: 0.005% to 2.0% obs/m (0.0015% to 0.614% obs/ft) Action: 0.005% to 2.0% obs/m (0.0015% to 0.614% obs/ft) Fire 1: 0.020% to 2.0% obs/m (0.00625% to 0.614% obs/ft) Fire 2: 0.020% to 20.0% obs/m (0.00625% to 6.25% obs/ft)
Event Log	Up to 20,000 events
Software Features	Event log, intuitive LCD display, 4 alarm levels, user actions, alarms and faults AutoLearn Smoke and Flow Thresholds by zone Remote monitoring and configuration
