VESDA VEP-A00-1P | Single Pipe Aspirating Smoke Detector | LED Display

Name: VESDA VEP-A00-1P | Single Pipe Aspirating Smoke Detector | LED Display
Brand: Xtralis
Price: 1970.34 GBP
Availability: InStock

Code: FDS372/473

£1,970.34

INC VAT

Code: FDS372/473

In stock
Typically dispatched in 1-2 working days

Have a question about this? Click here

Overview Features Technical Data FAQs Downloads & Resources

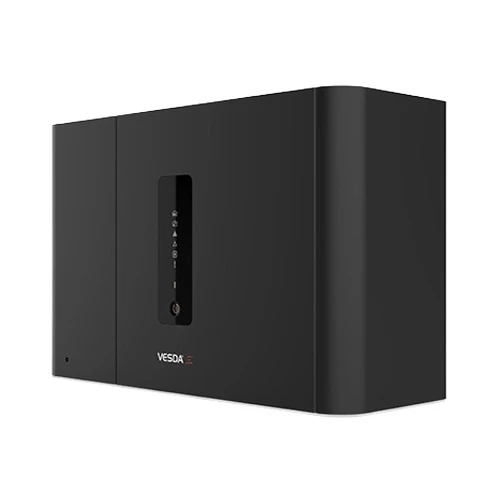

The VESDA-E VEP-A00-1P is a single-pipe aspirating smoke detector with LED status display, designed to deliver the earliest and most reliable warning of fire.

Built on advanced Flair™ detection technology, it offers exceptional sensitivity, long-term stability and rejection of nuisance alarms.

Ideal for mission-critical, commercial and high-sensitivity environments, this model provides absolute calibration, a wide dynamic range and built-in tools for intelligent commissioning and airflow learning.

It covers areas up to 1,000 m², making it suitable for applications such as server rooms, prisons, switchboards and cleanrooms. This version features a clear LED display to show alarm and system status at a glance.

Single-pipe model with LED status interface
High-sensitivity detection using Flair™ technology
Coverage up to 1,000 m² (10,760 sq ft)
Absolute calibration for consistent lifetime accuracy
Four configurable alarm levels: Alert, Action, Fire 1, Fire 2
AutoLearn™ smoke & flow for adaptive commissioning
Quiet operation with fixed aspirator setting
Compatible with ASPIRE pipe design and VESDAnet network
Ethernet and Wi-Fi connectivity for remote configuration
Backward-compatible with VLP and VESDA LaserPLUS installations
Approved to EN54-20 Class A/B/C (up to 30 sampling holes)

Specification	Details
Model	VEP-A00-1P
Pipe Capacity	1 pipe
Coverage Area	1,000 m² (10,760 sq ft)
Pipe Length (Linear / Branched)	100 m / 130 m
Supply Voltage	18–30 VDC (24 V nominal)
Power Consumption (Quiescent)	4.8 W
Power Consumption (In Alarm)	9.6 W
Aspirator Setting	Fixed
Sensitivity Range	0.005%–20% obs/m (0.0015%–6.25% obs/ft)
Alarm Thresholds	Configurable: Alert, Action, Fire 1, Fire 2
Dimensions (W x H x D)	350 mm x 225 mm x 135 mm
Weight	4.4 kg (9.7 lbs)
Display	LED indicators for power, fault, alarm & action
Interface	Ethernet, Wi-Fi, VESDAnet
IP Rating	IP30
Operating Temperature	0°C to 39°C (ambient), –20°C to 60°C (sampled air)
Humidity Range	5% to 95% RH (non-condensing)
Software Support	ASPIRE, VSC, Xtralis Configurator, AutoLearn
Compliance	EN54-20, CE, UL, VdS

What is the difference between VEP and VLP series?

The VEP series uses newer Flair™ detection technology and supports Ethernet, Wi-Fi and VESDAnet. It also features absolute calibration and higher performance across airflow and detection range.

Can I upgrade from a VESDA LaserPLUS using the same pipework?

Yes. The VEP-A00-1P is backward-compatible with existing pipe layouts and even uses the same mounting footprint and wiring.

How many sampling holes can I use on this detector?

Up to 30 holes, compliant with EN54-20 Class A, B or C depending on the application.

Can this unit be configured remotely?

Yes. The detector supports Ethernet and Wi-Fi connections for remote access using Xtralis VSC or configuration software.

Does this unit have a built-in display?

Yes. This model includes an LED display for easy visual status indication including power, fault, action and alarm states.

VESDA VEP-A00-1P Datasheet	Click here to download
VESDA VEP-A00-1P Installation Sheet	Click here to download
VESDA Brochure	Click here to download
