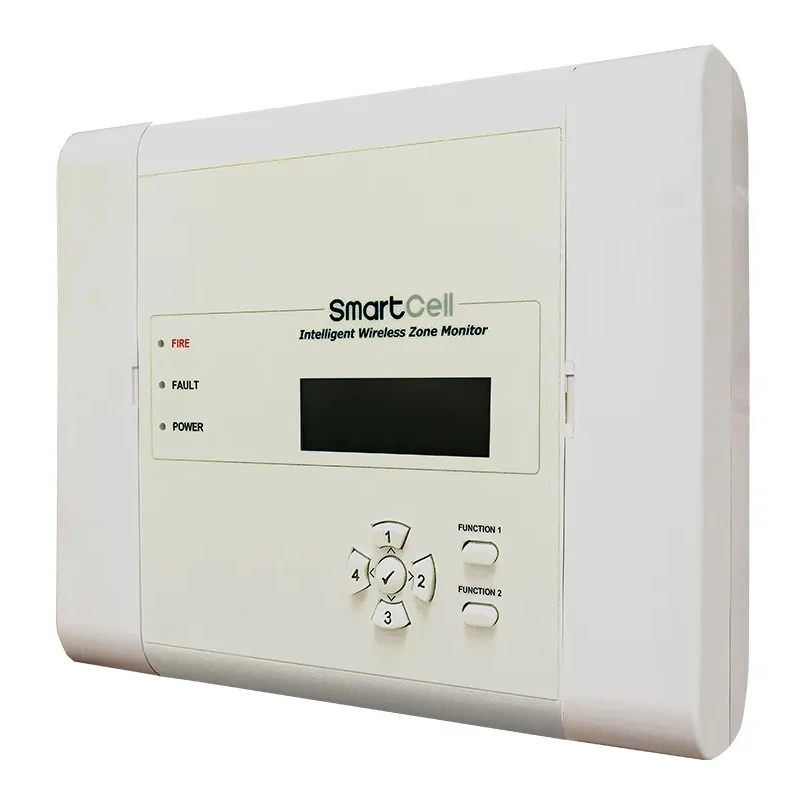

SmartCell WZM Wireless Zone Monitor | 230V

Name: SmartCell WZM Wireless Zone Monitor | 230V
Brand: Ems
Price: 438 GBP
Availability: InStock

Code: FDS100/999

£438.00

INC VAT

Code: FDS100/999

Supports up to 16 SmartCell wireless fire devices
Addressable & conventional control panel connections
230V

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

The Wireless Zone Monitor (WZM) supports up to 16 SmartCell wireless fire devices with bidirectional communication between devices on the European harmonised 868MHz frequency band.

Designed with flexibility in mind, connection can be made to both conventional and addressable fire alarm systems.

Quick and easy to install
SmartCell WZM and its wireless devices make it possible to quickly achieve compliance with the latest fire regulations in a fraction of the time needed with cabled alternatives through reduced installation time and less disruption on site.

Highly adaptable
SmartCell WZM is suitable for virtually any building and in many cases exceeds the performance and flexibility of a wired devices. SmartCell WZM offers onboard connections for both addressable and conventional fire alarm systems and accommodates up to 16 SmartCell wireless fire devices.

Cost effective
Eliminating expensive fire rated cable and the associated labour costs, extensive savings can be made throughout the installation and maintenance process as well as an overall sounder reduction on the cost of ownership.

Supports up to 16 SmartCell wireless fire devices
Addressable & conventional control panel connections
230V
80 character LCD display
USB-A & USB-B connectivity
48 hr battery backup

Category	Specification
Electrical	Power supply type: 230 VAC
	Operating voltage: 220 to 240 VAC, 50 Hz, 0.3 A
	Current consumption: 5 mA (PSU), plus 100 mA from WZM
Input	Input quantity: 2
	Input type and rating: Resistor monitored inputs
Output	Output quantity: 2
	Output type and rating: 1 × fire & 1 × fault, rated 30 V @ 1 A
Physical	Dimensions: 275 × 220 × 80 mm (W × H × D)
	Net weight: 1.55 kg
	Colour: White
	Mounting type: Surface mount

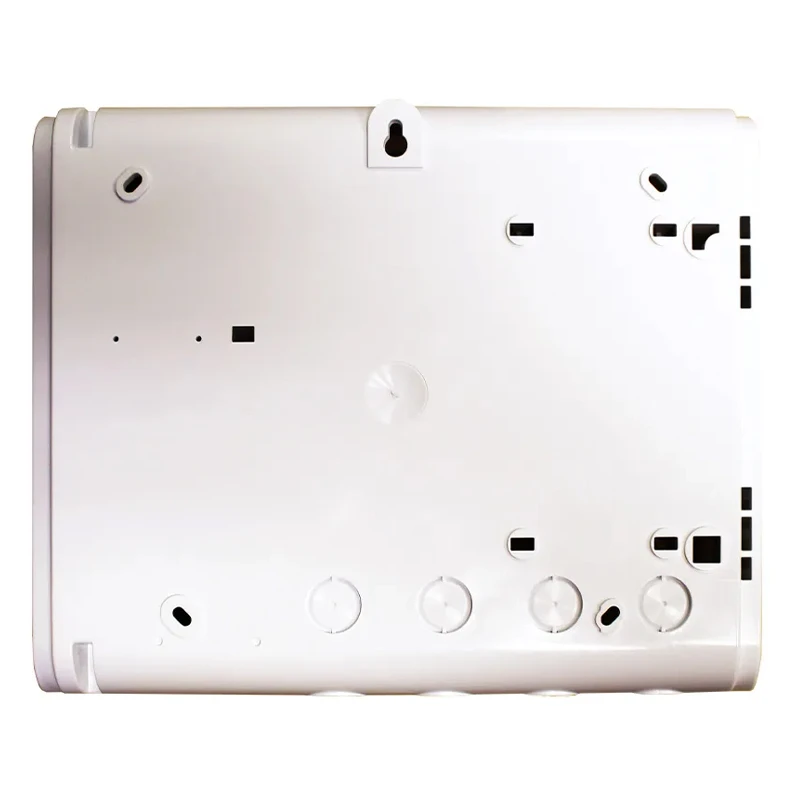

	Cable entries: 4 × 100 mm (bottom) / 4 × 100 mm (back)
	Batteries: 6 V, 4 Ah
Environmental	Operating temperature: -5 to +45°C
	Storage temperature: 0 to +30°C
	Relative humidity: 95% noncondensing max.
	Environment: Indoor
	IP rating: IP30
Regulatory	Compliancy: CE
	Certification: CPR
	Standards: EN54-13
	Standards: EN54-18
	Standards: EN54-25
Wireless Signalling	Operating frequency: 868 to 870 MHz
	Output transmitter: 14 dBm max. / 25 mW

SmartCell WZM Wireless Zone Monitor Datasheet

Click here to download
