SmartCell SC-33-0120-0001 | Wireless Ceiling Sounder VAD | Red Body White Flash

Sub-total £157.75

Compatible

Product	Price (ex VAT)	Quantity	Total (ex VAT)
	£ ex VAT		£0.00

Sub-total

Have you seen the same FireShield products?
Shop now for more competitive prices and a greater range.

Shop Now

Continue

SmartCell SC-33-0120-0001 | Wireless Ceiling Sounder VAD | Red Body White Flash

Name: SmartCell SC-33-0120-0001 | Wireless Ceiling Sounder VAD | Red Body White Flash
Brand: Ems
Price: 189.3 GBP
Availability: InStock

Code: FDS372/158

£189.30

INC VAT

Code: FDS372/158

32 Sounder Tones
White flash VAD
Ceiling mount only

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

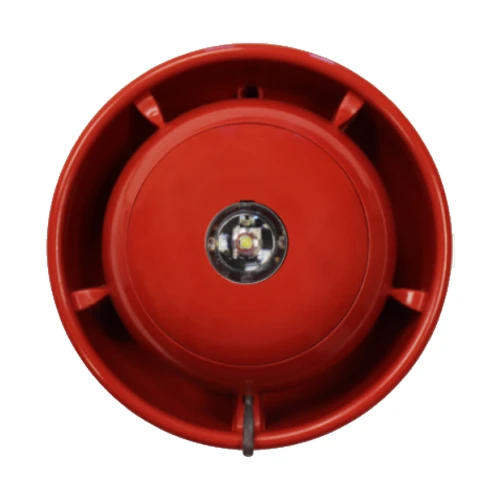

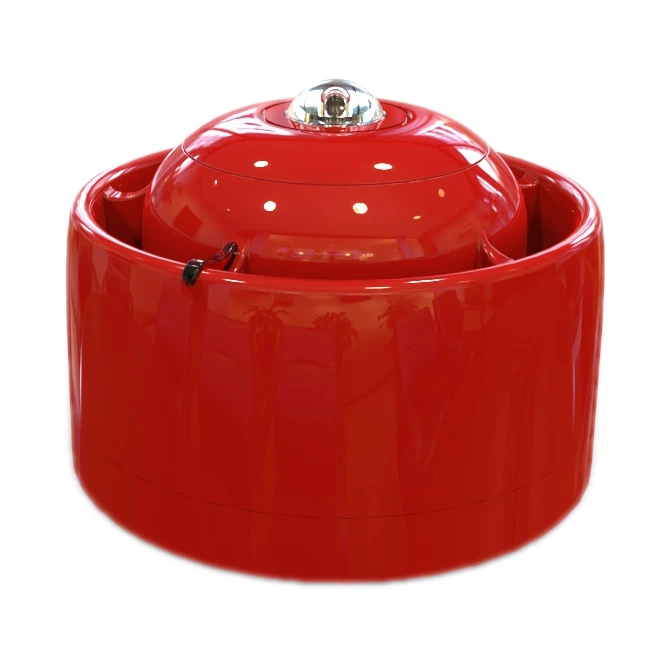

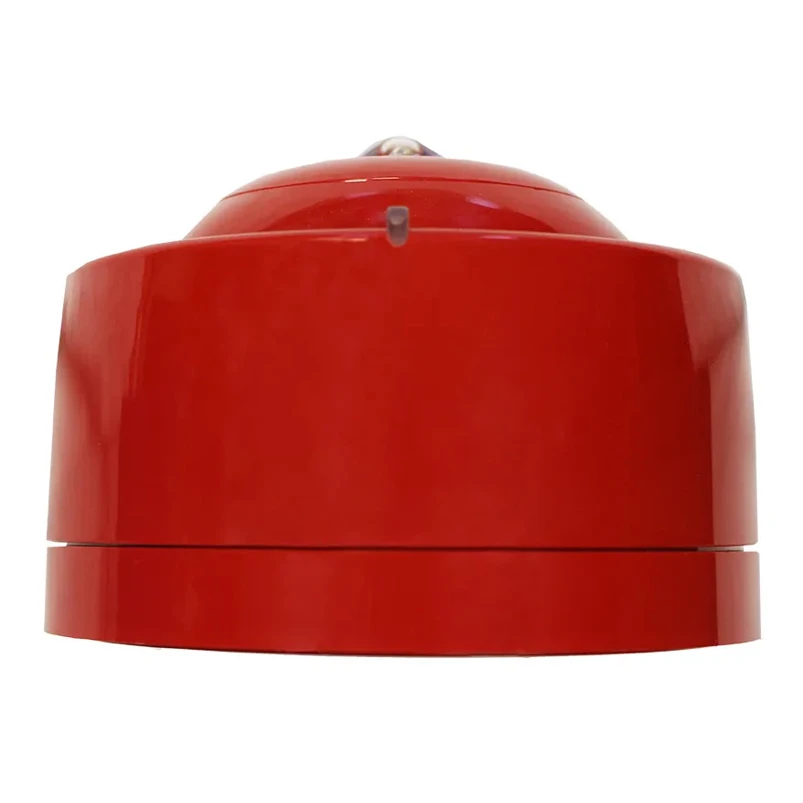

The SC-33-0120-0001 is a fully wireless, ceiling-mounted sounder with an integrated visual alarm device (VAD), finished in red with a white flash.

Certified to EN 54-3 and EN 54-23 standards, it delivers clear and reliable audio-visual alerts as part of the SmartCell wireless fire detection system.

Operating on the secure 868 MHz wireless frequency, it supports 32 selectable tones and is powered by long-life lithium batteries for extended service life.

Its cable-free design and locking base mechanism make installation fast and straightforward, reducing disruption and labour costs.

Ideal for residential properties, HMOs and light commercial environments.

32 Sounder Tones
White flash VAD
Ceiling mount only
Category C-3-12

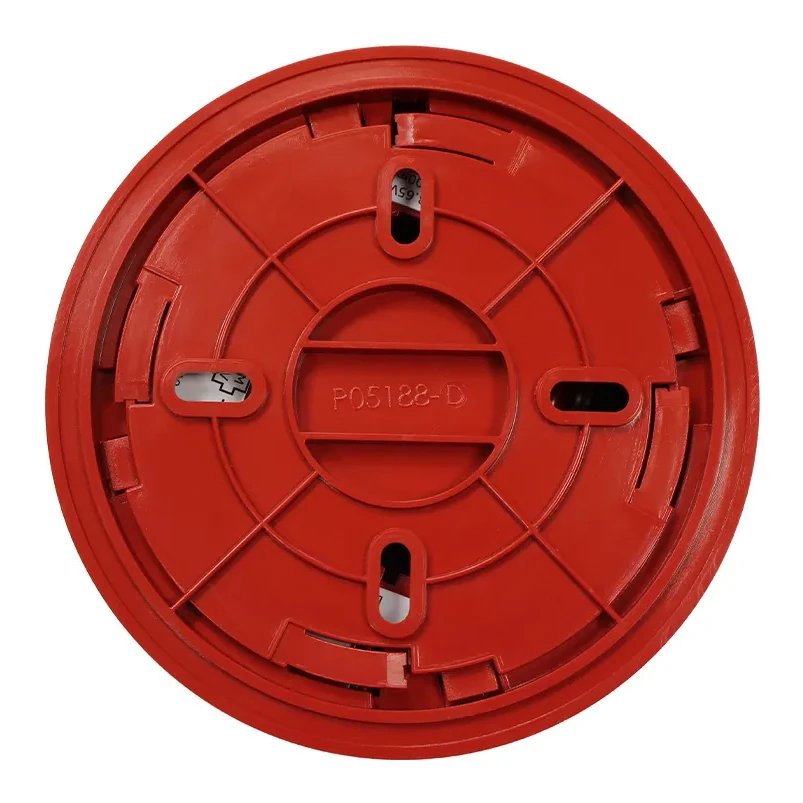

Locking base design
Includes 3x 3.6 V Lithium batteries.

Category	Specification
Sounder	Output level: 92 dB(A) at 1 m max.
	Selectable tones: 32
	Output level adjustment: High or low
VAD	Colour: White flash
	Rating: C-3-12
	Flash frequency: 0.5 Hz (1 flash every 2 seconds)
General	Wireless frequency: 868 MHz
Physical	Dimensions: 110 × 79 mm (Ø × D)
	Net weight: 0.2 kg
	Colour: Red
	Mounting type: Ceiling mount
	Batteries: 3 × ER14505M 3.6 V lithium thionyl chloride batteries (Fanso or HCB)
Environmental	Operating temperature: -10 to +55°C
	Storage temperature: -10 to +30°C (with batteries)
	Storage temperature: -10 to +55°C (without batteries)
	Relative humidity: 95% noncondensing max.
	Environment: Indoor
	IP rating: IP21C
Standards & Regulation	Compliancy: CE
	Certification: CPR
	Standards: EN54-3
	Standards: EN54-13
	Standards: EN54-23
	Standards: EN54-25

SmartCell SC-33-0120-0001 Datasheet

Click here to download

Overview

Features

Technical Data

Category	Specification
Sounder	Output level: 92 dB(A) at 1 m max.
	Selectable tones: 32
	Output level adjustment: High or low
VAD	Colour: White flash
	Rating: C-3-12
	Flash frequency: 0.5 Hz (1 flash every 2 seconds)
General	Wireless frequency: 868 MHz
Physical	Dimensions: 110 × 79 mm (Ø × D)
	Net weight: 0.2 kg
	Colour: Red
	Mounting type: Ceiling mount
	Batteries: 3 × ER14505M 3.6 V lithium thionyl chloride batteries (Fanso or HCB)
Environmental	Operating temperature: -10 to +55°C
	Storage temperature: -10 to +30°C (with batteries)
	Storage temperature: -10 to +55°C (without batteries)
	Relative humidity: 95% noncondensing max.
	Environment: Indoor
	IP rating: IP21C
Standards & Regulation	Compliancy: CE
	Certification: CPR
	Standards: EN54-3
	Standards: EN54-13
	Standards: EN54-23
	Standards: EN54-25

Downloads & Resources
