SmartCell SC-41-0200-0001 Dual Input/Output Unit

Name: SmartCell SC-41-0200-0001 Dual Input/Output Unit
Brand: Ems
Price: 168.29999999999998 GBP
Availability: InStock

Code: FDS372/160

£168.30

INC VAT

Code: FDS372/160

In stock
Typically dispatched in 2-3 working days

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

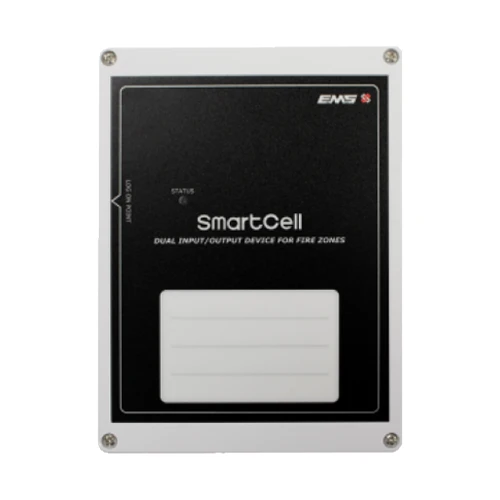

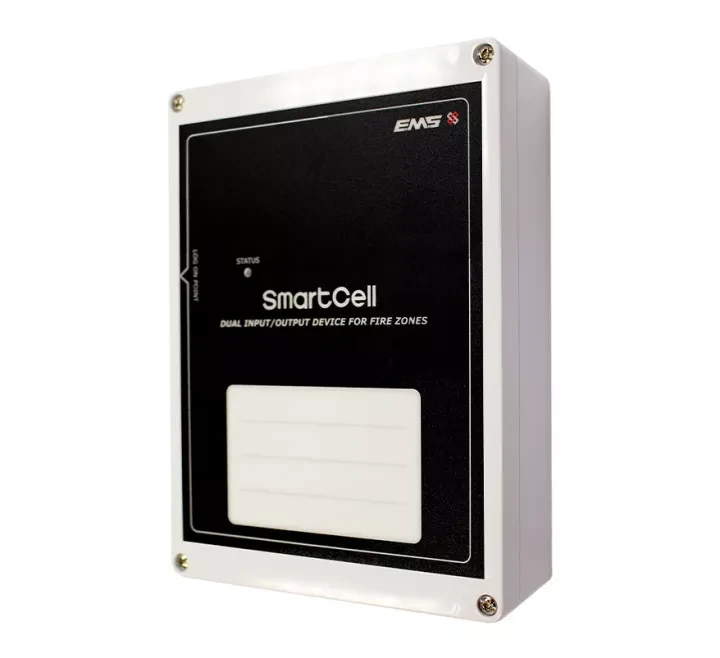

The SmartCell SC-41-0200-0001 Wireless Dual Input / Output Unit is designed to provide wireless monitoring and control of third-party equipment as part of the SmartCell wireless fire alarm system.

This module allows seamless integration with auxiliary systems such as fire doors, plant shutdowns, ventilation systems, lifts and sprinkler interfaces, enabling both input monitoring and output control during fire alarm events.

Featuring two monitored inputs and two voltage-free relay outputs, the SC-41-0200-0001 supports flexible cause-and-effect programming within the SmartCell system.

Operating on the secure SmartCell 868 MHz wireless platform, the unit enables cable-free installation and is powered by long-life lithium batteries to reduce installation time and ongoing maintenance.

Fully compliant with EN 54-18 (Input/Output devices) and EN 54-25 (Wireless fire alarm systems), this device is suitable for residential, HMO and light commercial applications where reliable wireless integration is required.

Wireless dual input / output module for SmartCell systems
Two monitored inputs for external device status
Two voltage-free relay outputs for control functions
Fully compliant with EN 54-18 and EN 54-25
Operates on SmartCell secure 868 MHz wireless network
Battery powered for fast, cable-free installation
Suitable for fire doors, HVAC shutdowns, lifts and plant interfaces
Supplied with 3 × 3.6 V lithium batteries
Ideal for residential, HMO and light commercial systems

Category	Specification
General	Wireless frequency: 868 MHz
Input	Input quantity: 2
	Input type and rating: Resistor monitored inputs
Output	Output quantity: 2
	Output type and rating: Voltage free outputs, rated 1 A at 30 VDC
Physical	Dimensions: 150 × 200 × 55 mm (W × H × D)
	Net weight: 0.45 kg
	Mounting type: Wall mount
	Batteries: 3 × ER14505M 3.6 V lithium thionyl chloride batteries (Fanso or Titus)
Environmental	Operating temperature: -10 to +55°C
	Storage temperature: -10 to +30°C (with batteries)
	Storage temperature: -10 to +55°C (without batteries)
	Relative humidity: 95% noncondensing max.
	Environment: Indoor
Regulatory	Compliancy: CE
	Certification: CPR
	Standards: EN54-13
	Standards: EN54-18
	Standards: EN54-25

SmartCell SC-41-0200-0001 Datasheet

Click here to download
