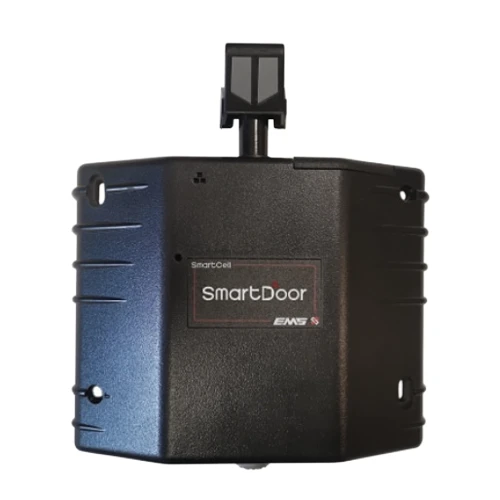

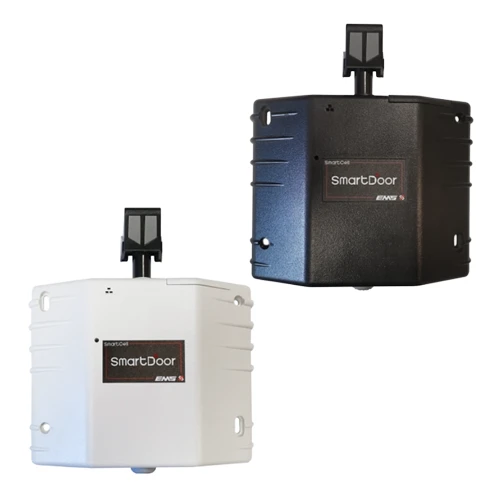

SmartDoor is an intelligent wireless acoustic fire door closer that holds fire doors open under normal conditions and automatically closes them when the fire alarm activates. Fully integrated with the SmartCell system, it ensures safe door management while keeping compliance at the forefront.
Built with proven mechanics and EN-certified SmartCell wireless technology, SmartDoor operates on the 868 MHz European harmonised frequency band.
Each device can be individually addressed at the SmartCell control panel, giving engineers precise control across the site.
Third-party certified and fully compatible with the complete SmartCell range, SmartDoor is quick to install and offers reliable performance for a wide variety of fire door applications.
Wireless door controller fully integrated with SmartCell fire systems
Individually addressed at the SmartCell control panel for precise management
Operates on the 868 MHz European harmonised frequency band
Third-party certified to EN54-25, EN1155 and BS7273-4 (Category B)
Suitable for doors up to 1600 mm wide and 160 kg in weight
Quick installation with reliable battery-powered operation (2 x C alkaline)
Specification | Detail |
---|---|
Operating / Storage Temperature (without batteries) | -10 to +55 °C |
Storage Temperature (with batteries) | -10 to +30 °C |
Power Supply | 2 x C alkaline batteries (Panasonic Powerline LR14AD, Varta Industrial 4014) |
Device Type | Type A, indoor use only |
Frequency | 868 MHz |
RF Power | 14 dBm / 25 mW |
Signalling Protocol | X5 |
Dimensions (W x H x D) | 195 x 205 x 45 mm |
Weight | 0.5 kg |
Max. Hold Open Power Size | 7 |
Max. Door Leaf Width | 1600 mm |
Max. Door Weight | 160 kg |
Certification | EN54-25, EN 1155 & BS7273-4 (Category B) |
Approvals | CE, UKCA, ICASA, FG, DBI |
DoP Reference | 0905-CPR-202117 |
Product Code | SC-44-0200-0001-99 (white) |
