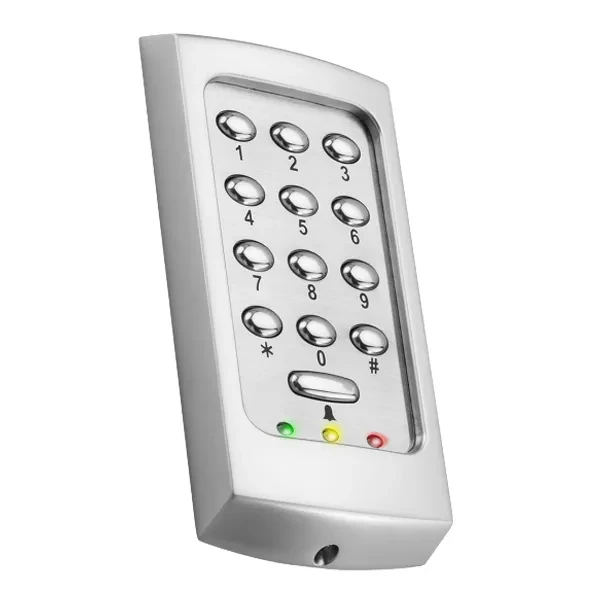

Paxton 372-210 Compact TOUCHLOCK Stainless Steel Keypad - K75

The Paxton 372-210 Compact TOUCHLOCK Stainless Steel Keypad K75 provides standalone PIN or code-based access control without requiring a PC for setup. Combining the keypad and control unit in one housing, it provides a self-contained solution for restricting access to individual doors. The system supports up to 50 PINs and is designed for lower-security internal and external door applications.

Users gain access by entering an authorised code, with three LEDs and an audible tone providing clear status indication. All three LEDs are illuminated by default, while a flashing green LED confirms access granted and a flashing red LED indicates access denied. Codes can be configured from 4 to 8 digits, with Normal, Toggle, Duress and Delete code types available through the keypad programming functions. Door release time is adjustable from 1 to 60 seconds.

The K75 operates from an 11V to 14V DC supply and provides a 12V DC lock output rated at 750mA at 12V. It supports both fail open and fail closed locking arrangements and includes an exit button input and bell button output. Silent operation can also be selected where audible keypad feedback is not required.

For fixed-cable installations, the keypad is rated IPX7 and operates from -20°C to +55°C. The stainless steel construction has a medium vandal resistance rating, while the K75 housing measures 75mm wide by 143mm high by 16mm deep. Data is retained for more than 10 years during a total power loss, helping preserve programmed settings during extended periods without power.

• 372-210

• Standalone PIN and code access control keypad

• Supports up to 50 PINs

• 4 to 8 digit code length

• 11V to 14V DC operating voltage

• 750mA @ 12V DC lock output

• Supports fail open and fail closed locks

• Adjustable 1 to 60 second door open time

• IPX7 moisture resistance on the fixed-cable version

• Stainless steel construction with medium vandal resistance
