Name: KAC CWSO-RR Red Conventional Sounder
Brand: Kac
SKU: FDS372/261
Price: 19.139999999999997 GBP
Availability: InStock

Code: FDS372/261

£19.14

INC VAT

Code: FDS372/261

Base

In stock
Typically dispatched in 2-3 working days

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

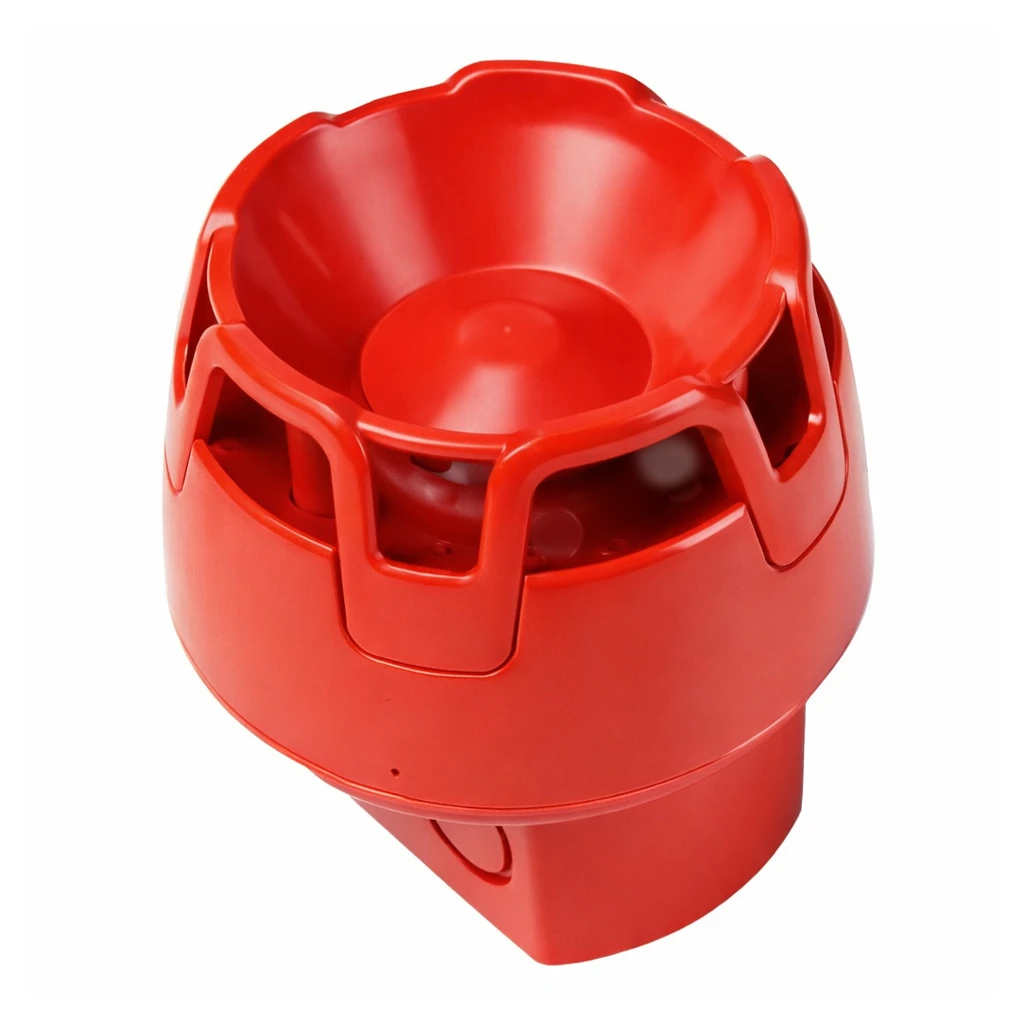

The KAC CWSO-RR Red Conventional Fire Alarm Sounder is a high-performance audible warning device designed for use with conventional fire alarm systems.

Providing powerful and reliable alarm signalling, this red conventional fire alarm sounder delivers up to 107dB at 1 metre, ensuring clear and effective evacuation alerts in commercial, industrial and public buildings.

Approved to EN54-3, the CWSO-RR combines strong acoustic performance with low current consumption, making it suitable for a wide range of conventional fire alarm installations where dependable audible warning is essential.

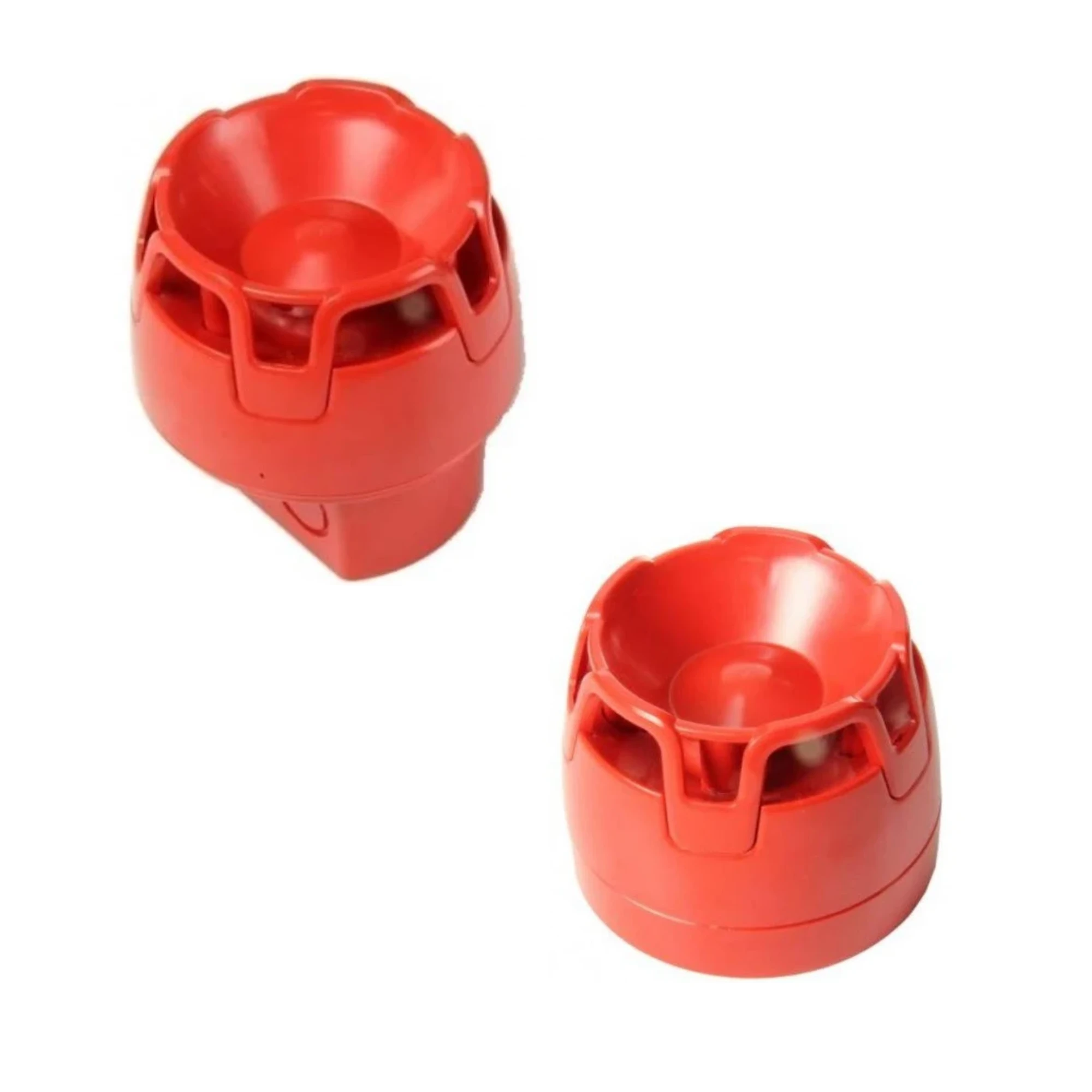

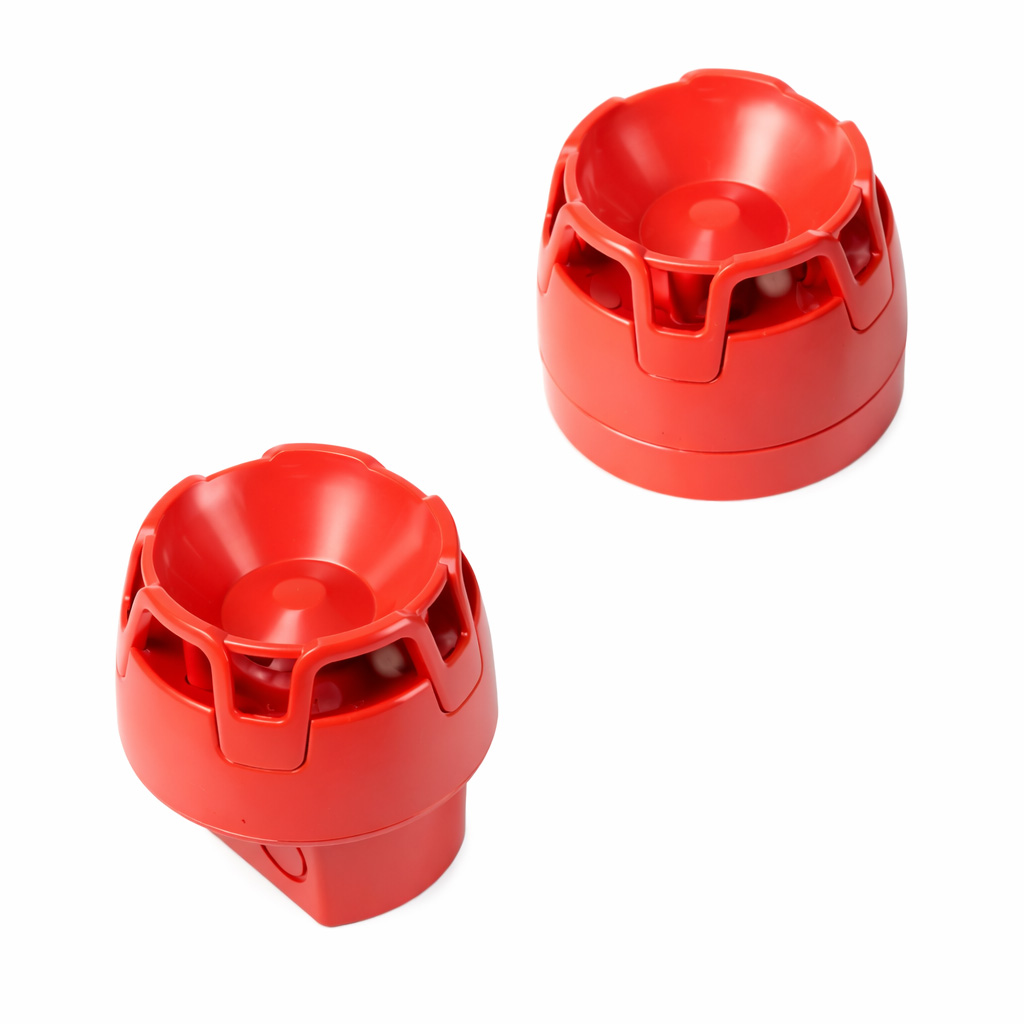

The sounder features a robust red housing and an IP65-rated deep base option, allowing it to be installed in both indoor environments and more demanding locations where additional environmental protection is required.

Designed with installers in mind, the unit includes multiple cable entry points, common fixing centres and a positive fit base that provides clear engagement feedback during installation.

With 32 selectable tones and adjustable volume settings, the KAC CWSO-RR conventional sounder offers flexibility to suit different building requirements while maintaining full EN54-3 compliance.

KAC CWSO-RR-W1/S1
Compatible with all conventional systems
Deep base option with multiple cable entries for flexible installation.
9 - 28vdc voltage range.
Selectable volume.
IP65 rated
Designed with full range of common fixing centres.
Positive fit engagement and feedback of base with device for easy installation.
Approved to EN54-3.
32 tones all approved to EN54-3.
107dB @ 1m

Specification	Details
Operating Voltage	9 to 29 VDC (Approved to EN54-3 @ 9–14V and 18–29V)
Average Current Consumption	31 mA @ 29 VDC (Tone 8)
Maximum Sound Output	107 dB(A) @ 1 m (Tone 23)
Operating Temperature	-25°C to 70°C
Relative Humidity	93% ±3% non-condensing
Ingress Protection	IP21C (low profile base), IP65 (deep base)
Body Colour	Red / White
Number of Tones	32 (includes bell tone)
Volume Setting	High or Medium
Cable Termination Size	0.5 – 2.5 mm²
Material	Flame retardant PC/ABS
Gross Weight – Standard Device	Low profile: 190 g / Deep (IP65): 197 g
Gross Weight – First Fix Option	Low profile: 200 g / Deep (IP65): 207 g

KAC Conventional Sounder Datasheet

Click here to download

Overview

Features

Technical Data

Specification	Details
Operating Voltage	9 to 29 VDC (Approved to EN54-3 @ 9–14V and 18–29V)
Average Current Consumption	31 mA @ 29 VDC (Tone 8)
Maximum Sound Output	107 dB(A) @ 1 m (Tone 23)
Operating Temperature	-25°C to 70°C
Relative Humidity	93% ±3% non-condensing
Ingress Protection	IP21C (low profile base), IP65 (deep base)
Body Colour	Red / White
Number of Tones	32 (includes bell tone)
Volume Setting	High or Medium
Cable Termination Size	0.5 – 2.5 mm²
Material	Flame retardant PC/ABS
Gross Weight – Standard Device	Low profile: 190 g / Deep (IP65): 197 g
Gross Weight – First Fix Option	Low profile: 200 g / Deep (IP65): 207 g

Downloads & Resources
