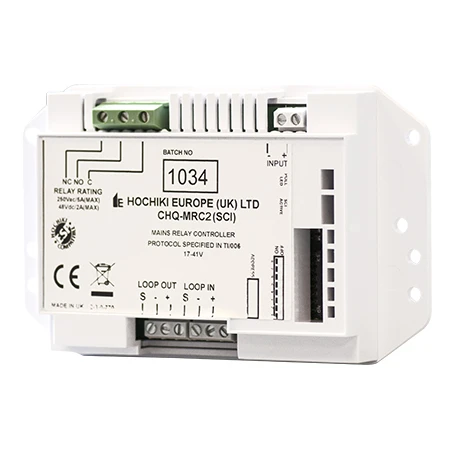

Hochiki MRC2(SCI) | Addressable Mains Switching Relay

The Hochiki CHQ-MRC2(SCI) is a mains relay controller providing a single mains-rated relay output for the control of such devices as dampers, extractors or plant and equipment shutdown. The monitored input can be used for local power supply fault monitoring or as a general-purpose input. Also available as a DIN Rail mountable version. Both models feature an integral short-circuit isolator.

Unit comes without mounting plate or cover (available separately - FDS900/102)

• Loop-powered

• Single loop address

• Single mains-rated relay contact

• Relay contact rated at 250 Vac @ 5 A (resistive load only) & 48Vdc @ 2 A (resistive load only)

• Auxiliary monitored input

• Both models feature an integral short-circuit isolator

• Both models approved by LPCB

• Requires CHQ-Sub and Box
