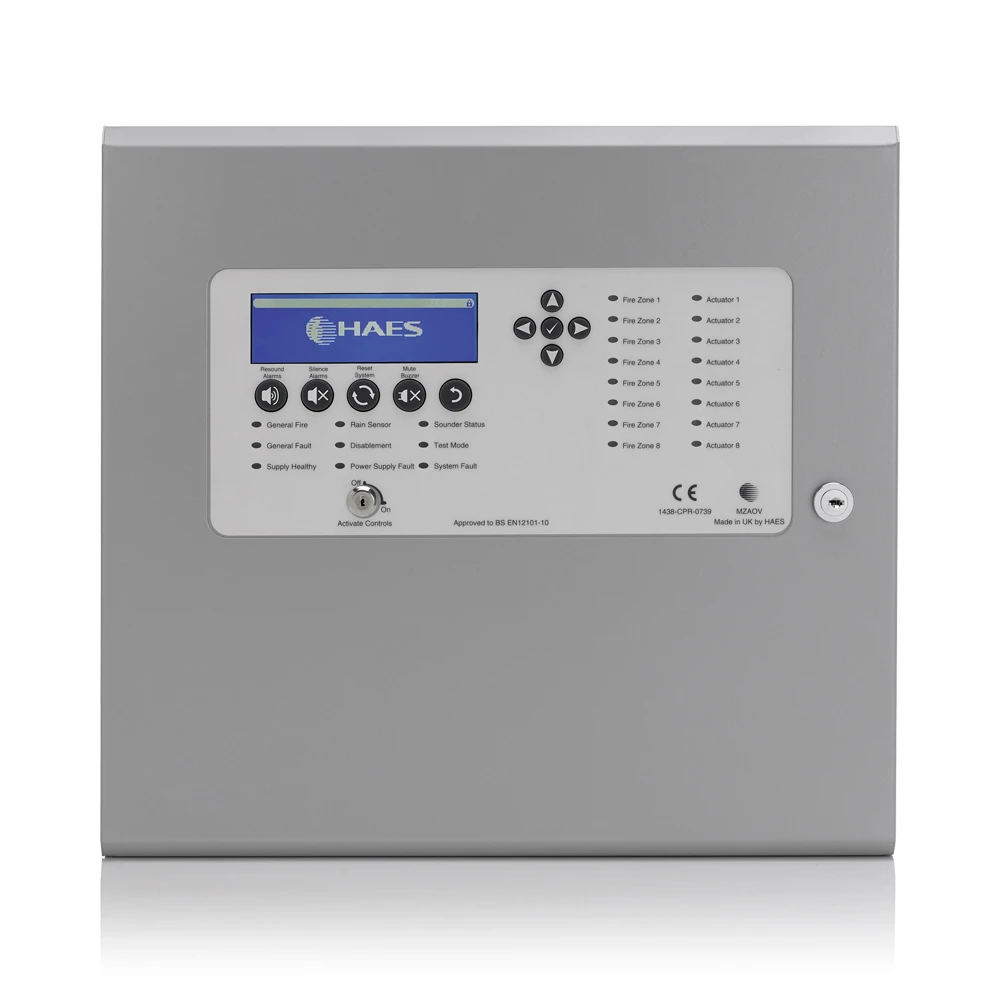

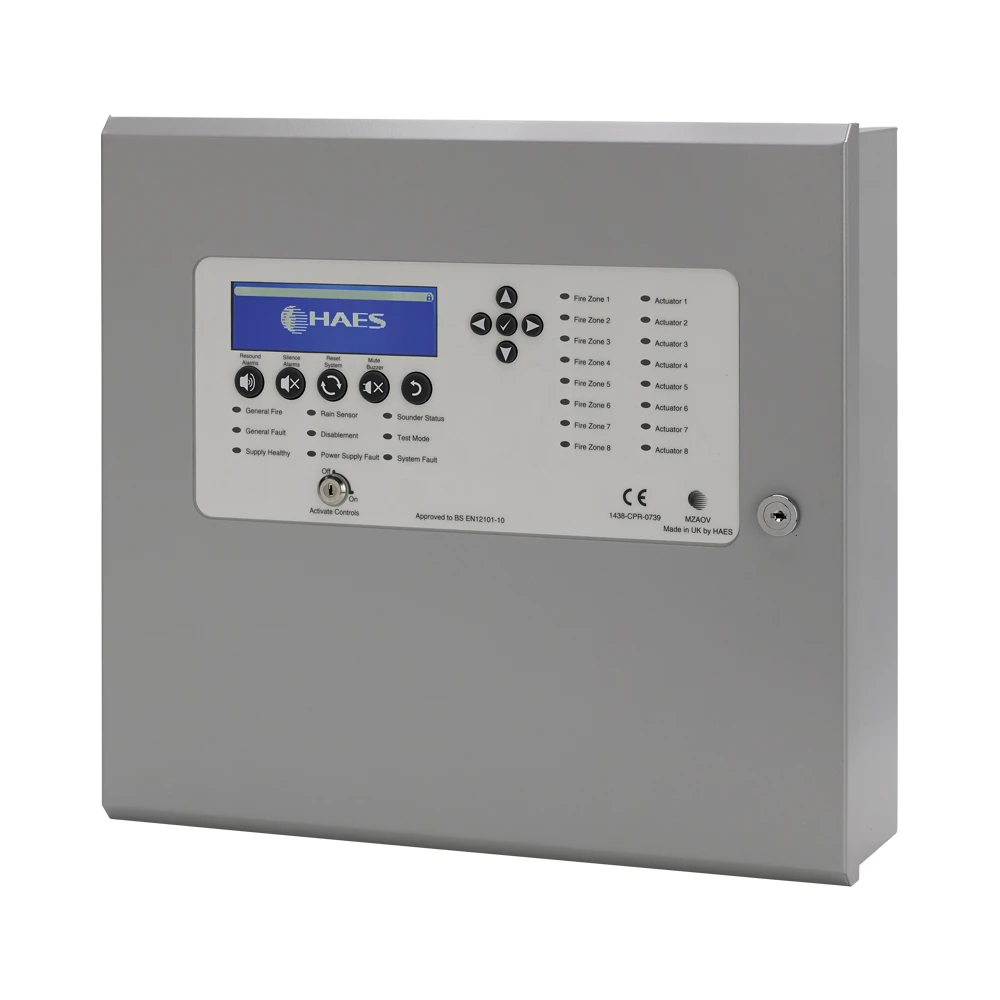

Haes MZAOV-1001A 3A 1 Zone AOV Control Panel - Non-Extendable

The Haes MZAOV-1001A is a single zone Automatic Opening Vent control panel designed for straightforward smoke ventilation applications where system expansion is not required.

This non-extendable panel features an integral 3 amp power supply and is designed to control 24V DC actuators or magnetic devices used with vents, windows and rooflights.

Battery backup is included as standard, ensuring continued operation of connected actuators during a mains power failure.

All vent controls and status indications are positioned on the front of the panel and displayed via a large graphical LCD, providing clear visibility and simple system configuration.

Supporting conventional and twin wire detection, the MZAOV-1001A offers a reliable and compact solution for single zone smoke control installations.

Manufactured in the UK, it forms part of the wider MZAOV range, delivering consistent performance and compliance across automatic opening vent systems.

• Single zone Automatic Opening Vent control panel

• Non-extendable design

• Integral 3A power supply with battery backup

• Large graphical LCD display

• Conventional or twin wire detection compatibility

• Monitored actuator output for 24V DC vents or magnets

• Fireman’s switch input for Open, Close and Auto override

• Thermostat input for ventilation mode in 10% steps

• User switch inputs configurable as local fireman switches

• All inputs and outputs monitored for open and short circuit

• Monitoring of unused inputs and outputs can be disabled
