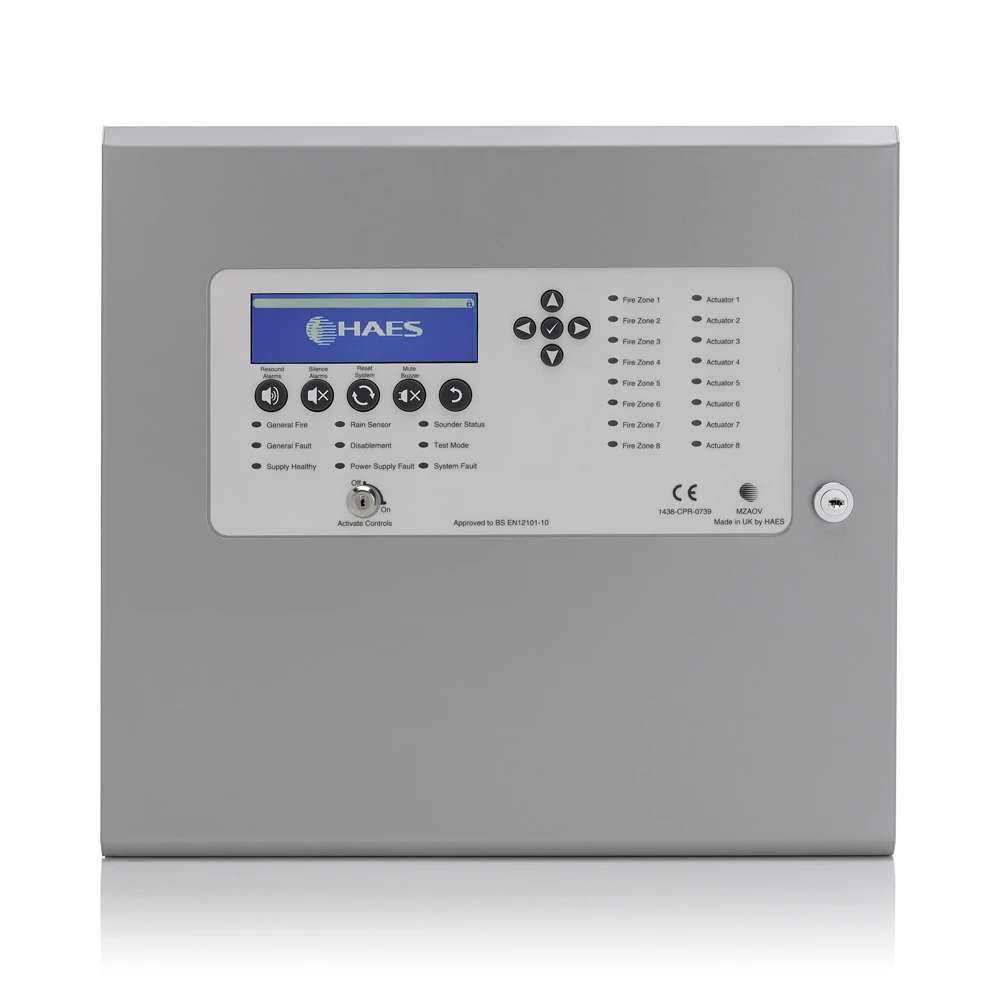

Haes MZAOV-1002 5A 2 Zone AOV Control Panel

The Haes MZAOV-1002 is a multi-zone Automatic Opening Vent control panel designed for smoke ventilation systems in larger or higher-load applications.

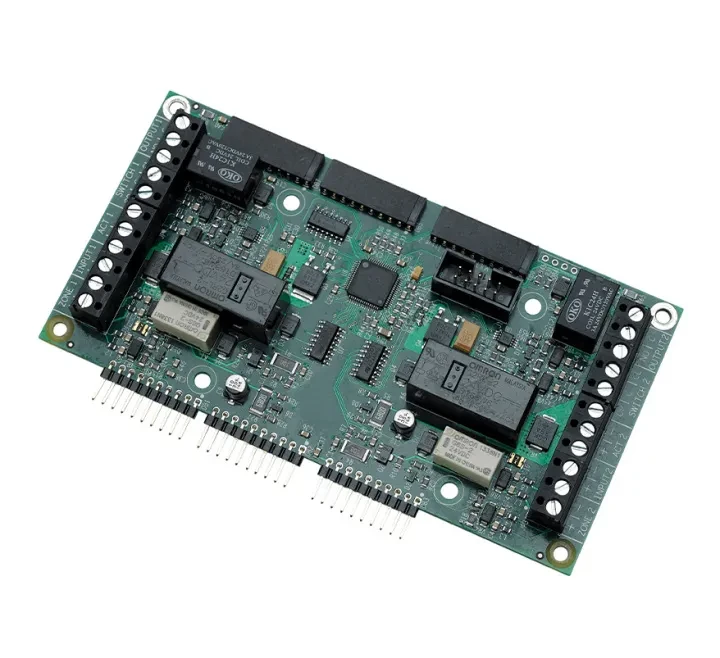

Supplied as a two-zone panel as standard, it can be expanded to four detection zones using extension cards, providing flexibility for evolving system requirements.

An integral 5 amp power supply with battery backup ensures reliable operation of 24V DC actuators or magnetic devices, even during mains power failure.

All vent controls and status indications are located on the front of the panel and displayed via a large graphical LCD, allowing clear system visibility and straightforward configuration.

The MZAOV-1002 supports conventional and twin wire detection and offers optional integration with rain sensors, PIR devices and Building Management Systems via plug-in add-on cards.

Designed and manufactured in the UK, the MZAOV range provides a comprehensive, compliant solution for smoke control and environmental ventilation scenarios.

• Multi-zone Automatic Opening Vent control panel

• Two detection zones as standard, expandable to four

• Integral 5A power supply with battery backup

• Large graphical LCD display

• Conventional and twin wire detection compatibility

• Monitored actuator outputs for 24V DC vents or magnets

• Fireman’s switch input for Open, Close and Auto control

• Thermostat input for ventilation mode in 10% steps

• Actuators configurable for independent or linked operation to EN 12101-9

• Optional rain sensor, PIR and BMS integration

• Staggered actuator start to reduce inrush current

• Monitoring of unused inputs and outputs can be disabled
