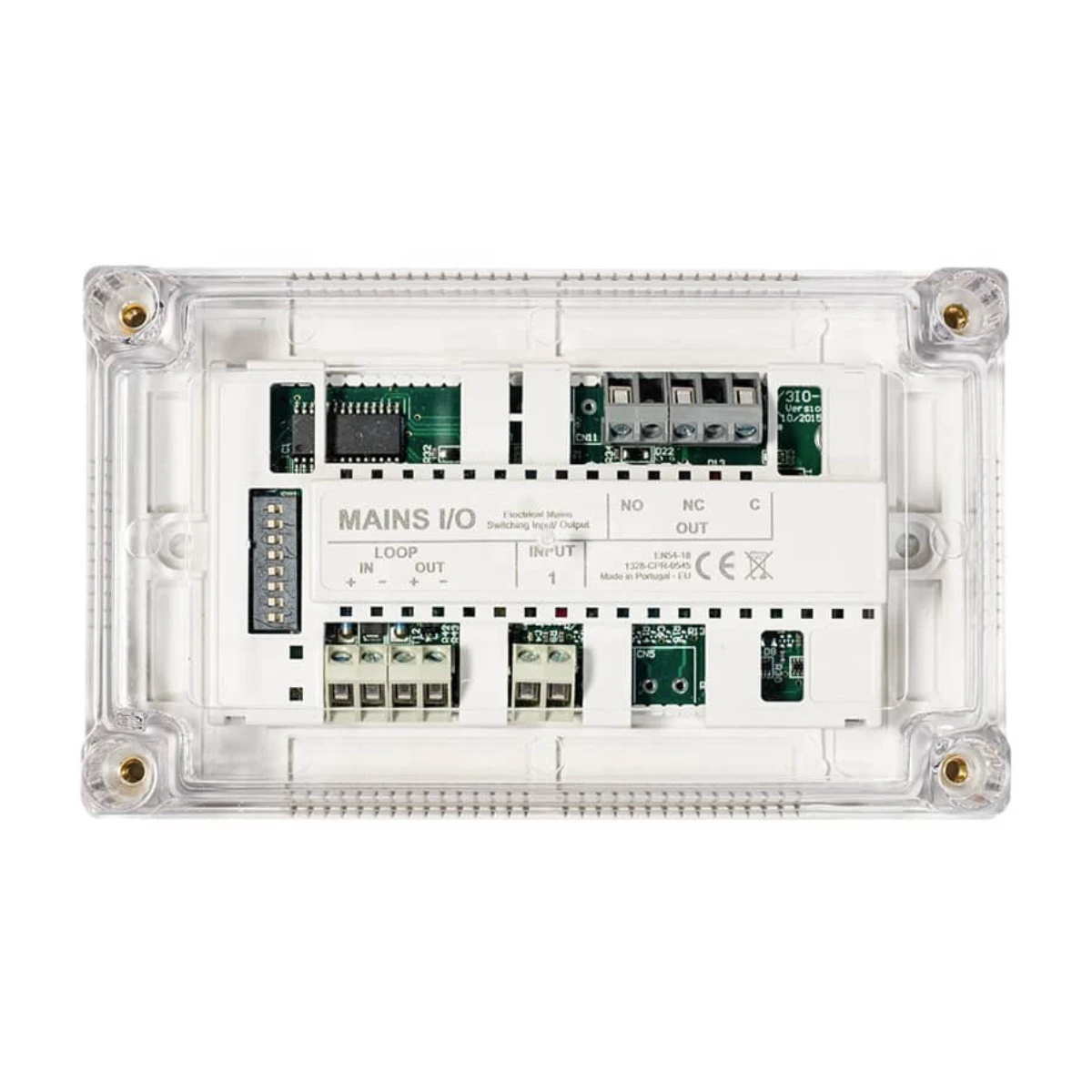

Global Fire MAINSI/O Addressable Interface - Mains

The MAINS I/O modules are fully monitored, loop-powered devices designed to interface third-party equipment with a fire alarm control panel using normally open, dry contact connections.

The input connection is continuously monitored for fault conditions, including open and short circuits, as well as alarm activation. These modules allow external systems to be supervised by the fire alarm system, such as sprinkler flow switches to indicate activation or extinguishing agent level monitoring in gas suppression systems.

Each module incorporates a loop short-circuit isolator and a voltage-free, single-pole changeover relay rated for mains operation. The output relay is powered directly from the detection loop, eliminating the need for an external 24V DC power supply. Relay activation is indicated by an onboard red LED for clear status confirmation.

• Connection to input is monitored for fault (open or short circuit) and Alarm conditions

• Used to monitor contacts of an external system interfaced to the Fire Alarm System e.g. Flow Switch in a sprinkler system

• Voltage free single pole change over mains rated output (powered directly from detection loop)

• 8-way DIL switch is provided to configure the module's address (set in range 1 - 125)

• Activation Mode, Delayed Input Alarm Activation and Output Delayed Activation programmable functions

• Fast activation response

• 5 Status LEDs

• Module features an integral short-circuit loop isolator

• Loop powered

• Low power consumption
