Eaton xDetect Mini Addressable CIE Fire Alarm Panel (1-2 Loops)

The Eaton xDetect Mini Addressable CIE Fire Alarm Panel is a compact addressable fire alarm control panel designed for 1 to 2 loop installations. It forms part of Eaton’s wider xDetect family and provides a scalable control solution for buildings where performance, usability and space-saving design are important.

The panel features a 7” colour touchscreen with a familiar, high-contrast interface to support day-to-day operation, commissioning and maintenance. It is designed to reduce on-site installation complexity, using colour coded modular cards, local status LEDs and a modular architecture that allows the system to adapt as building requirements change.

Each xDetect Mini is supplied with 1 gateway card and 1 loop 1L Protocol 800 card pre-fitted. The panel supports up to 200 addressable points per loop, up to 400 addressable points per CIE and up to 256 zones per CIE. A 32 zonal indicator is available as an optional add-on where zone indication is required.

The xDetect Mini supports a maximum loop length of 2km and a maximum load of 600mA per loop. Its fault tolerant ring network design includes built-in isolators, helping prevent a single fault from disrupting system communication.

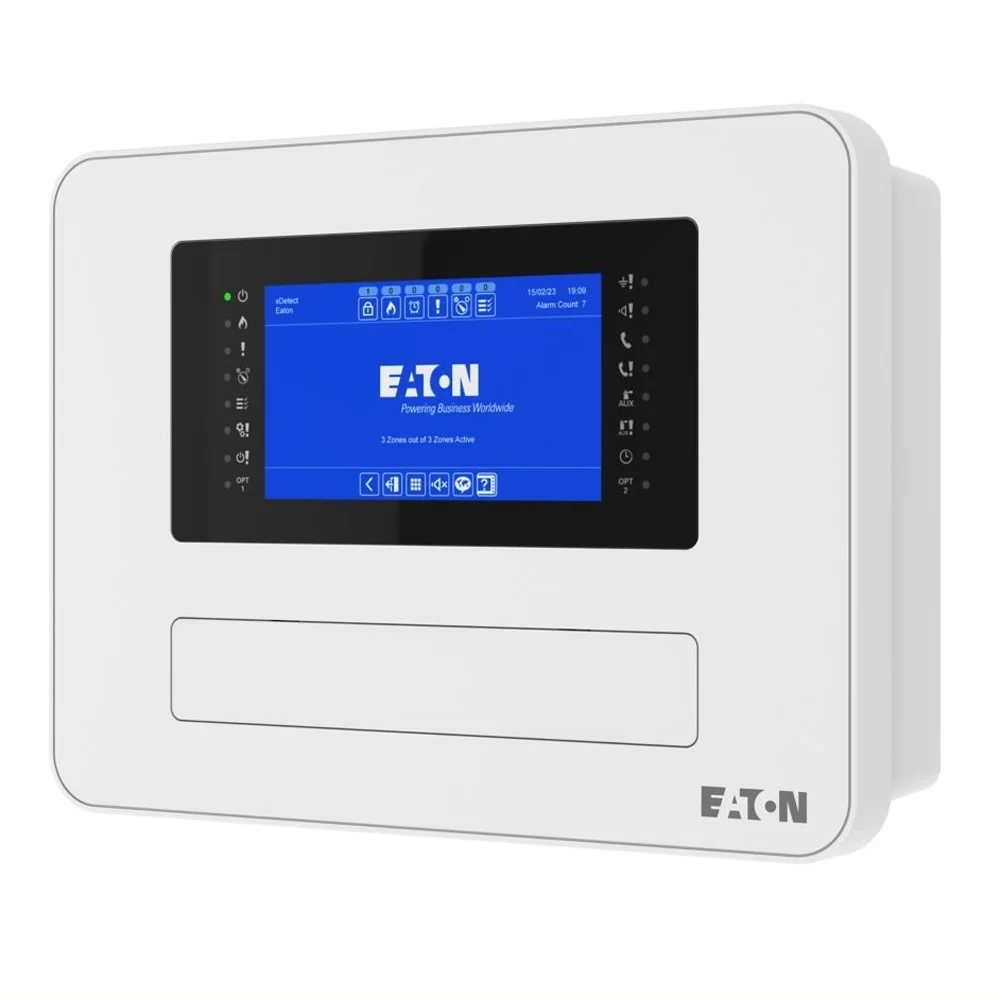

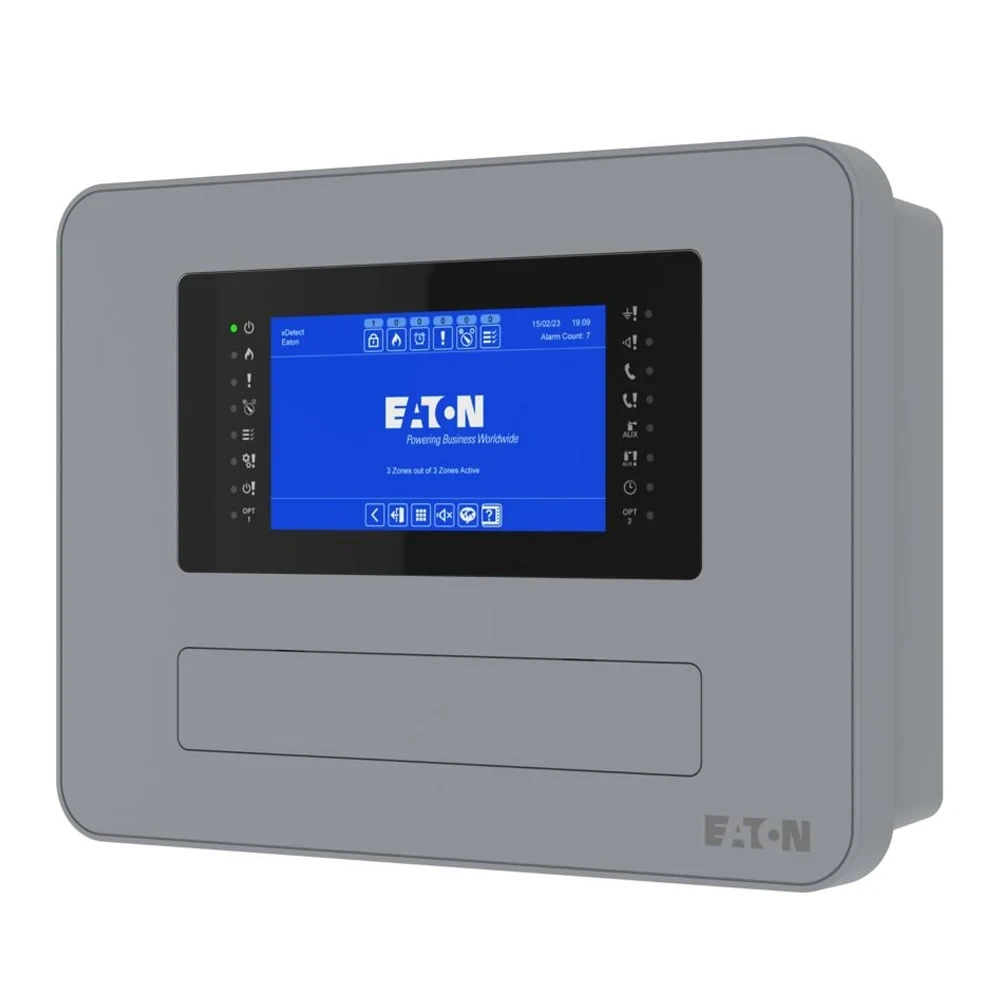

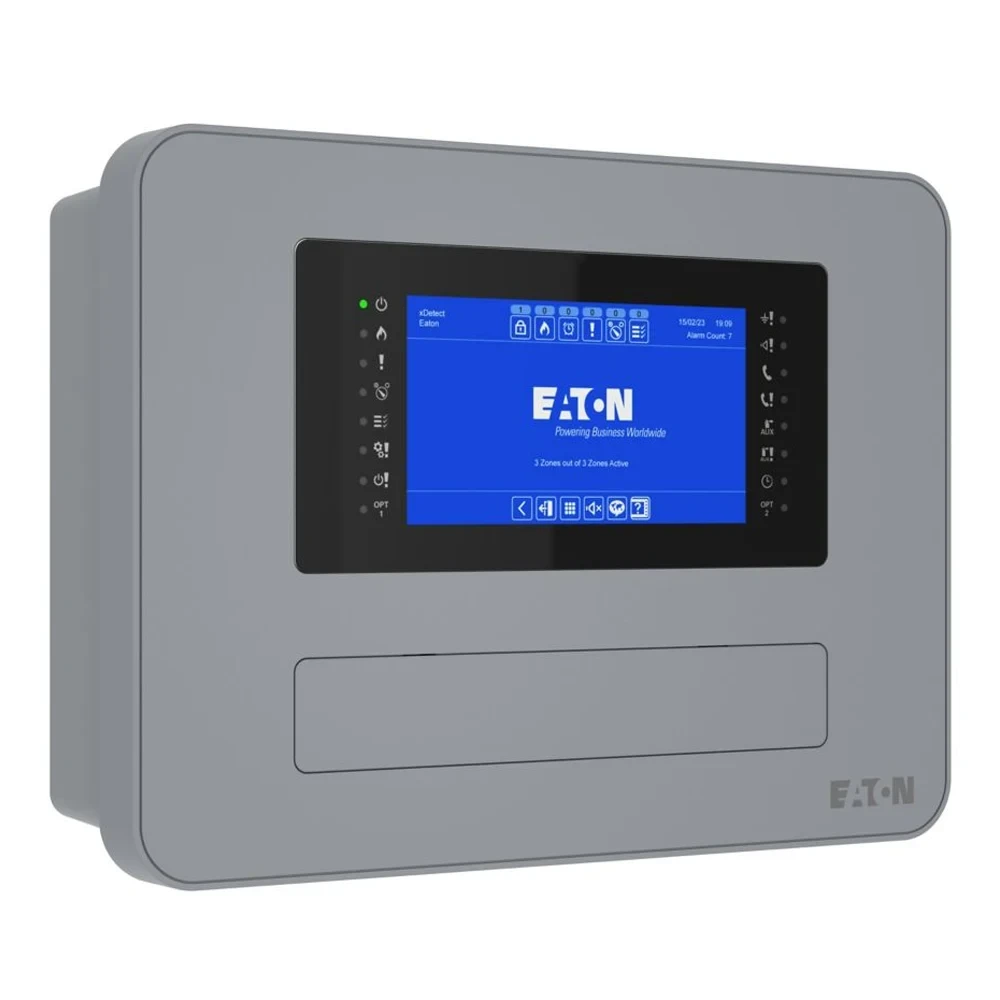

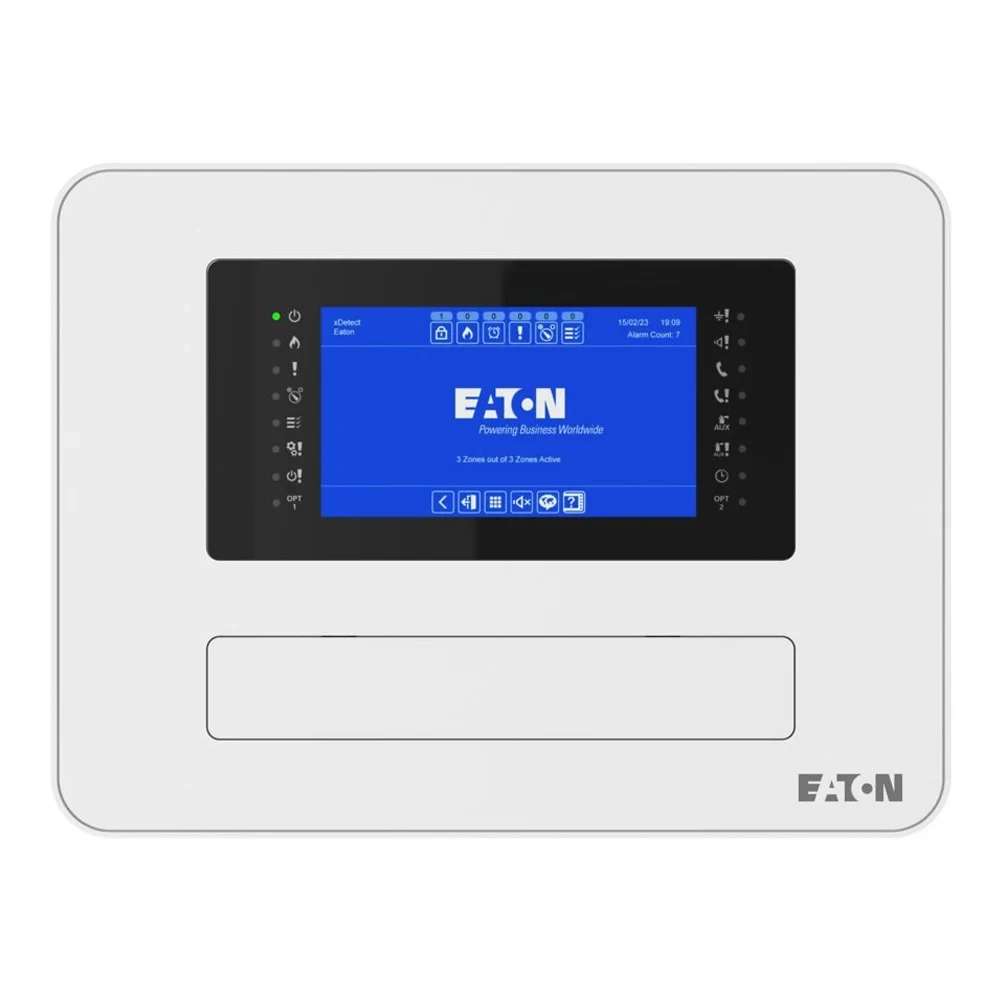

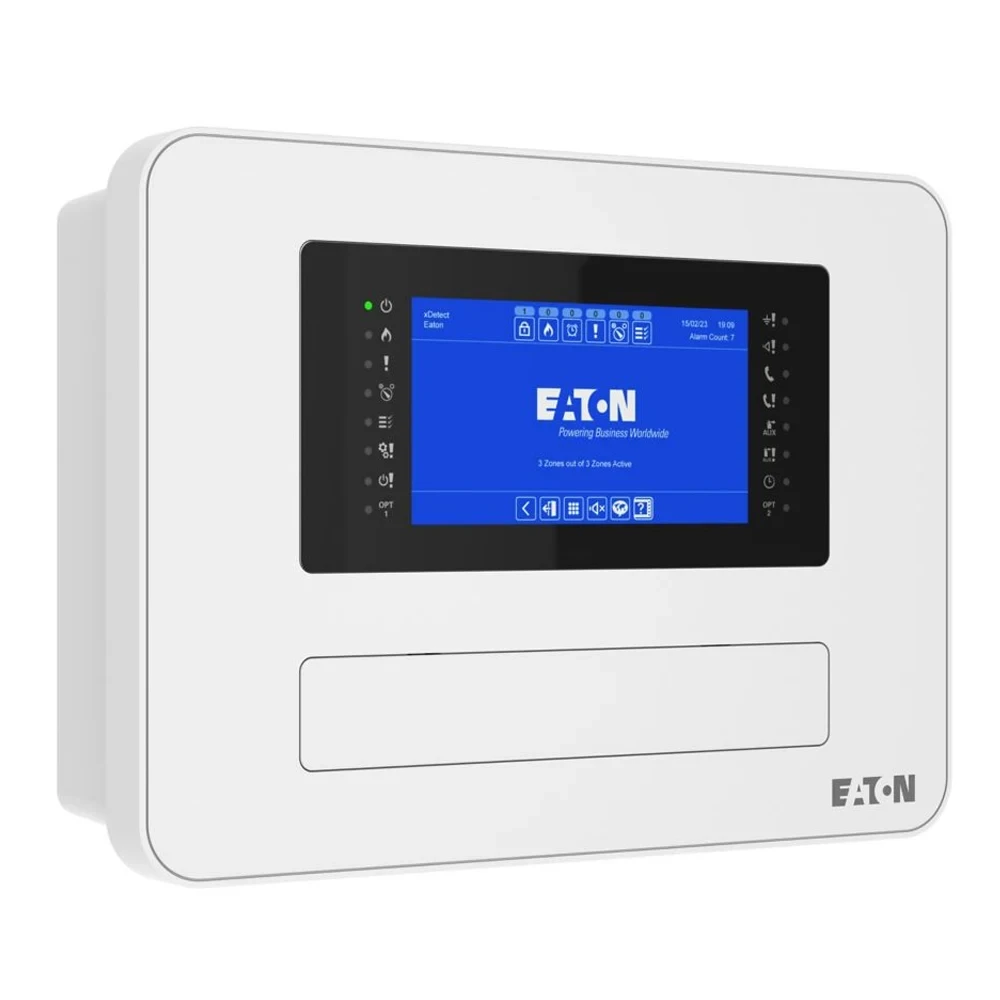

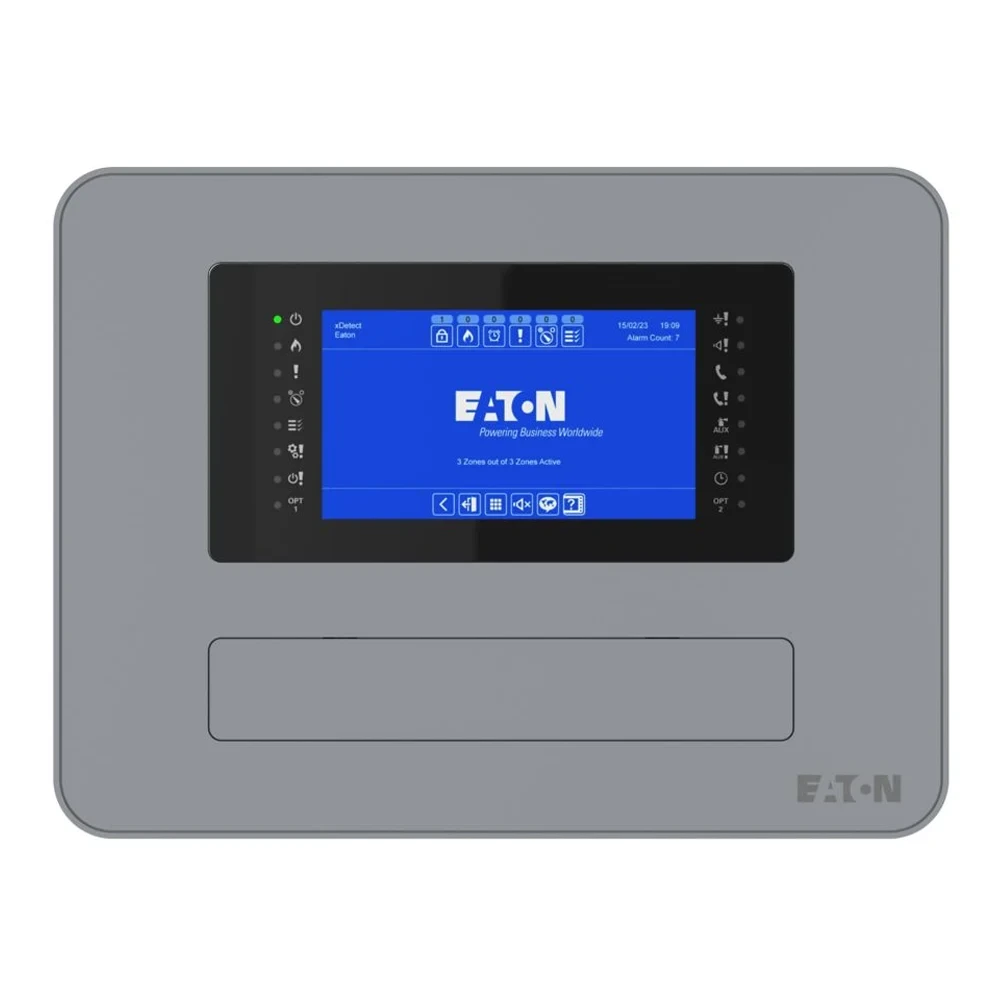

Approved to EN54-2 and EN54-4, the panel is suitable for addressable fire alarm installations where recognised fire detection standards, flexible expansion and a compact control panel format are required. It is available in grey or white enclosure options.

• Compact modern addressable fire alarm panel

• Suitable for 1 to 2 loop systems

• 7” colour touchscreen interface

• Up to 200 addressable points per loop

• Up to 400 addressable points per CIE

• Up to 256 zones per CIE

• 600mA maximum current per loop

• EN54-2 and EN54-4 approved

• Available in grey or white enclosure options
