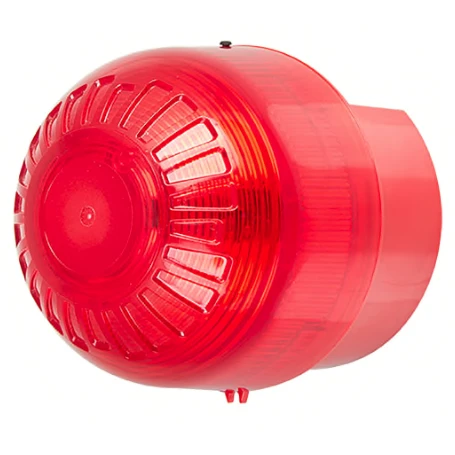

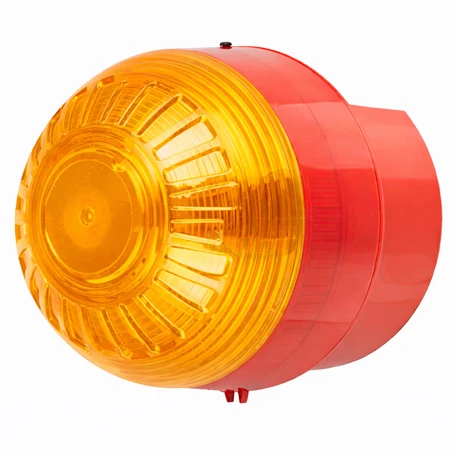

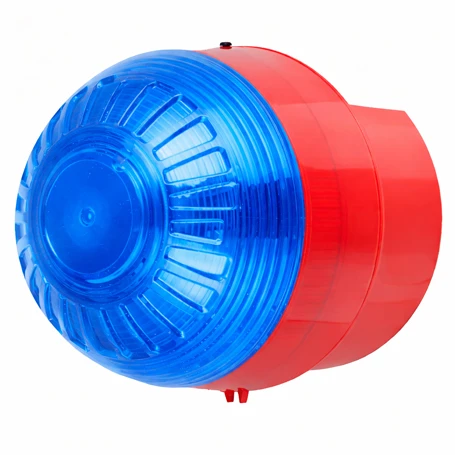

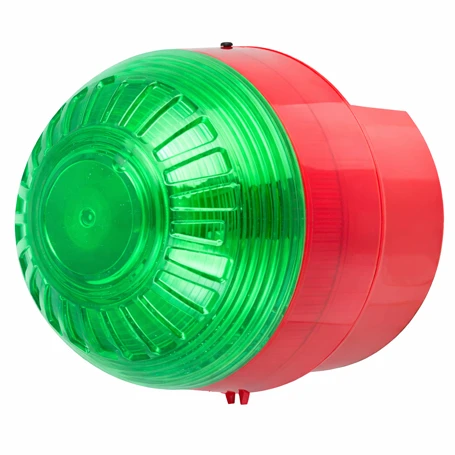

The C-TEC Moflash EX Intrinsically Safe Sounder Beacon is a combined audible and visual alarm device designed for use in potentially explosive atmospheres where intrinsically safe signalling is required.
This surface-mounted unit provides a powerful audible output of up to 105 dB(A) alongside a high-output beacon, ensuring clear alarm indication in hazardous environments. It supports two-stage sounder and beacon operation and offers a wide selection of alarm tones via dip-switch configuration, allowing the device to be tailored to site requirements.
Housed in a flame-retardant polycarbonate enclosure and rated to IP66, the sounder beacon is suitable for both indoor and outdoor installations. The unit must be installed as part of an intrinsically safe circuit and used in conjunction with an approved zener barrier or galvanic isolator.
Intrinsically safe combined sounder and beacon for hazardous areas
High-output 105 dB(A) audible alarm
Two-stage sounder and beacon operation
32 dip-switch selectable alarm tones
Surface-mounted design
Flame-retardant polycarbonate housing
IP66 rated for dust and water ingress protection
Low alarm current of 33 mA
Requires use with an approved zener barrier or galvanic isolator
Available with multiple lens colour options
Specification | Details |
|---|---|
Product type | Intrinsically safe sounder beacon |
Available model numbers | IS-SB-02-01 (Amber)IS-SB-02-02 (Red)IS-SB-02-03 (Blue)IS-SB-02-04 (Green)IS-SB-02-05 (White) |
Mounting | Surface mount |
Sound output | 105 dB(A) |
Alarm stages | Two-stage sounder and beacon |
Number of tones | 32 selectable via dip switch |
Alarm current | 33 mA |
Ingress protection | IP66 |
Housing material | Flame-retardant polycarbonate |
Lens material | Polycarbonate |
Hazardous area compliance | Intrinsically safe |
Standards | EN 60079-0, EN 60079-11 |
Circuit requirement | Approved zener barrier or galvanic isolator required |
The C-TEC Moflash EX Intrinsically Safe Sounder Beacon is a combined audible and visual alarm device designed for use in potentially explosive atmospheres where intrinsically safe signalling is required.
This surface-mounted unit provides a powerful audible output of up to 105 dB(A) alongside a high-output beacon, ensuring clear alarm indication in hazardous environments. It supports two-stage sounder and beacon operation and offers a wide selection of alarm tones via dip-switch configuration, allowing the device to be tailored to site requirements.
Housed in a flame-retardant polycarbonate enclosure and rated to IP66, the sounder beacon is suitable for both indoor and outdoor installations. The unit must be installed as part of an intrinsically safe circuit and used in conjunction with an approved zener barrier or galvanic isolator.
Intrinsically safe combined sounder and beacon for hazardous areas
High-output 105 dB(A) audible alarm
Two-stage sounder and beacon operation
32 dip-switch selectable alarm tones
Surface-mounted design
Flame-retardant polycarbonate housing
IP66 rated for dust and water ingress protection
Low alarm current of 33 mA
Requires use with an approved zener barrier or galvanic isolator
Available with multiple lens colour options
Specification | Details |
|---|---|
Product type | Intrinsically safe sounder beacon |
Available model numbers | IS-SB-02-01 (Amber)IS-SB-02-02 (Red)IS-SB-02-03 (Blue)IS-SB-02-04 (Green)IS-SB-02-05 (White) |
Mounting | Surface mount |
Sound output | 105 dB(A) |
Alarm stages | Two-stage sounder and beacon |
Number of tones | 32 selectable via dip switch |
Alarm current | 33 mA |
Ingress protection | IP66 |
Housing material | Flame-retardant polycarbonate |
Lens material | Polycarbonate |
Hazardous area compliance | Intrinsically safe |
Standards | EN 60079-0, EN 60079-11 |
Circuit requirement | Approved zener barrier or galvanic isolator required |
