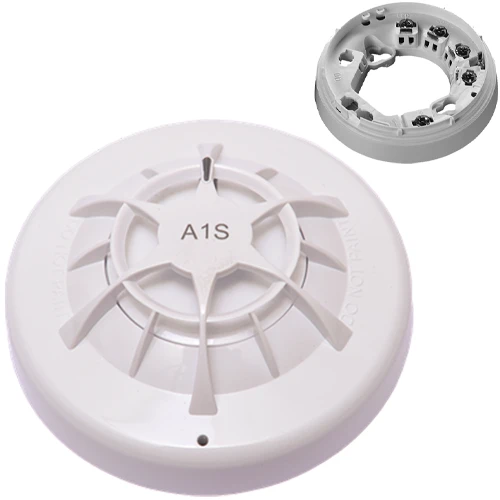

Apollo ORB-HT-11166-APO Orbis A1S Conventional Heat Detector w/ Diode Base

Name: Apollo ORB-HT-11166-APO Orbis A1S Conventional Heat Detector w/ Diode Base
Brand: Apollo
Price: 18.42 GBP
Availability: InStock

Code: FDS230/002

£18.42

INC VAT

Code: FDS230/002

In stock
Typically dispatched in 1-2 working days

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

The Apollo ORB-HT-11166-APO Orbis A1S Conventional Heat Detector is designed for reliable detection of fast-flaming fires in a wide range of commercial and industrial environments.

Using a single thermistor sensor, the detector continuously monitors air temperature and produces a voltage output proportional to external conditions.

This enables accurate detection of rapid rises in heat associated with fire while reducing the likelihood of false alarms from gradual temperature changes.

Supplied complete with a diode base for secure circuit integrity, the Orbis A1S offers a cost-effective and robust solution for small to medium-sized buildings.

Conventional A1S heat detector with diode base
Uses a single thermistor for precise temperature monitoring
Designed for detecting fast-burning, flaming fires
Suitable for hotels, guest houses, retail, restaurants, car parks, and general commercial premises
Polycarbonate housing with compact, lightweight design (70g)
Simple installation and maintenance
360° LED indicator for clear alarm visibility
Certified to BOSEC, CPR, and LPCB approvals
Backed by Apollo’s reputation for quality and reliability

Category	Specification	Details
General	Warranty	10 years
	Applications	B&Bs / guest houses, car parks / loading bays, dusty environments, restaurants, retail, small to medium buildings
	Fire Type	Fast burning, flaming fires
	Heat Classification	A1S
Mechanical	Colour	White
	Weight	70 g
	Housing Material	Polycarbonate
	Product Length	36 mm / 1.42 in
	Product Diameter	97 mm / 3.82 in
Conformance	Approvals	BOSEC, CPR, LPCB
Electrical	Maximum Power-up Time	< 20 seconds
	Quiescent Current	95 μA (tested at 24V DC)
	Polarity	L1 & L2 are polarity sensitive
	Minimum Detector Active Voltage	6 V
	Holding Voltage	5 to 33 V
	Minimum Voltage to Light Alarm LED	5 V
	Alarm Reset Time	1 second
	Alarm Load	600 Ω
Environmental	Humidity	0% to 98% RH (no condensation or icing)
	Operating Temperature	-40°C to +70°C / -40°F to +158°F
	Storage Temperature	-40°C to +70°C
	IP Rating	IP23D

Apollo ORB-HT-11166-APO Datasheet

Click here to download

Overview

Features

Technical Data

Category	Specification	Details
General	Warranty	10 years
	Applications	B&Bs / guest houses, car parks / loading bays, dusty environments, restaurants, retail, small to medium buildings
	Fire Type	Fast burning, flaming fires
	Heat Classification	A1S
Mechanical	Colour	White
	Weight	70 g
	Housing Material	Polycarbonate
	Product Length	36 mm / 1.42 in
	Product Diameter	97 mm / 3.82 in
Conformance	Approvals	BOSEC, CPR, LPCB
Electrical	Maximum Power-up Time	< 20 seconds
	Quiescent Current	95 μA (tested at 24V DC)
	Polarity	L1 & L2 are polarity sensitive
	Minimum Detector Active Voltage	6 V
	Holding Voltage	5 to 33 V
	Minimum Voltage to Light Alarm LED	5 V
	Alarm Reset Time	1 second
	Alarm Load	600 Ω
Environmental	Humidity	0% to 98% RH (no condensation or icing)
	Operating Temperature	-40°C to +70°C / -40°F to +158°F
	Storage Temperature	-40°C to +70°C
	IP Rating	IP23D
