Code: FDS230/003
INC VAT
Code: FDS230/003

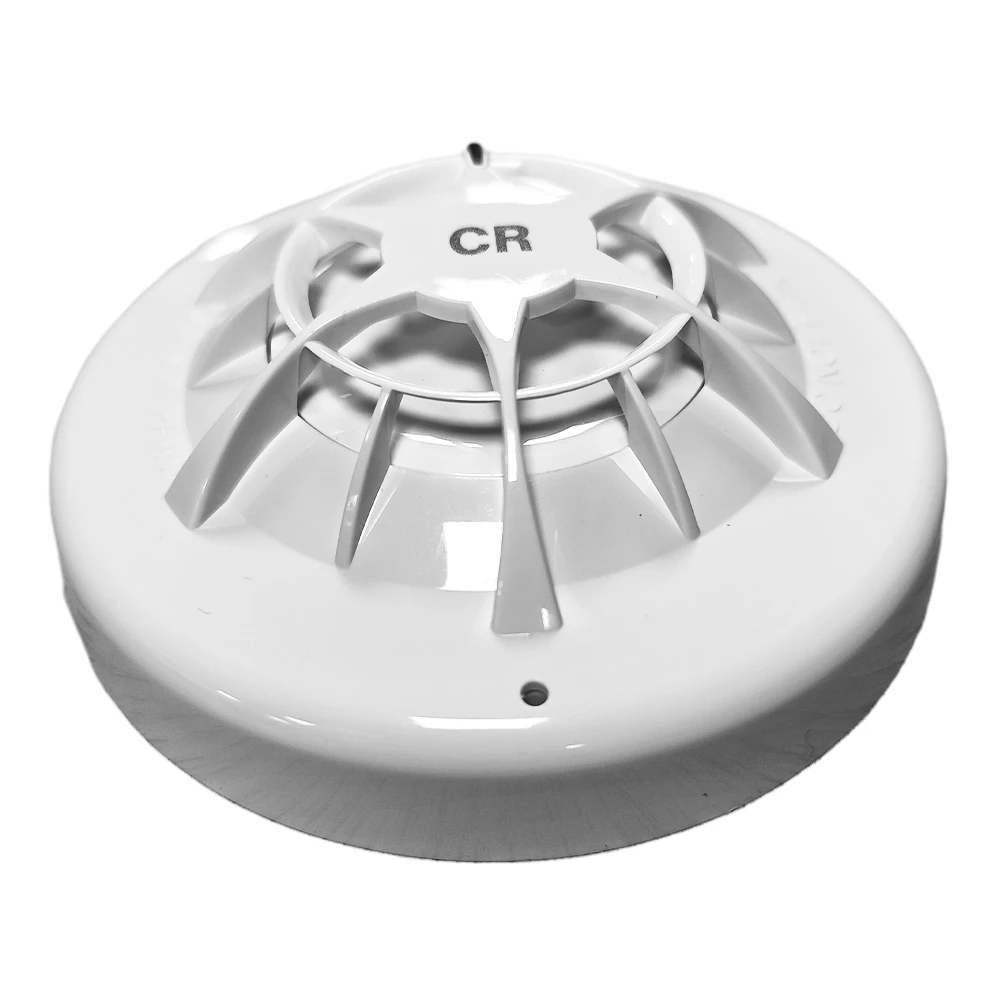

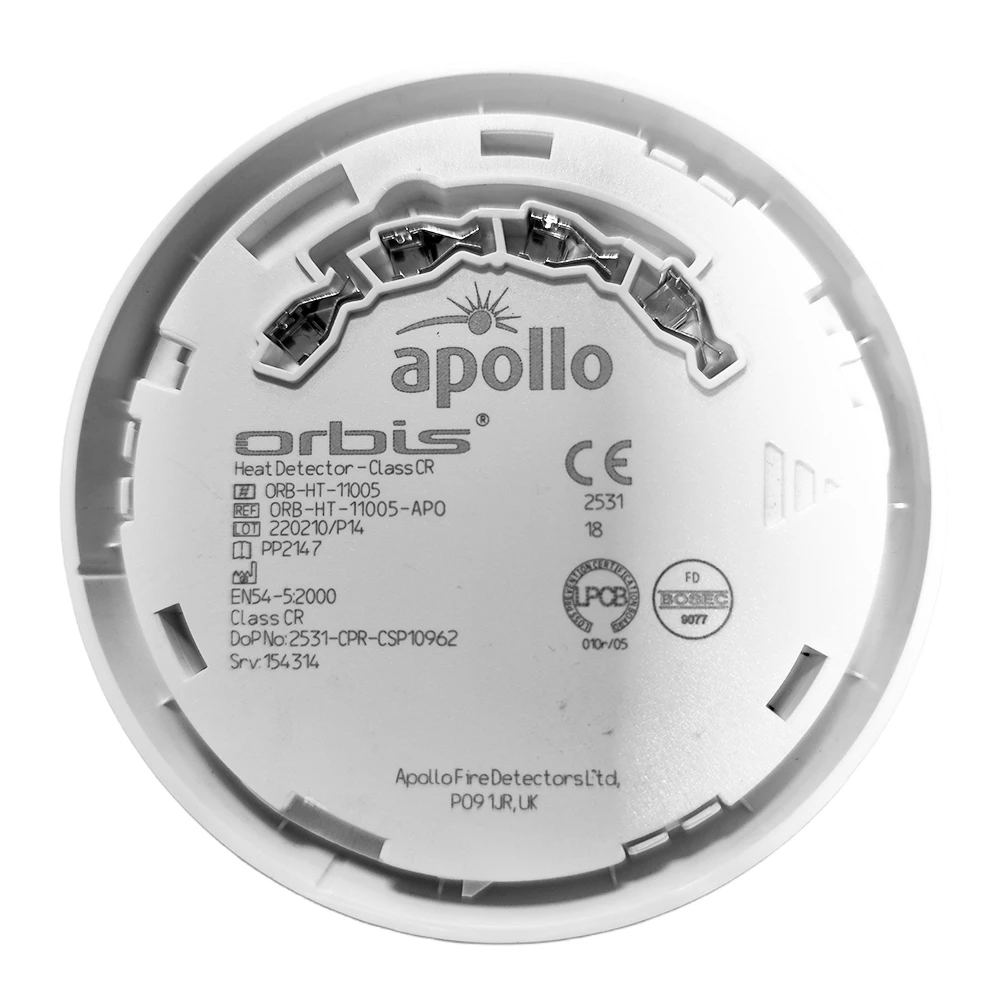

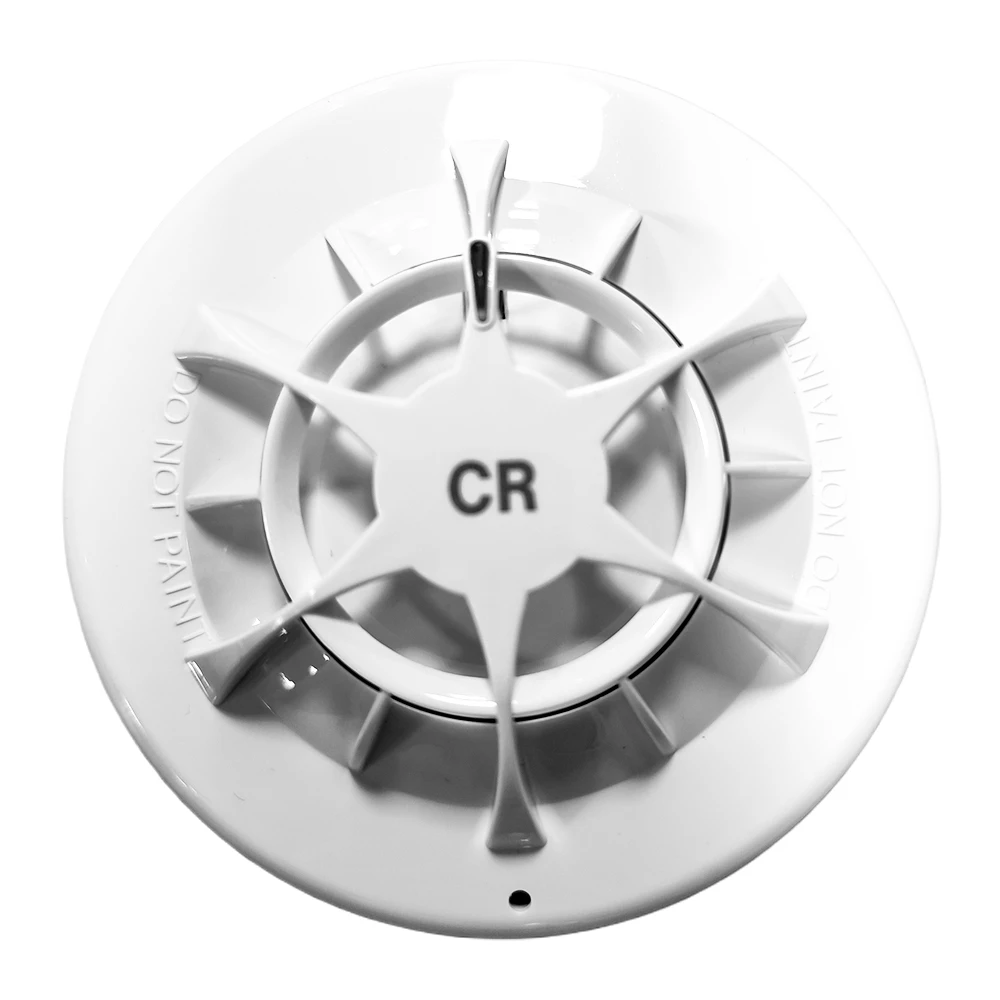

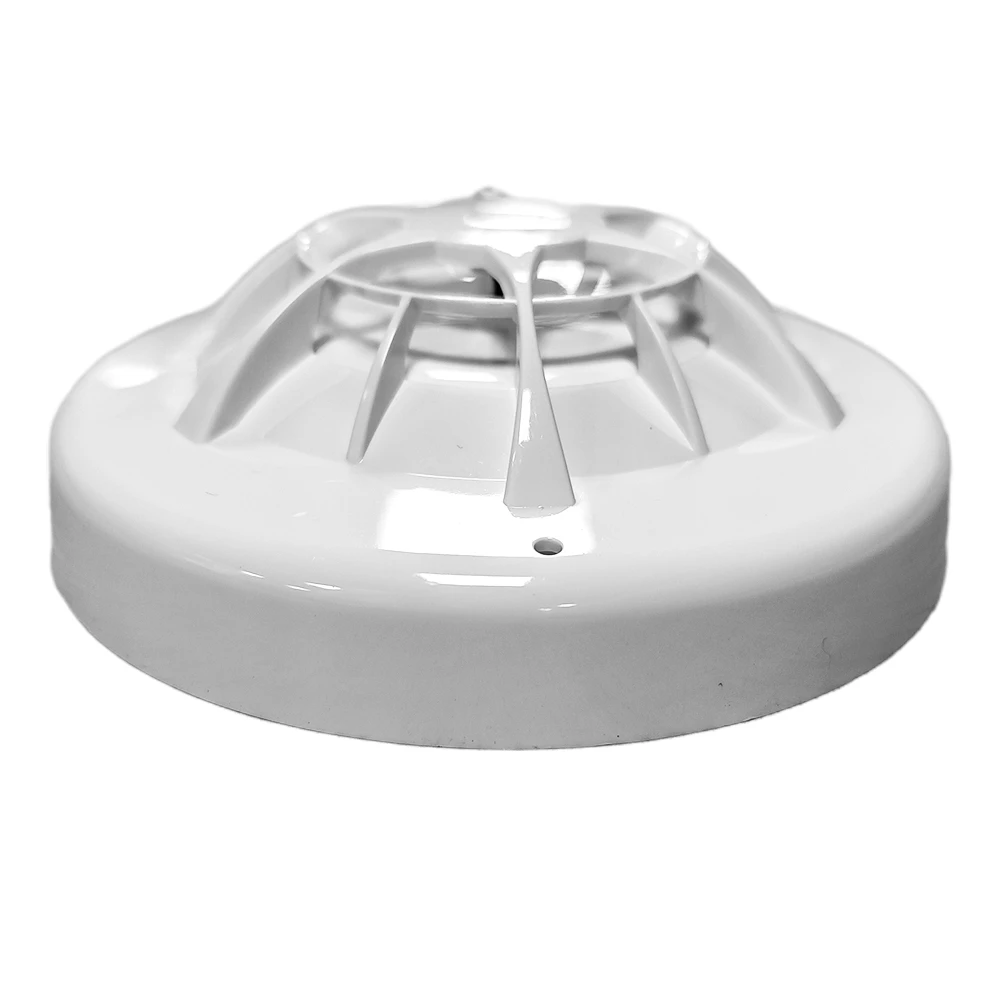

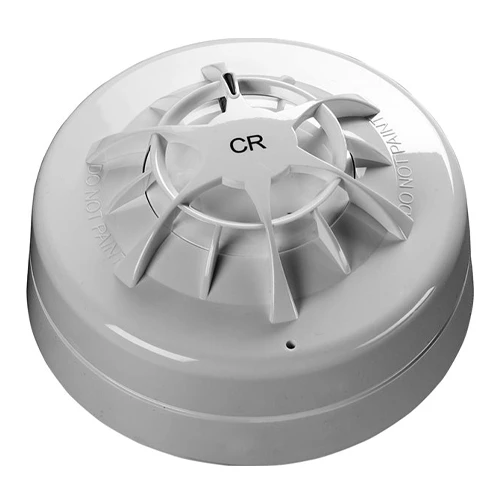

The Apollo ORB-HT-11005-APO is a conventional heat detector from the Orbis range, designed for reliable fire detection in environments where smoke detection may not be suitable.
It uses a single thermistor to monitor temperature and produces a voltage output that corresponds to the surrounding air temperature.
This CR (Class Rate-of-Rise) model responds to a rapid increase in temperature, making it ideal for areas where sudden heat changes may indicate fire.
The detector is suitable for use in dusty or smoky environments such as kitchens, boiler rooms, or workshops where optical detection may give false alarms.
With its advanced design and robust performance, the Orbis CR heat detector ensures dependable fire detection in demanding conditions.
Product code: ORB-HT-11005-APO
Conventional rate-of-rise heat detector
Uses single thermistor temperature sensing
Responds to rapid temperature increases
Ideal for dusty or smoke-prone environments
Suitable for kitchens, garages, and workshops
Category | Specification |
---|---|
General | |
Warranty | 10 year |
Applications | B&Bs/guest houses, Car parks/loading bays, Dusty environments, Restaurants, Retail, Small to medium buildings |
Fire Type | Fast burning, flaming fires |
Performance | |
Heat Classification | CR (Rate-of-Rise) |
Mechanical | |
Colour | White |
Weight | 70g |
Housing Material | Polycarbonate |
Product Length | 36mm (1.42in) |
Product Diameter | 97mm (3.82in) |
Conformance | |
Approvals | BOSEC, CPR, LPCB |
Electrical | |
Maximum Power-up Time | <20 seconds |
Quiescent Current | 95μA |
Quiescent Current Tested At | 24V dc |
Polarity | L1 & L2 are polarity sensitive |
Minimum ‘Detector Active’ Voltage | 6V |
Holding Voltage | 5 to 33V |
Holding Voltage (min) | 5V |
Holding Voltage (max) | 33V |
Minimum Voltage to Light Alarm LED | 5V |
Alarm Reset Time | 1 second |
Alarm Load | 600Ω |
Environmental | |
Humidity Range | 0% to 98% RH (no condensation or icing) |
Humidity (min) | 0% RH |
Humidity (max) | 98% RH |
Operating Temperature (°C) | -40 to 70°C |
Operating Temperature (°F) | -40 to 158°F |
Operating Temp (min) | -40°C / -40°F |
Operating Temp (max) | 70°C / 158°F |
Storage Temperature | -40 to 70°C |
Storage Temp (min) | -40°C |
Storage Temp (max) | 70°C |
IP Rating | IP23D |
