Apollo 58002-351APO VID with XP95/Discovery Base

Name: Apollo 58002-351APO VID with XP95/Discovery Base
Brand: Apollo
Price: 59.22 GBP
Availability: InStock

Code: FDS002/159

£59.22

INC VAT

Code: FDS002/159

In stock
Typically dispatched in 1-2 working days

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

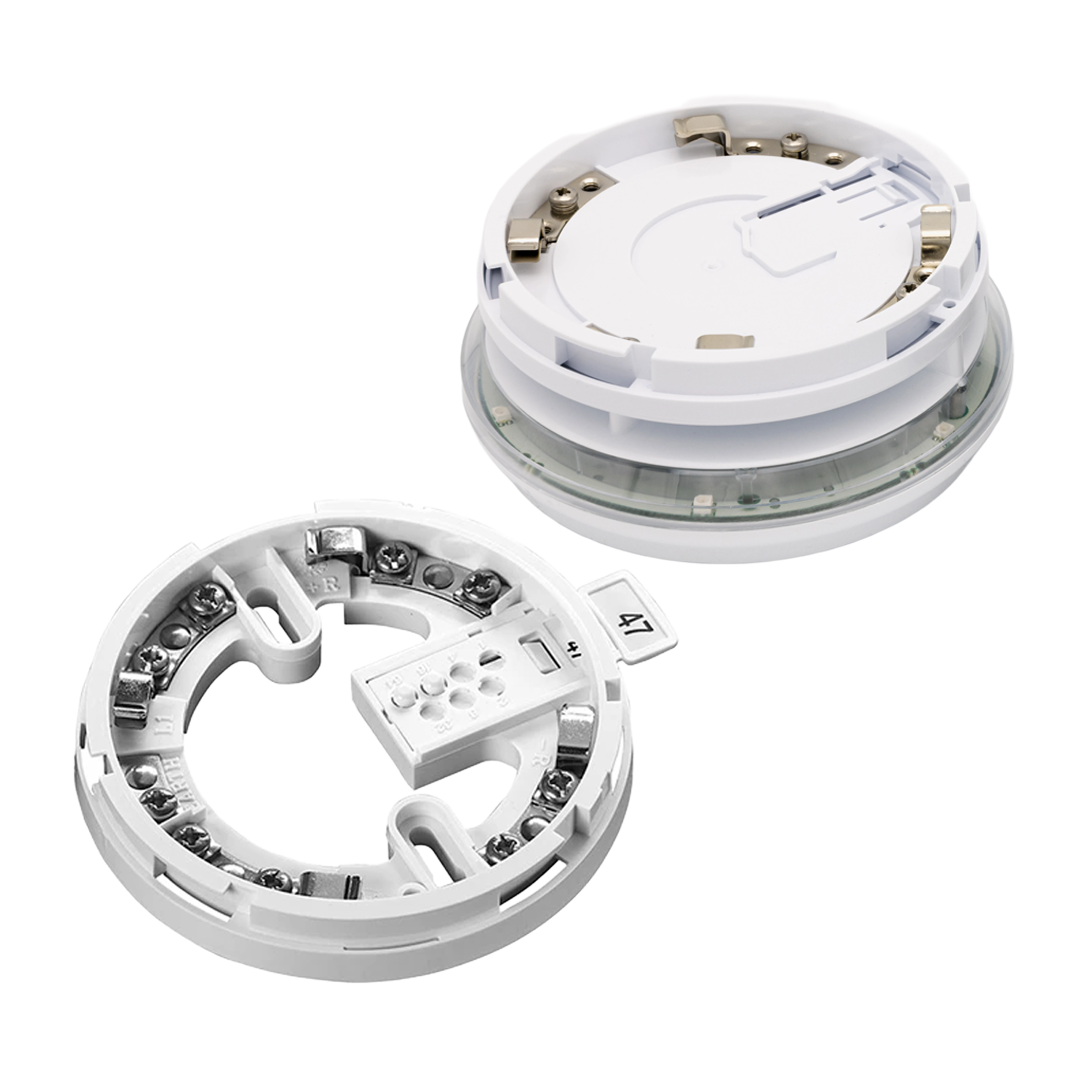

This bundle combines the Apollo 58002-351APO Discovery Base Sounder Visual Indicator (Red Flash) with the 45681-210APO XPERT 7 Intelligent Mounting Base.

The result is a high-performance, installer-friendly module that delivers both audible and visual signals with easy installation and secure detector addressing.

The 58002-351APO is an addressable loop-powered base sounder featuring a red visual indicator (flashing LED), 15 tone pairs, 7 volume settings, and a built-in isolator.

It mounts directly onto an XPERT base using a simple twist-and-click fitting method.

The 45681-210APO base offers low-insertion-force installation, stainless steel contacts, universal XPERT addressing cards and a locking mechanism to prevent unauthorised detector removal.

It supports all XP95 and Discovery detectors.

Complete base module with sounder and visual indicator
Compatible with XP95 and Discovery systems
15 selectable tone pairs with 7 volume levels
Red flashing visual alarm indicator
Built-in isolator for improved loop reliability
Twist-and-click XPERT base for fast installation
XPERT addressing card system for easy setup
Secure locking feature prevents tampering
Durable polycarbonate housing with long service life

Category	58002-351APO (Base Sounder VID)	45681-210APO (XPERT 7 Base)
Electrical	Quiescent current: 0.7 mA Power-up surge: 0.7 mA Alarm current: 6.85 mA Supply voltage: 17–35 Vdc	Terminal functions: Loop in & out, double terminal Polarity: L1 & L2 insensitive
Mechanical	Colour: White Depth: 46 mm Diameter: 110 mm Weight: 198 g	Colour: White Material: Polycarbonate Depth: 16 mm Diameter: 100 mm Weight: 52 g
Environmental	Humidity: 0–95% (no condensation or icing)Operating temperature: –20 °C to 70 °C	—
General	—	Warranty: 10 years

Apollo 58002-351APO Datasheet	Click here to download
Apollo 45681-210APO Datasheet	Click here to download

Overview

Features

Technical Data

Category	58002-351APO (Base Sounder VID)	45681-210APO (XPERT 7 Base)
Electrical	Quiescent current: 0.7 mA Power-up surge: 0.7 mA Alarm current: 6.85 mA Supply voltage: 17–35 Vdc	Terminal functions: Loop in & out, double terminal Polarity: L1 & L2 insensitive
Mechanical	Colour: White Depth: 46 mm Diameter: 110 mm Weight: 198 g	Colour: White Material: Polycarbonate Depth: 16 mm Diameter: 100 mm Weight: 52 g
Environmental	Humidity: 0–95% (no condensation or icing)Operating temperature: –20 °C to 70 °C	—
General	—	Warranty: 10 years
