Apollo 55000-020APO Intelligent IR³ Flame Detector

Name: Apollo 55000-020APO Intelligent IR³ Flame Detector
Brand: Apollo
Availability: InStock

Code: FDS002/511

Call to place order

Code: FDS002/511

Multi-sensor detection
Contamination-tolerant
Loop-powered

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

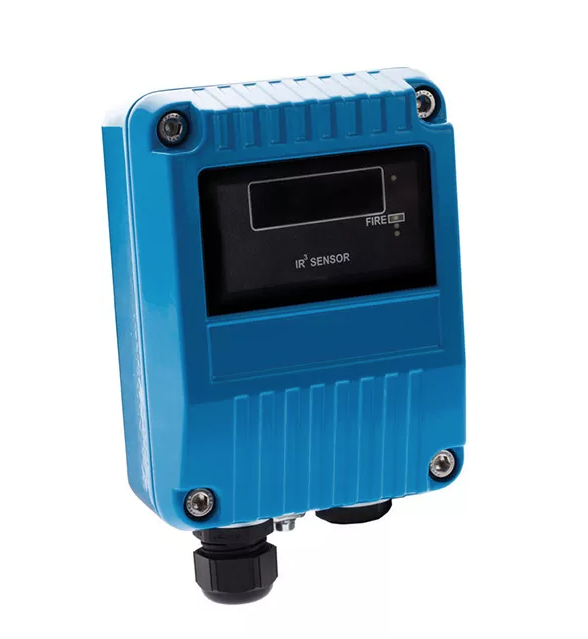

The Apollo Intelligent IR³ Flame Detector provides reliable protection in areas where open flames may occur. It detects low-frequency, flickering infra-red radiation emitted during combustion, including flames invisible to the naked eye, such as hydrogen fires.

The Apollo Intelligent IR³ Flame Detector combines advanced multi-sensor detection with practical reliability. Its three IR sensors monitor different wavelengths to accurately distinguish real flames from false sources, such as flickering sunlight. The detector remains effective even when its lens is partially covered by oil, dust, water vapor, or ice, ensuring reliable operation in challenging environments.

Fast and responsive, it can detect flames over 25 m away and is unaffected by draughts, convection currents, or environmental factors like fumes, steam, dust, and mist. Loop-powered design eliminates the need for an external power supply while supporting remote LED alarm indicators. Fully compatible with Apollo XP95 and Discovery digital protocols, it integrates seamlessly into existing fire detection systems.

Multi-sensor detection
Contamination-tolerant
Loop-powered
Digital protocol compatible

Product code:	55000-020APO
Description:	Apollo XP95 Flame Detector (IR3)
Dimensions:	W:108mm x L:142mm x D:82mm
Materials:	Die-cast zinc alloy
Colour:	Blue
Approvals:	CPR, LPCB
Operating Temperature:	-10ºC to +55ºC
Storage Temperature:	-20ºC to +65ºC
Relative Humidity:	0 - 95% no condensation or icing
Warranty:	3 year
Supply Voltage:	14-30 V dc
Quiescent Current:	2.2 mA
Maximum Power-up Time:	4 seconds
Remote LED Current:	Limited to 2 mA
IP Rating:	IP65
Weight:	2kg

Datasheet

Click here to download
